The Picture Guide to removing S4 TB/Dynamic Cham/UIM
I made this a while ago and I'd intended to do something more for it, but I don't remember what..

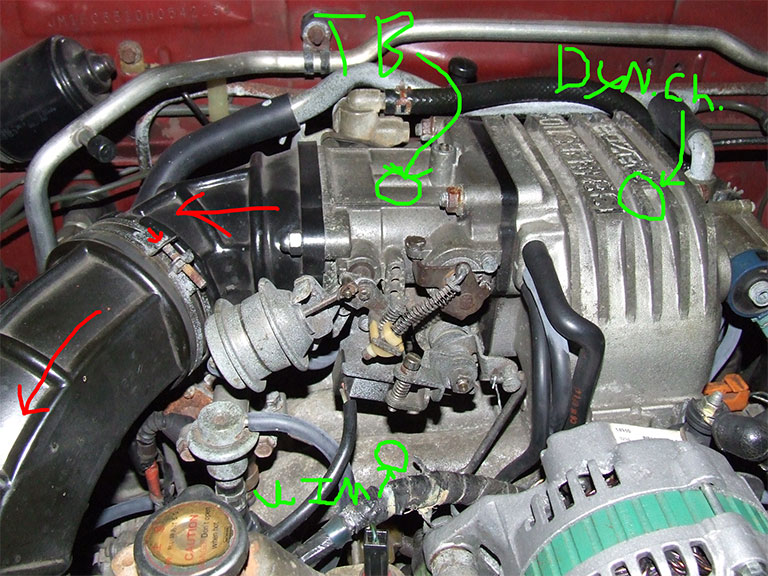

Anyway! This should be a pretty through picture guide of everything you have to unbolt or disconnect to remove the S4 Throttle Body, Dynamic Chamber and Upper Intake Manifold as a single unit. Intended mainly for those wanting to remove their primary fuel injectors [for cleaning] or those who want to replace their Pulsation Dampener [one way or another].
Enjoy! Let me know if I have missed something and I'll take a picture and add it.

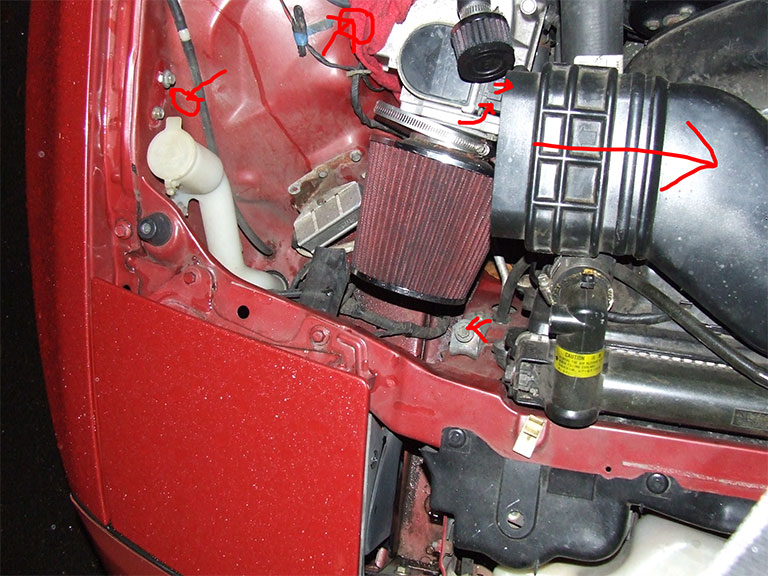

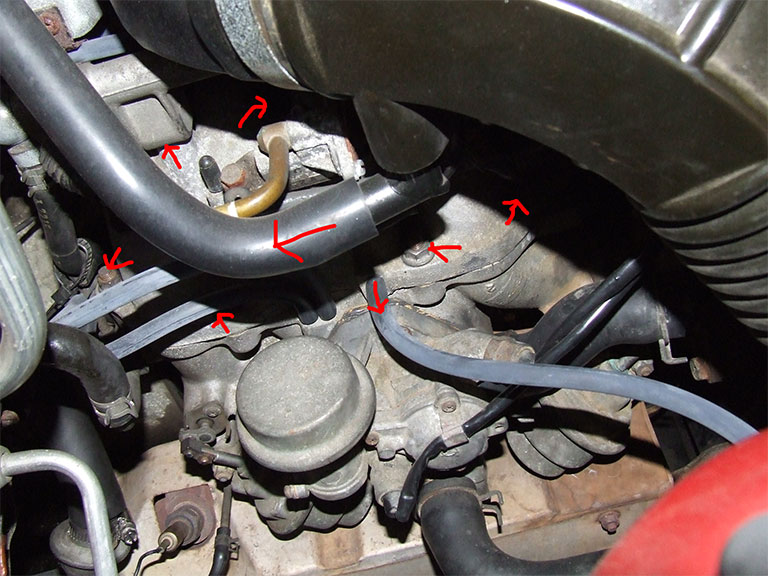

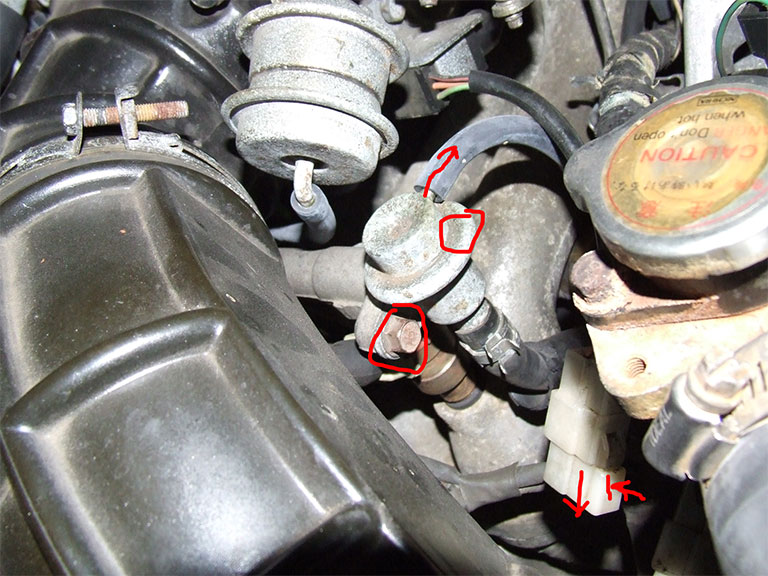

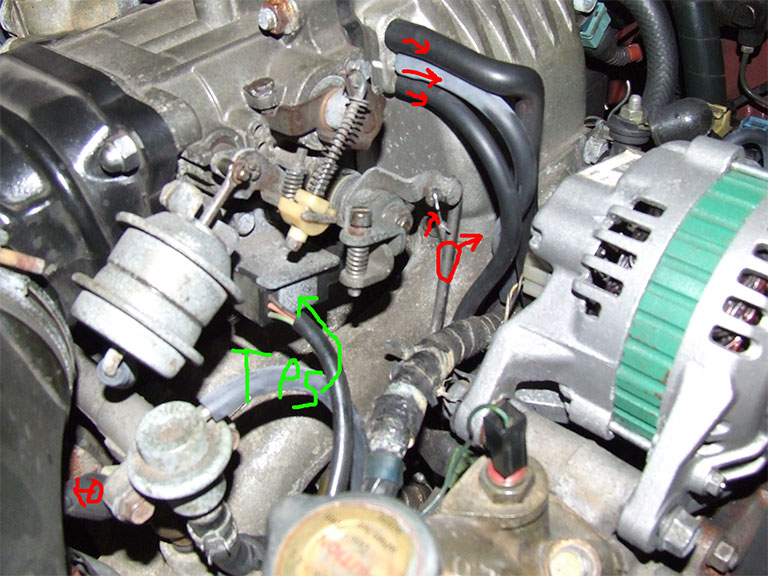

After following the pictures, you should be able to carefully lift up all three as a single unit.

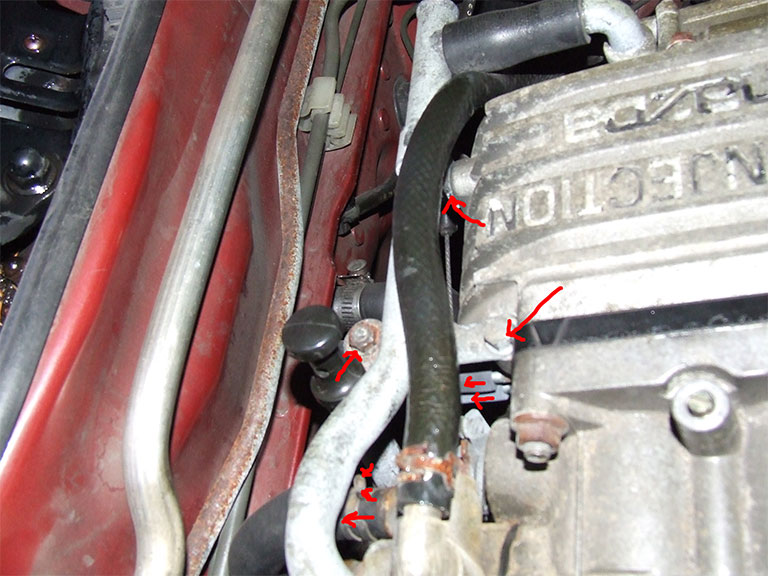

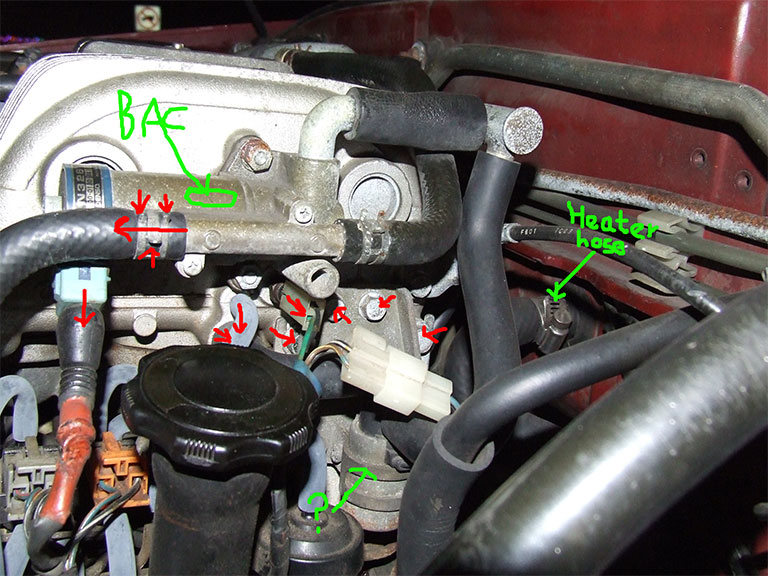

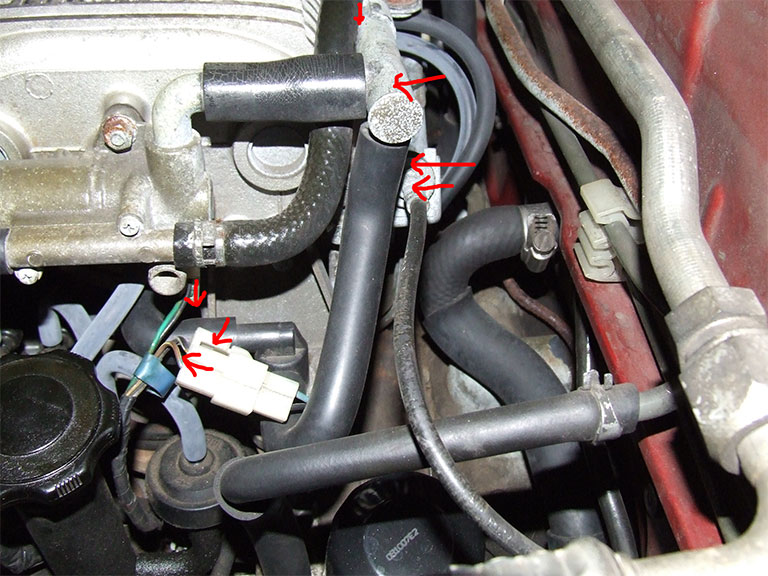

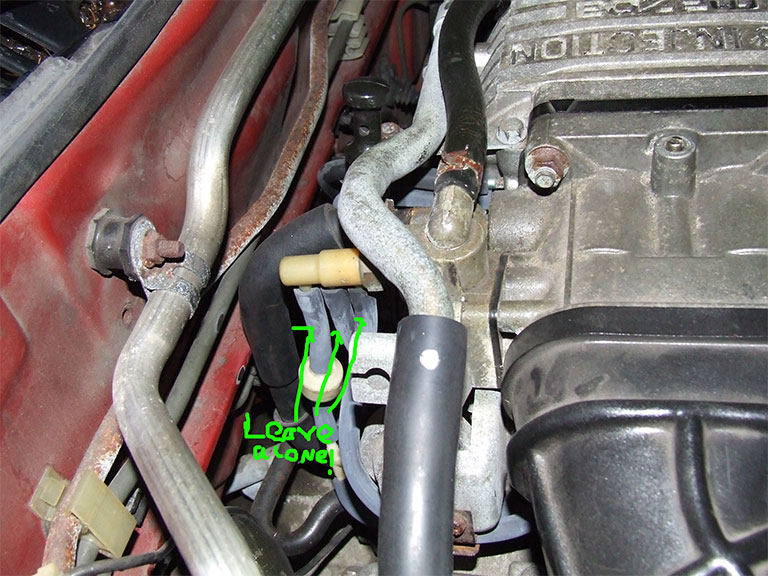

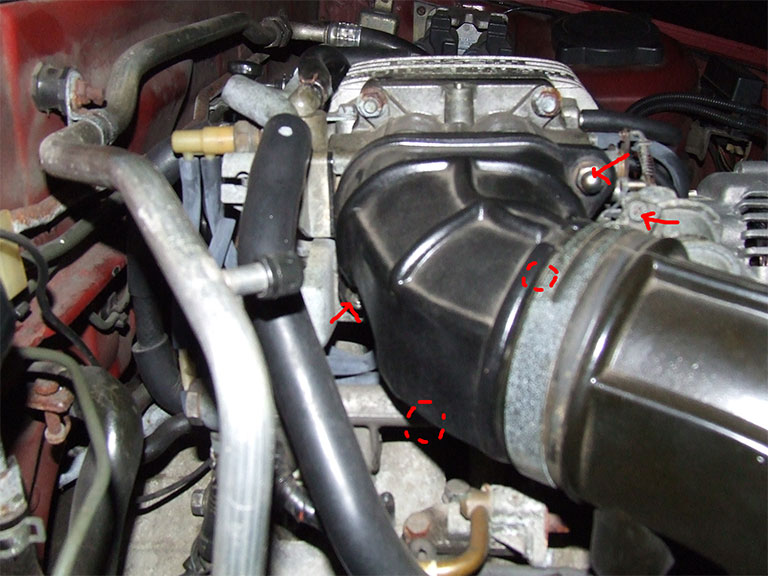

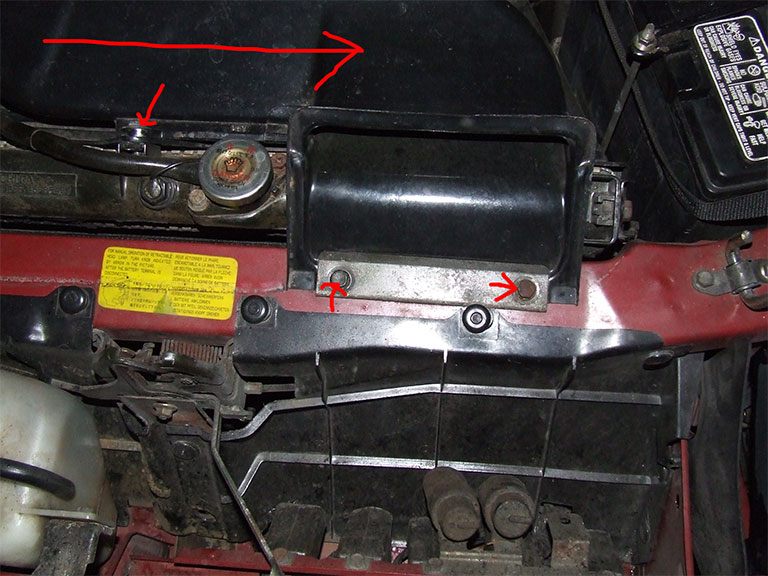

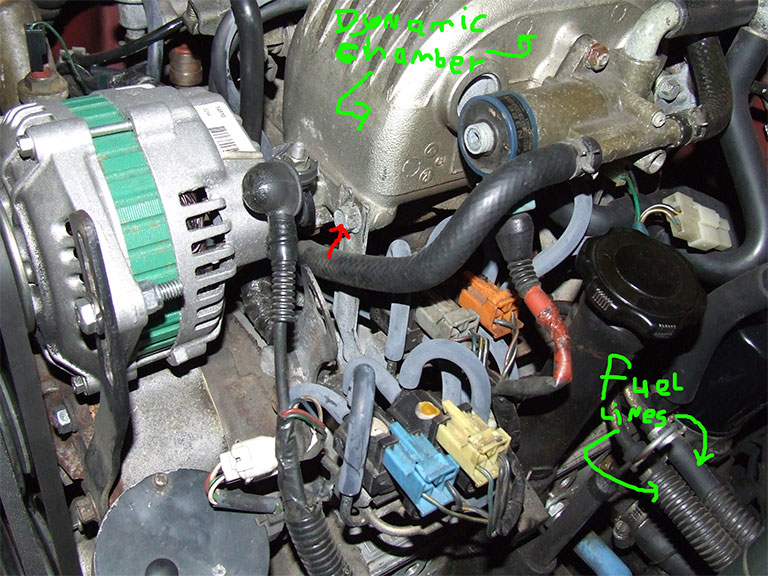

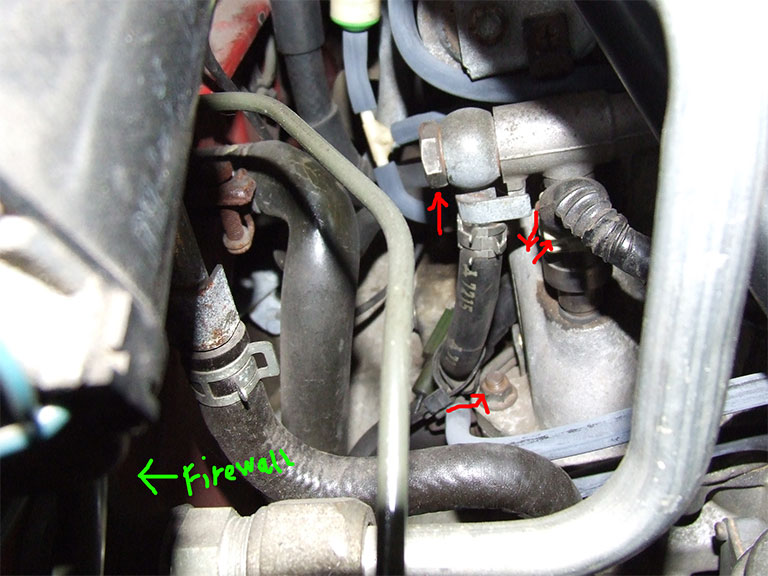

Green text and arrows are for Information ONLY! DO NOT remove/disconnect what they refer to
Red text and arrows are what you NEED TO remove/disconnect.
Anyway! This should be a pretty through picture guide of everything you have to unbolt or disconnect to remove the S4 Throttle Body, Dynamic Chamber and Upper Intake Manifold as a single unit. Intended mainly for those wanting to remove their primary fuel injectors [for cleaning] or those who want to replace their Pulsation Dampener [one way or another].
Enjoy! Let me know if I have missed something and I'll take a picture and add it.
After following the pictures, you should be able to carefully lift up all three as a single unit.
Green text and arrows are for Information ONLY! DO NOT remove/disconnect what they refer to
Red text and arrows are what you NEED TO remove/disconnect.
