pics Mazdaspeed radiator and e-fan install
08-28-02, 10:07 AM
#3
My cars louder than yours
Join Date: Oct 2001
Location: Augusta, GA
Posts: 1,969
Likes: 0
Received 0 Likes
on
0 Posts
I think yourset up is mint. Banzai is correct about the shroud, but i have never used one. On my 86Base i run the stock radiator with a GM fan (same as the "feiro fan") and have never ran into problems. The stock guage stays at or below 1/4 of the way up.
08-29-02, 05:02 PM
#6
completely wankelfied
Join Date: Aug 2002
Location: Bloomington IN
Posts: 195
Likes: 0
Received 0 Likes
on
0 Posts
Nice job, I use a first gen turbo eclpse radiator with two mitsu electric fans in my first gen. A friend if mine who helped with the install said it would never fit but I squeezed it in there, looks like a similar situation.
Trending Topics
08-29-02, 07:06 PM
#8
Rotary Freak
Join Date: May 2001
Location: Hampton Roads, VA
Posts: 2,340
Likes: 0
Received 0 Likes
on
0 Posts
By redusing rotating mass and load on the crankshaft, it allows your engine to rev faster and frees up a couple ponies. It only works that way, though, if the fan is hooked up to run thermostatically, i.e. only when needed. If you have the fan hooked up to run all the time, you can actually LOSE performance due to the added load on the alternator (which in turn loads the crank/e-shaft).
An added advantage is that the fan doesn't create a blockage to airflow across the engine bay. Again, this only works if the fan shuts off when not needed (typically cruising along on the highway).
It is usually better to have a shroud for the fan. I installed an e-fan from an 88 Fiero on mine, including the shroud. Instructions can be found by searching the archives. For TII's it is probably more critical to have a shroud, due to the increased thermal load.
Ren
An added advantage is that the fan doesn't create a blockage to airflow across the engine bay. Again, this only works if the fan shuts off when not needed (typically cruising along on the highway).
It is usually better to have a shroud for the fan. I installed an e-fan from an 88 Fiero on mine, including the shroud. Instructions can be found by searching the archives. For TII's it is probably more critical to have a shroud, due to the increased thermal load.
Ren
08-30-02, 08:43 AM
#11
Senior Member
Thread Starter
Join Date: Apr 2001
Location: Long Beach, CA, USA
Posts: 265
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by rxguru
Nice job, I use a first gen turbo eclpse radiator with two mitsu electric fans in my first gen. A friend if mine who helped with the install said it would never fit but I squeezed it in there, looks like a similar situation.
Nice job, I use a first gen turbo eclpse radiator with two mitsu electric fans in my first gen. A friend if mine who helped with the install said it would never fit but I squeezed it in there, looks like a similar situation.

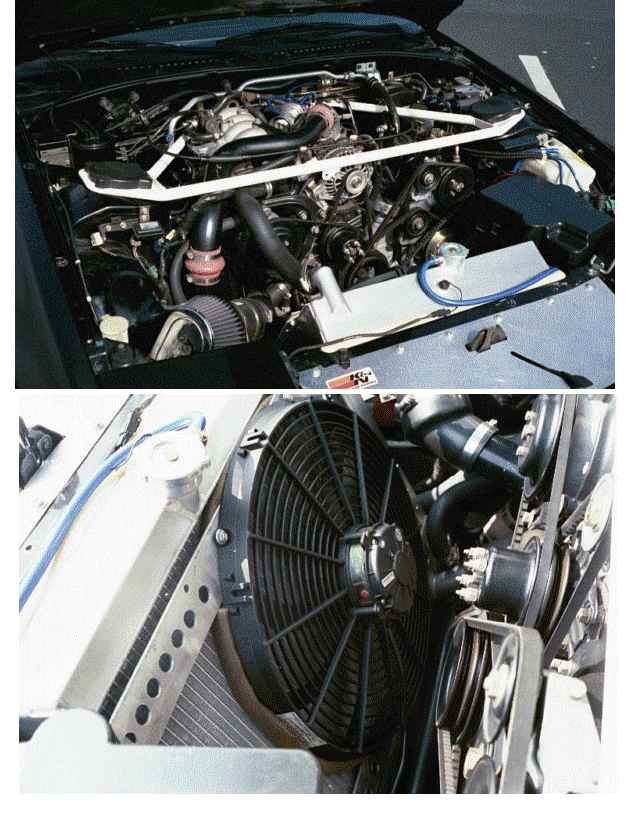

Thanks vaughnc for posting the pics. I don't have a web site to link them.
Rob
Last edited by Rob500; 08-30-02 at 08:47 AM.
