Ordered S4 Gasket set as S5 Gasket sets are NLA and ...
Since S5 Gasket set for NA is NLA. (8DF5-10-271)

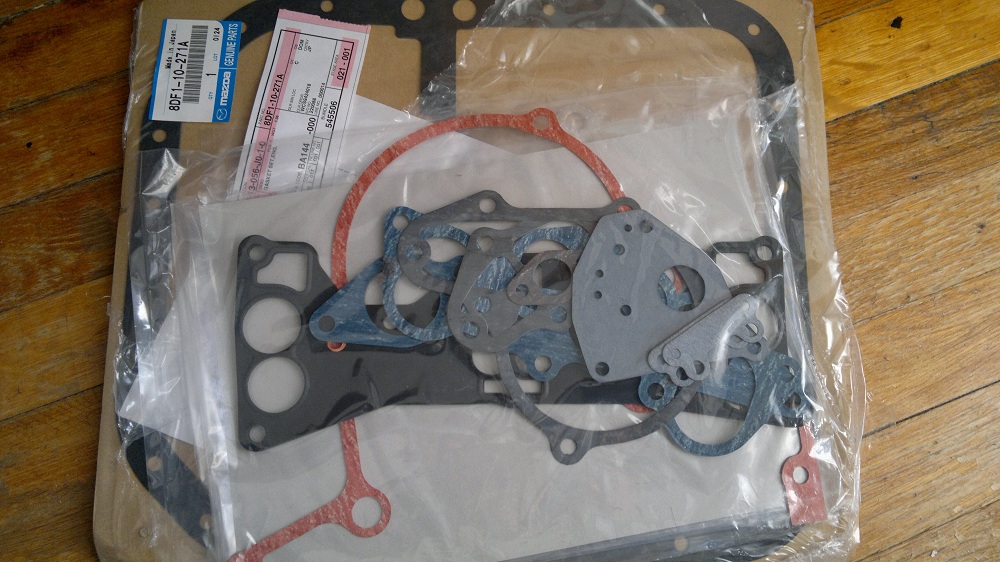

So I bought S4 Gasket NA set (8DF1-10-271A) simply because Mazda said S4 Gasket will still work.

86-88 GASKET SET If intake and exhaust gaskets don't matter, then this is the set to use, even for 89-92. Use turbo kit, 8DF4-10-271 only if turbo gaskets are necessary. Otherwise, this kit will still work.

but I have a feeling something is missing.

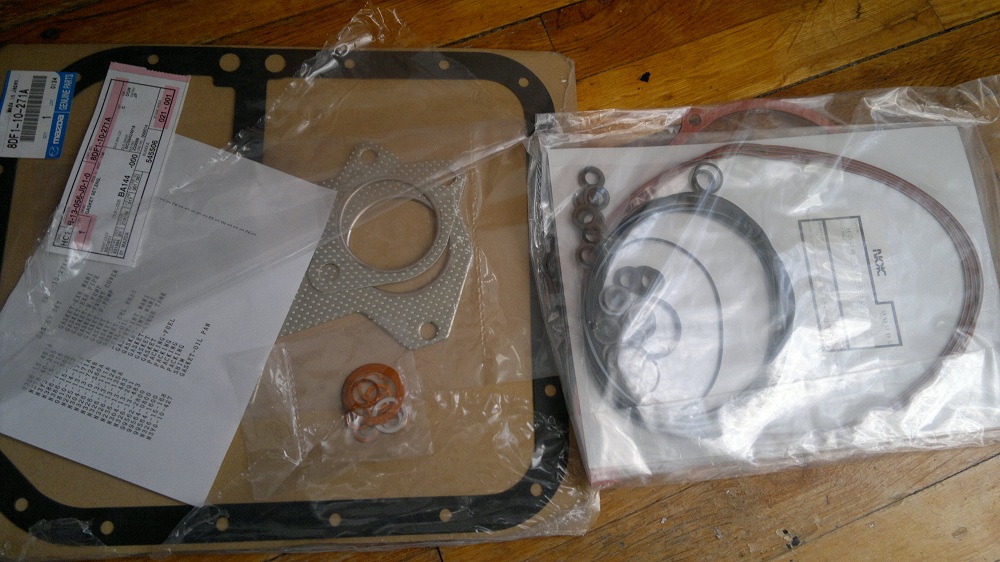

I got the kit yesterday (finally), so far I noticed that OMP seal missing which I know in the beginning cuz its different between S4 and S5. I have to order that.


what else am I missing ? hmm. just wanna order everything before I even start the rebuild (most parts already out, just need to pick the engine out, maybe some time next week)

thx


Attached Thumbnails Ordered S4 Gasket set as S5 Gasket sets are NLA and ...-19032011361.jpg   Ordered S4 Gasket set as S5 Gasket sets are NLA and ...-19032011362.jpg
nycgps is offline
Reply Like
Old 03-19-11, 08:51 AM
  #2
Cake or Death?

iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,249
Received 63 Likes on 53 Posts
S4 and S5 waterpumps do not interchange, so the S4 gasket won't work for you.
clokker is offline
Reply Like
Old 03-19-11, 09:06 AM
  #3
PedoBear

Thread Starter
iTrader: (4)

nycgps's Avatar

Join Date: Jun 2006
Location: Bye NYC. you SUCKED!
Posts: 1,429
Received 1 Like on 1 Post
That's true.

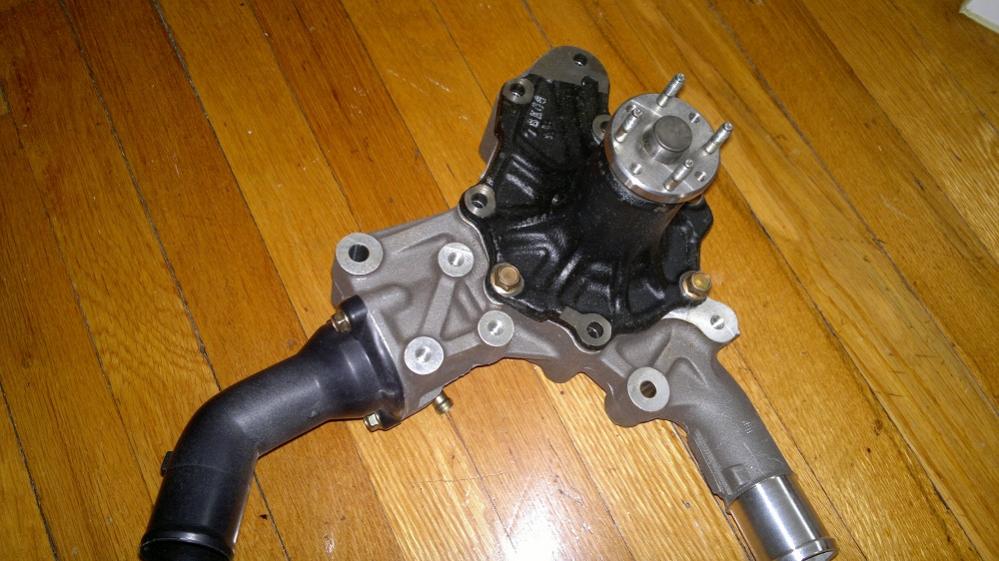

well, not a problem for me because I bought a brand new water pump assembly and the housing.



hmm lets see if there is anything else ... still trying to think ...
Attached Thumbnails Ordered S4 Gasket set as S5 Gasket sets are NLA and ...-04032011310.jpg
nycgps is offline
Reply Like
Old 03-19-11, 09:46 AM
  #4
Cake or Death?

iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,249
Received 63 Likes on 53 Posts
Consider replacing the three thermostat housing cover bolts with studs (ones identical to those on the pulley hub would work nicely).
Use anti-seize.
Pat self on back.
clokker is offline
Reply Like
Old 03-19-11, 10:45 AM
  #5
PedoBear

Thread Starter
iTrader: (4)

nycgps's Avatar

Join Date: Jun 2006
Location: Bye NYC. you SUCKED!
Posts: 1,429
Received 1 Like on 1 Post
Originally Posted by clokker
Consider replacing the three thermostat housing cover bolts with studs (ones identical to those on the pulley hub would work nicely).
Use anti-seize.
Pat self on back.
advise taken, will do
