Burnin_streets

I know there have been many threads on this. I have searched and I have completed quite a few of the other things mentioned. I've made sure timing was on, swapped out AFMs (although I know you don't need them to start), made sure there was gas, checked for vacuum leaks ......etc.

I called the guys over at pineapple and they said its just cuz i used too much vasoline and that it all needs to melt away. They also said not to tow start it, as it will damage the apex seals.

My problem now is how to get the damn thing started? I've tried a lot of different things, maybe I'm just overlooking something small. I would greatly appreciate any help/advise on this topic.

It s 87 GXL with emissions removed and a port job.

Hazard15301

iTrader: (5)

New rebuilds have shitty compression when you first start them. Especially if you used new apex seals and old rotor housings. My guess is you've also washed away the assembly lube, causing you to get no compression. Put a teaspoon of your favorite oil (like 2 stroke, MMO, etc) in the lower plug holes and hand crank it a couple times.

Burnin_streets

I've done that. It'll go "putt putt putt putt putt.........then die about 3-5 seconds later. Then you can tell when it totally looses compression and you have to put more oil in.

And yes, these are old housings and new seals.

Burnin_streets

Could it be that I have the wires going to the injectors wrong? Can someone post where they go?

Hazard15301

iTrader: (5)

You might have to resort to pull starting it. Sometimes the starter just can't spin the new motor fast enough for it to catch.

Burnin_streets

Damn, I was afraid of that.

Any other suggestions?

FC_DRFT

I put my fuel lines on the wrong way, I was just as stuck as you. But one day I decided to switch them and started right up!

Burnin_streets

Well, I don't think I did, but its worth a try I guess. I will def do that one. Anyone else?

Burnin_streets

Also I can't ID these bad boys. What are they to? Could they be part of the reason I'm having problems?

joeylyrech

iTrader: (11)

one of those niples go to thebrake booster the other one i dont know,if you have them like that you have a HUGE vacuum leak

Burnin_streets

the one closest to the camera is that one right? The other I have managed to plug up

Scrims

iTrader: (2)

I'm not exactly sure what it goes to, but the bigger plug on my car goes back towards the transmission or the exhaust.

Burnin_streets

Hailers, Aaroncake, ReTed, Icemark......anything to say?

Burnin_streets

So I looked at the wiring diagram for the injectors and found that I messed that up. So I switched them to the right places thinking I was guaranteed the car to work but still NOTHING. I'm so frustrated. I don't know what else to do. I've read and read and read and nothing. Please help.

gkarmadi

iTrader: (20)

I am not a rotary guru...so i can't give you a valuable information to help you. But if you are very very frustrated....may be tow your car to a rotary specialist shop??

Burnin_streets

uh, also a little bit of info that might help. I'm using new spark plugs purchased like 3-4 days ago. I've swapped out lead coils with another working good one. It reads around 8.5 volts when cranking (power to lead coil). I've had my injectors rebuilt. The spark wires are from October of last year, I actually just looked at the manual and one of the sympotoms it has is "afterburn" - popping from the exhaust. I thought I did the timing correct, aligened it to the first mark on the pulley and then lined up the mark on the CAS, and popped it in. Anything else???

Burnin_streets

More information, I'm running a RB header to a gutted cat to a CS 3" exhaust. Rebuilt S4 NA with S5 internals. Running atkins rebuild kit with Large SP, templates from Pineapple. Also emissions stuff is removed.

Burnin_streets

Seriously? No one knows?

Burnin_streets

Well, the plan today is to check out if the primaries are spraying fuel. I'm going to check compression and finally check for spark. I'll post results at the end of the day.

luis@champions-motorsports

pull you plugs and replace them if it goes put put put and dies your almost there.they maybe foulded.,while the plugs are out crank it for a few seconds to clear you chambers,last double check to be sure your fuel pump is comming on,that you indeed have spark and **** the thing should start,at least pop or something,i see you have a few vacumm leaks but that will only cause the car to run a high iddle.then as you are fine tunning solve them problem..see if that helps...

Burnin_streets

Luis, the plugs are almost brand new. However, per your recommendation, I will change them. I've been unflooding and cranking but nothing really seems to work. I've tried adding MMO, 2-storke, 5w-30 but nothing seems to work for me. I'm going to be testing fuel pressure today as I just went and bought a new tool.

Hazard15301

iTrader: (5)

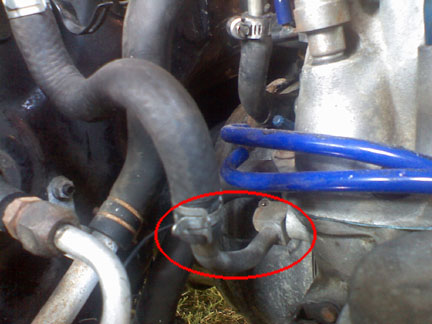

Did you ever fix that mystery line? If not, I took some pics of my setup. It's the brake booster vacuum source. If it's open like yours was, then that is a huge vacuum leak right there.

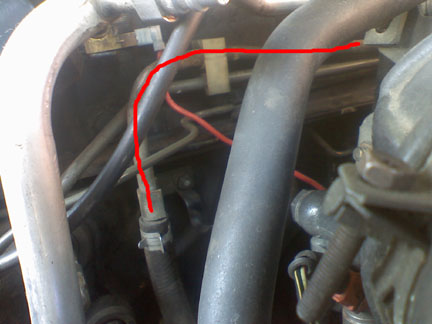

This just shows the routing of the line. It's metal and attached to the firewall by clips, should be easy to spot.

Burnin_streets

Yea, I got that squared away pretty quickly. Can I just vent that other line?

jwc3299

The other line is suppost to run into the exhust though a check valve.

Have you tried spraying quik start into the throttle body to see if it will keep running. That would tell you if it is fuel related.

Burnin_streets

Will try that later, still haven't made it out to the car today. Maybe around 5 or so, if I'm lucky.
