No spark, Car won't crank

Thread Tools

Search this Thread

Old Jan 11, 2012 | 10:29 AM
  #1
antj101's Avatar
Thread Starter
rotaryculture.com
Tenured Member 05 Years

Joined: Dec 2009
Posts: 126
Likes: 0
From: stockbridge, ga
No spark, Car won't crank

It's so odd, it's a streeported motor on a stock ecu. We had it started and we were adjusting the idle, it was running awesome actually. Then I turned it off when we got the idle right. I was putting the fan on so I could take it down the road and when I got in I tried to start it again and I coulda swore I saw a spark(might not have, but I think I did) and it wouldn't start after that. So I'm not getting spark, I've checked:

Coilpacks-good
Distributor-good
Ecu-good
Fuses-good

Could it be a burnt wire? I just don't know.
Reply
Old Jan 11, 2012 | 10:33 AM
  #2
satch's Avatar
Moderator
Tenured Member: 20 Years
iTrader: (1)

Joined: Jun 2005
Posts: 11,738
Likes: 16
From: tulsa,ok.
You mention that you have no spark, but you also mentioned that the car does not crank. If it doesn't crank you cannot have spark so the question is does it crank but no spark or does it not crank at all?
Reply
Old Jan 11, 2012 | 10:50 AM
  #3
ace626's Avatar
Full Member
Tenured Member 05 Years
iTrader: (2)

Joined: Nov 2007
Posts: 97
Likes: 0
From: Rhode Island
If the car won't crank check out the wire that goes to the starter solenoid. It connects with a female spade connector. It should supply ~12V (probably less) when the key is in the start position.

You can jump the hot wire on the starter to that solenoid with a wire or screwdriver and see if it cranks. The car may crank and start so DO NOT do this with it in gear a get crushed please. If it doesn't crank your starter probably needs to be replaced.

It could be any of the other things in the ignition circuit. The ground at the starter/tranny, ignition switch, battery terminals, battery, theft protection starter cut relay, clutch switch or the wiring between these parts.
Reply
Old Jan 11, 2012 | 10:56 AM
  #4
ace626's Avatar
Full Member
Tenured Member 05 Years
iTrader: (2)

Joined: Nov 2007
Posts: 97
Likes: 0
From: Rhode Island

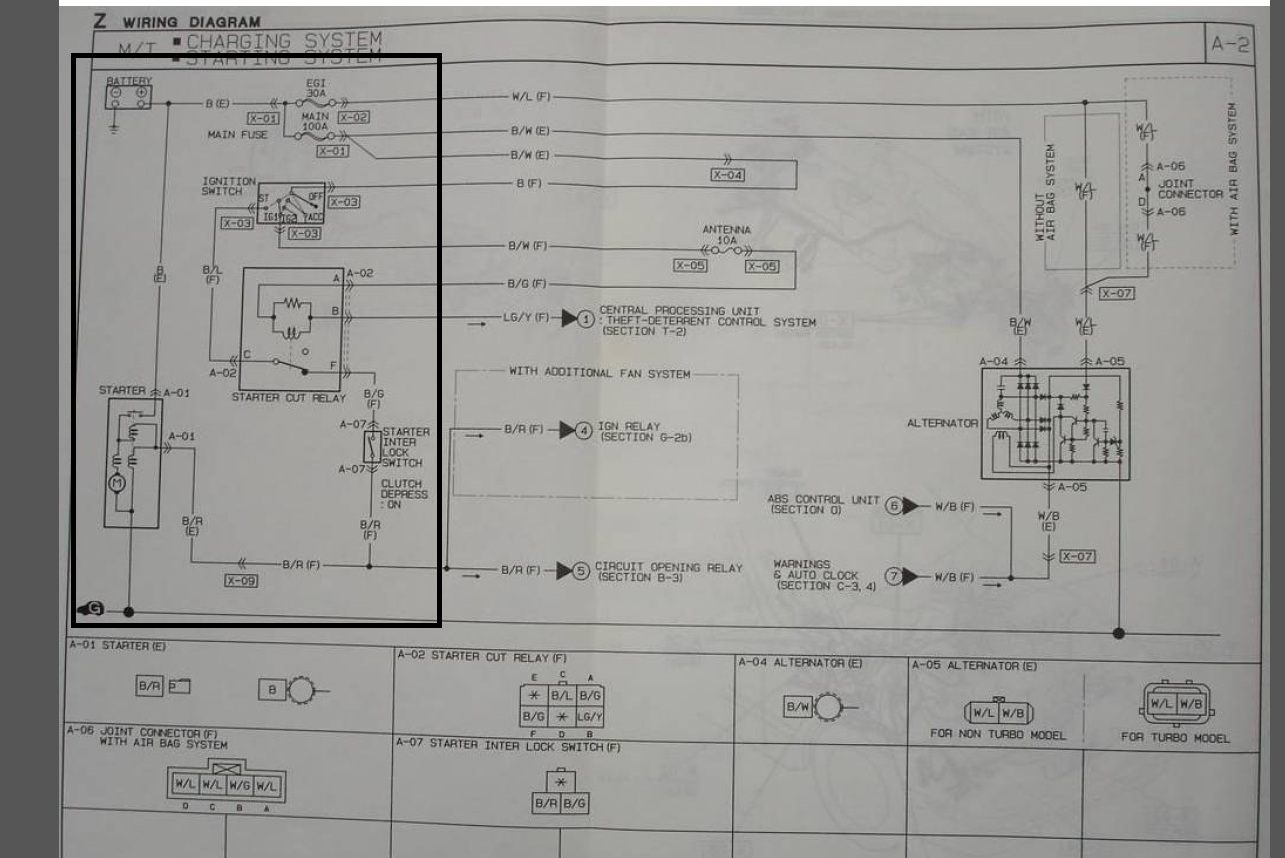

Pic of the starting system for an S5 with manual transmission
Attached Thumbnails No spark, Car won't crank-mt-s5-starting-curcuit.jpg
Reply
Old Jan 11, 2012 | 11:22 AM
  #5
antj101's Avatar
Thread Starter
rotaryculture.com
Tenured Member 05 Years

Joined: Dec 2009
Posts: 126
Likes: 0
From: stockbridge, ga
Originally Posted by satch
You mention that you have no spark, but you also mentioned that the car does not crank. If it doesn't crank you cannot have spark so the question is does it crank but no spark or does it not crank at all?
Sorry, it will turnover, but will not crank.
Reply
Old Jan 11, 2012 | 11:30 AM
  #6
satch's Avatar
Moderator
Tenured Member: 20 Years
iTrader: (1)

Joined: Jun 2005
Posts: 11,738
Likes: 16
From: tulsa,ok.
Originally Posted by antj101
Sorry, it will turnover, but will not crank.
You mean it will crank but not start? Turning over and cranking are the same thing. W/key to on check for voltage on the Brown wire at either the TPS or Pressure Sensor and it should read 5 volts. This would prove that the ECU is powered up.
Reply
