newbie needs help with motor change
#1
Junior Member
Thread Starter
Join Date: May 2006
Location: fayetteville nc
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
newbie needs help with motor change
i have an 87 rx7 13b .it had no compression but got fuel and fire.so i swapped in a 13b that i took out of a running car six months ago.know the new motor has compression and fire but the injectors wont work .any suggestion would be great .fuse,s are good and there is fuel in the rail ,but the plugs stay dry.the intake and acceriories came of the motor that was getting fuel and fire.the only thing that was changed was engine block now i get 0 fuel out of the injectors thanks.
#2
backslash beanbagrace
iTrader: (1)
Make sure that you didn't mix up the fuel lines, or swap the primary injector plugs with the secondaries.
Or you could try swapping the injectors from your old motor into the new one.
What year is your car, and what year is the engine you are putting in? They changed injector impedence between 87 and 88. So, you would need an 87 harness to mate with 87 injectors and an 88 harness to mate with 88 injectors.
For more on that look here: http://rotaryresurrection.com/rotary.../injector.html
Or you could try swapping the injectors from your old motor into the new one.
What year is your car, and what year is the engine you are putting in? They changed injector impedence between 87 and 88. So, you would need an 87 harness to mate with 87 injectors and an 88 harness to mate with 88 injectors.
For more on that look here: http://rotaryresurrection.com/rotary.../injector.html
Last edited by White87FC; 05-29-06 at 08:50 PM.
#3
Junior Member
Thread Starter
Join Date: May 2006
Location: fayetteville nc
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
the injectors and everything our off my 87 rx7 .i used the same intake and everything off the motor that was in the car just changed the block(or core).i will check that stuff tomorrow ,does the gas go in on the regulator end of the fuel rail or the end with the big bolt.i have swapped them once cause i thought i might have it backwards and there was no difference.thanks for the reply.
#5
Passing life by
Do you have 12v on one of the wires on each injector plug?
Yes?

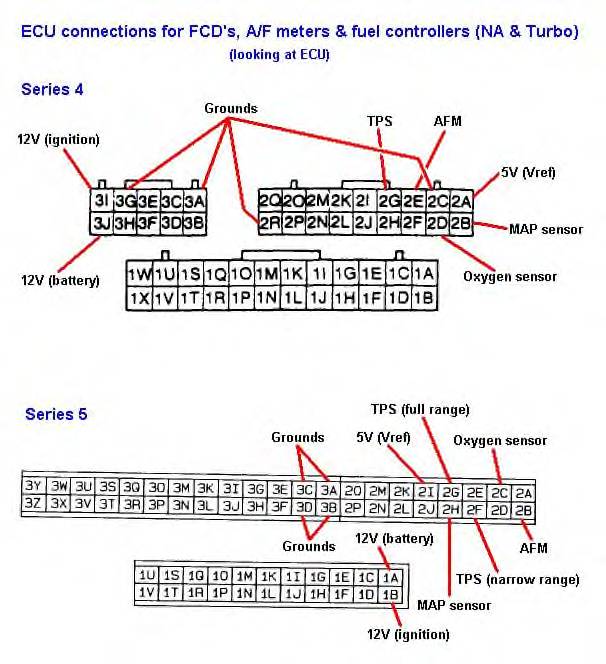

...Check the ECU pins 3C, 3E, 3F, 3H for 12v
...
...Good?
......Yes?
.........Check CAS.
.........Crank angle sensor resistance
.........Between terminals G1 and G2 110 to 210ohms
.........Between terminals Ne1 and Ne2 110 to 210 ohms
.........Clip up looking into clip. Top left Ne2 top right G2
.........Good?
............Yes?
...............Bad ECU
............No?
...............Replace CAS repeat to step one.
......No?
.........Check resistor pack and or wiring
.........Repeat to step 1
No?
...Check fuse EGI INJ
...Good?
......Yes?
.........Check the main relay.
.........Good?
............Yes?

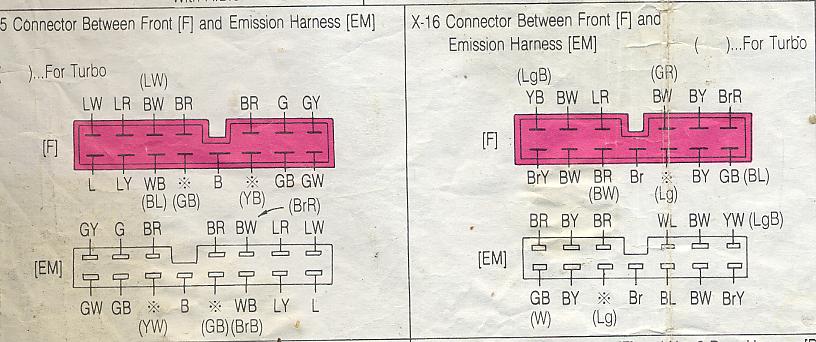

...............Check plug X-16, wires BR and LR
...............
...............Address the wiring as needed till 12v exists powered from Main relay.
...............Repeat to step 1
............No?
...............Replace relay or fix, repeat to step 1.
......No?
.........Replace fuse, repeat to step 1
Yes?
...Check the ECU pins 3C, 3E, 3F, 3H for 12v
...
...Good?
......Yes?
.........Check CAS.
.........Crank angle sensor resistance
.........Between terminals G1 and G2 110 to 210ohms
.........Between terminals Ne1 and Ne2 110 to 210 ohms
.........Clip up looking into clip. Top left Ne2 top right G2
.........Good?
............Yes?
...............Bad ECU
............No?
...............Replace CAS repeat to step one.
......No?
.........Check resistor pack and or wiring
.........Repeat to step 1
No?
...Check fuse EGI INJ
...Good?
......Yes?
.........Check the main relay.
.........Good?
............Yes?
...............Check plug X-16, wires BR and LR
...............
...............Address the wiring as needed till 12v exists powered from Main relay.
...............Repeat to step 1
............No?
...............Replace relay or fix, repeat to step 1.
......No?
.........Replace fuse, repeat to step 1
