MN New Twin-Scroll Turbo Manifolds

We are changing all of our turbo manifolds for 2013. In the past we have been making manifolds on a case by case basis and we are not planning on offering this anymore. What we are doing is trying to fit as many possible turbo combinations, and variations into one nice package, and make them in bulk. We intend to have manifolds sitting on the shelf ready for shipment. This means zero wait time!

Excerpt from our website;
  • This manifold has proper waste-gate placement. The entrances to the waste-gate runners are in the direct flow, and tear-dropped where possible. The waste-gate runners are very short to disrupt the flow as little as possible. This manifold will never boost creep.
  • This manifolds is flanged for twin TurboSmart Comp40 gates, or Tial MVS wastegates
  • This manifold is built with schedule 40 1.5" cast pipe( 0.145" wall) 304SS. This is the optimal size inner diameter for a 13B 2 rotor. This manifold is built with the least amount of bends possible, and does not cheat any radii. Both flanges are also extremely well hand ported, and the I.D. of the flange matches the I.D. of the OEM 13B exhaust sleeve. This manifold design has the highest velocity possible, and therefore the quickest " spool ".
  • This manifold is back-purged, and built stress free. Both flanges are also sanded 100% flat, ensuring a proper seal forever
  • Air Pump, Air Pump Bracket, and Air Control Valve require removal.
  • Dual EGT bungs are an optional
  • Fits most popular turbo sizes like Garrett GT35R, GT40R, Precision 6262,6265,6266,6765,6766,7175, Borg Warner S360, and S366.
  • We have a 100% money back guarantee( less return freight) and free shipping( in the lower 48 states)!
  • This unit has a limited life time warranty for original purchaser

FC3S Rx-7 Turbo Manifold - Turblown Engineering

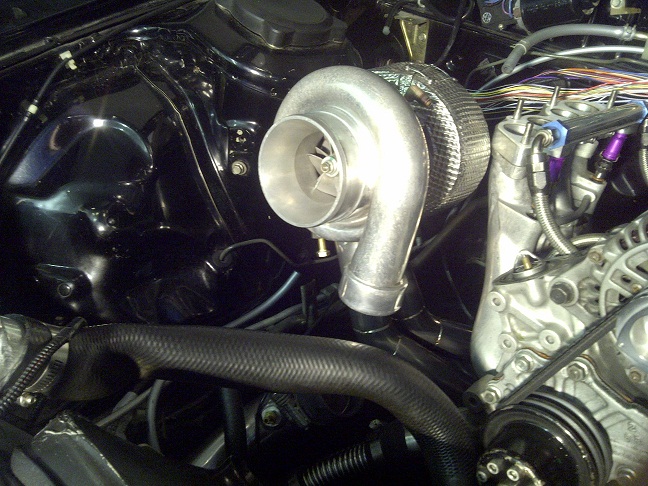

We are currently tweaking the manifold slightly to drop the turbo height in order to make the larger frame turbos clear the hood. We will probably be offering these with new thermostat necks( billet aluminum flange, with a welded on tube).
We are hoping this placement will fit the bigger GT42R...

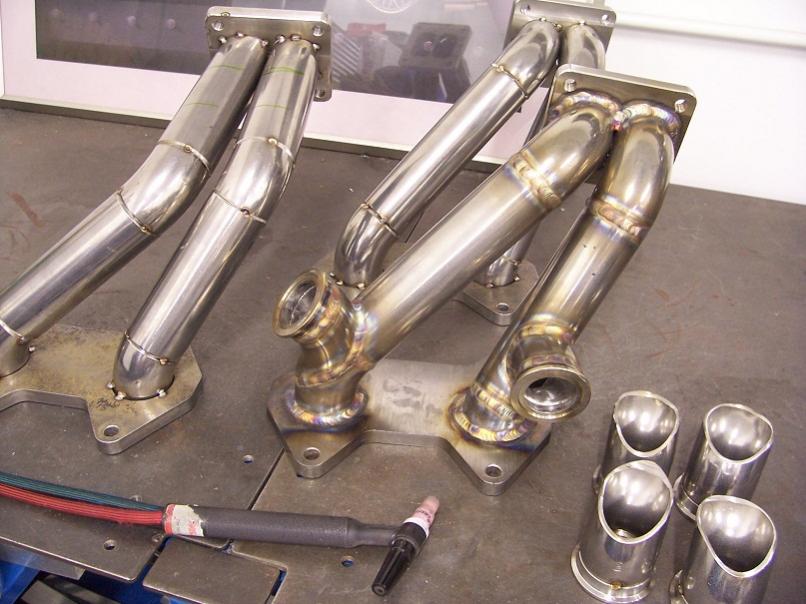

Attached Thumbnails New Twin-Scroll Turbo Manifolds-new-manifolds.jpg   New Twin-Scroll Turbo Manifolds-img-20130207-00837.jpg
Turblown is offline
Old 02-08-13, 11:04 AM
  #2
Enthusiast
iTrader: (5)

rx7 SE's Avatar

Join Date: Aug 2004
Location: Charlotte, NC
Posts: 2,180
Thanks: 0
Thanked 1 Time in 1 Post
+1!!!
rx7 SE is offline
Old 02-08-13, 05:36 PM
  #3
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,848
Thanked 16 Times in 15 Posts

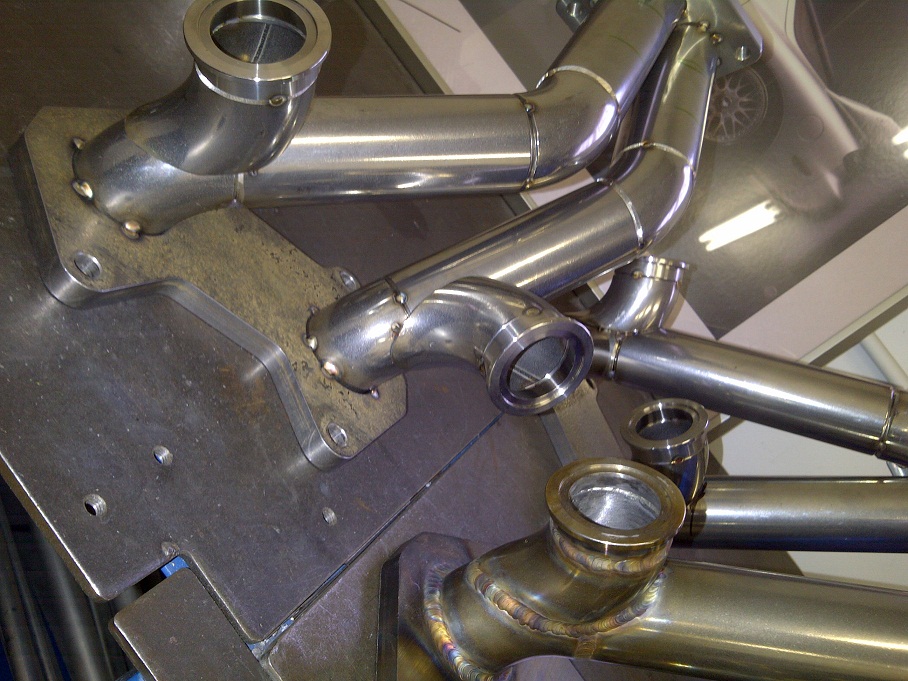

Got the waste-gate runners dialed in. We are sending out several of these manifolds solely due to the fact that customers have been recently on the dyno and they are over-boosting. Zero chance of over-boosting now...
Attached Thumbnails New Twin-Scroll Turbo Manifolds-img-20130208-00845.jpg
Turblown is offline
Old 02-12-13, 03:20 PM
  #4
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,848
Thanked 16 Times in 15 Posts

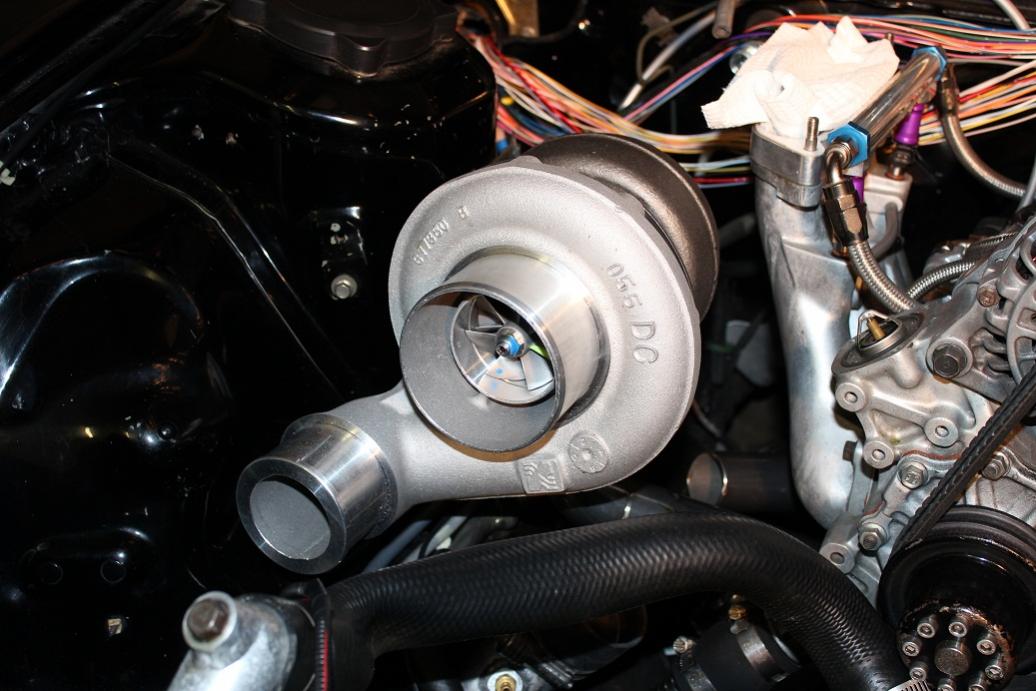

Final placement. Pictured with a BW S366. Should fit a GT42R, but have yet to test fit one. All manifolds will require a new upper radiator hose. We will be supplying a billet thermostat neck.
Attached Thumbnails New Twin-Scroll Turbo Manifolds-img_1711.jpg   New Twin-Scroll Turbo Manifolds-img_1712.jpg
Turblown is offline
Old 03-08-13, 03:05 PM
  #5
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,848
Thanked 16 Times in 15 Posts

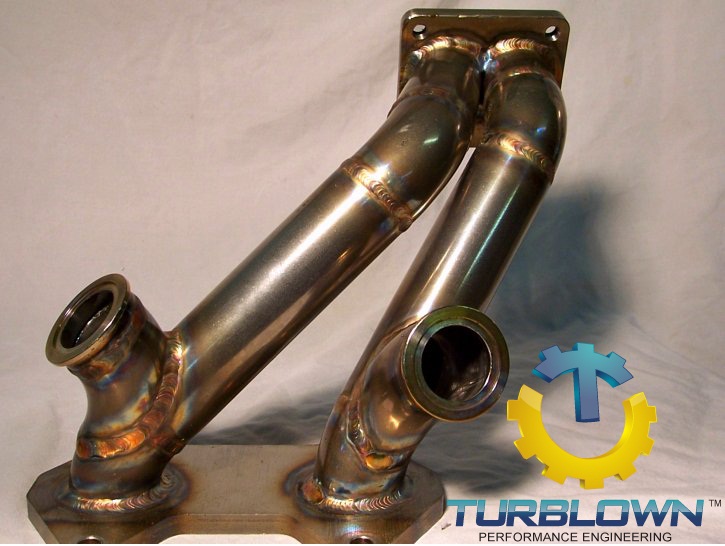

The final; all welded up. We are going to be making 10 more of these as soon as the flanges arrive.
Attached Thumbnails New Twin-Scroll Turbo Manifolds-fc-turbo-manifold.jpg
Turblown is offline
Old 03-08-13, 08:46 PM
  #6
BlackSilk,bold yet smooth
iTrader: (3)

ChocolateThunderFC's Avatar

Join Date: Jun 2011
Location: Colorado
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
Good looking piece, trying to decide on which manifold now
ChocolateThunderFC is offline
Old 03-11-13, 02:37 PM
  #7
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,848
Thanked 16 Times in 15 Posts

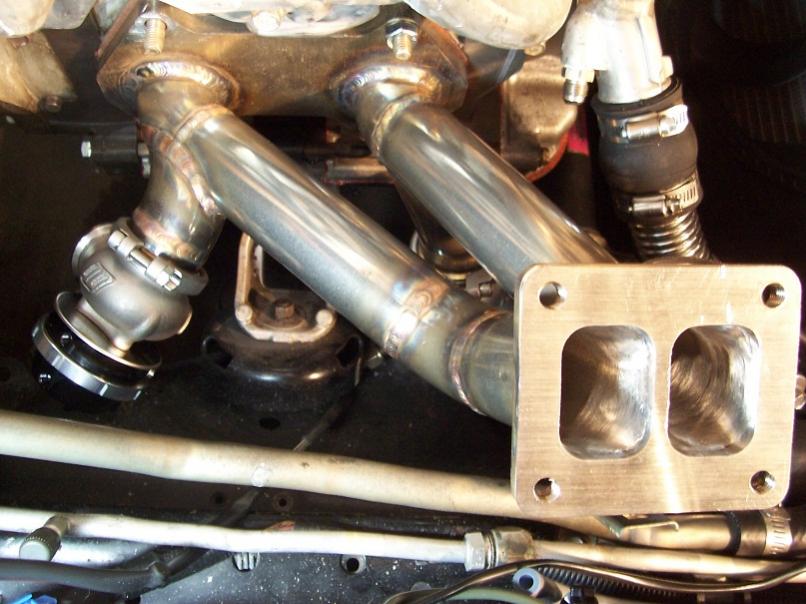

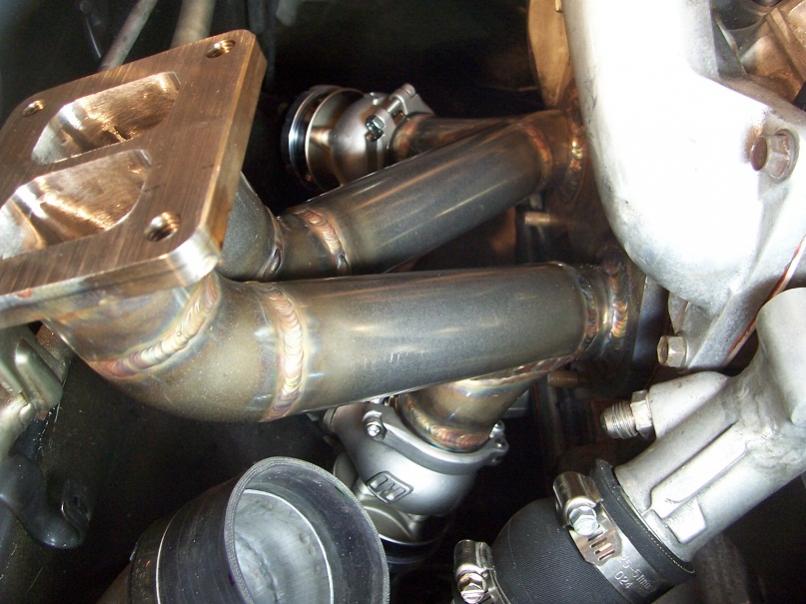

A few quick pictures with the wastegate gates installed. There is plenty of clearance even with engine rock assuming your motor mounts are in good condition. The front discharge is a little tight, but one can either run it between the engine mount bracket and oil pan, or over the engine mount bracket and out the back. This manifold will not fit MVR wastegates, you only have your choice of Tial MVS, or TurboSmart Comp40 wastegates. Old school Tial 2 bolt flanges available upon request too. This manifold will also work for Convertibles( pictured).
Attached Thumbnails New Twin-Scroll Turbo Manifolds-100_6333.jpg   New Twin-Scroll Turbo Manifolds-100_6335.jpg
Turblown is offline
Old 03-20-13, 05:43 PM
  #8
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,848
Thanked 16 Times in 15 Posts
By the start of early next week these manifolds will now be in stock, ready for same day shipping.
Turblown is offline
Old 04-09-13, 12:07 PM
  #9
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,848
Thanked 16 Times in 15 Posts

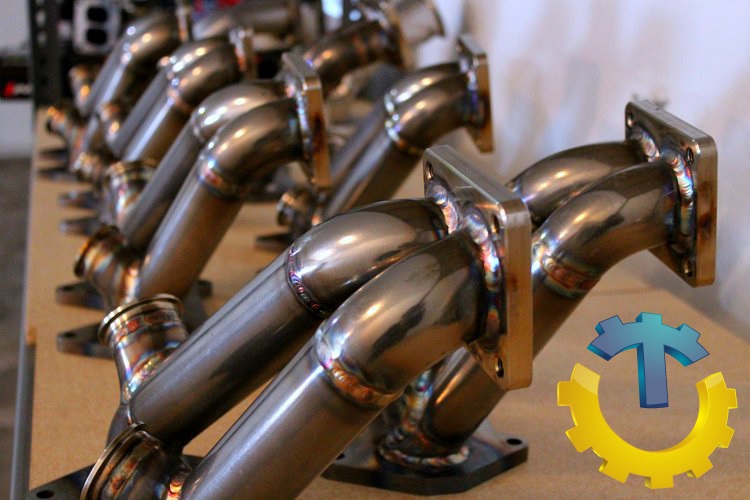

Manifolds are now in stock, and ready for immediate shipping!
Attached Thumbnails New Twin-Scroll Turbo Manifolds-turblown-manifolds.jpg
Turblown is offline
Old 04-09-13, 03:43 PM
  #10
Where's the Meth
iTrader: (1)

orange's Avatar

Join Date: Aug 2004
Location: Nelson, New Zealand
Posts: 274
Thanks: 0
Thanked 0 Times in 0 Posts
Thumbs up

Cant wait to see mine plumbed in and ready to go!
orange is offline
Old 06-27-13, 04:47 PM
  #11
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,848
Thanked 16 Times in 15 Posts
Manifolds are back in stock!
Turblown is offline
Old 06-27-13, 05:13 PM
  #12
Where's the Meth
iTrader: (1)

orange's Avatar

Join Date: Aug 2004
Location: Nelson, New Zealand
Posts: 274
Thanks: 0
Thanked 0 Times in 0 Posts
RHD Version

Hi Eliot,

how is it looking for the RHD version?
orange is offline
Old 08-21-13, 09:40 PM
  #13
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,848
Thanked 16 Times in 15 Posts

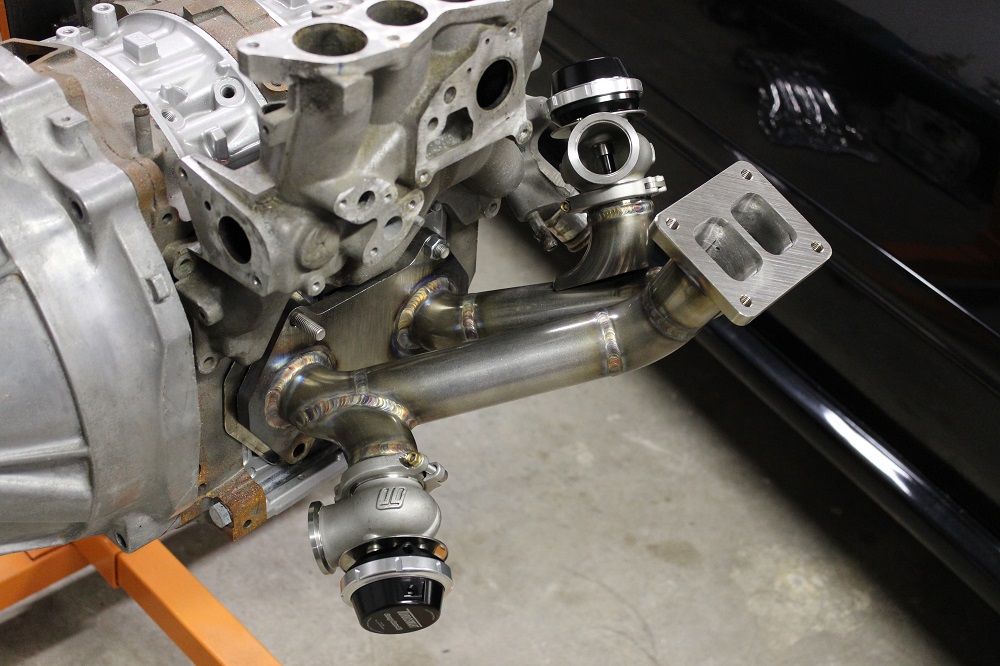

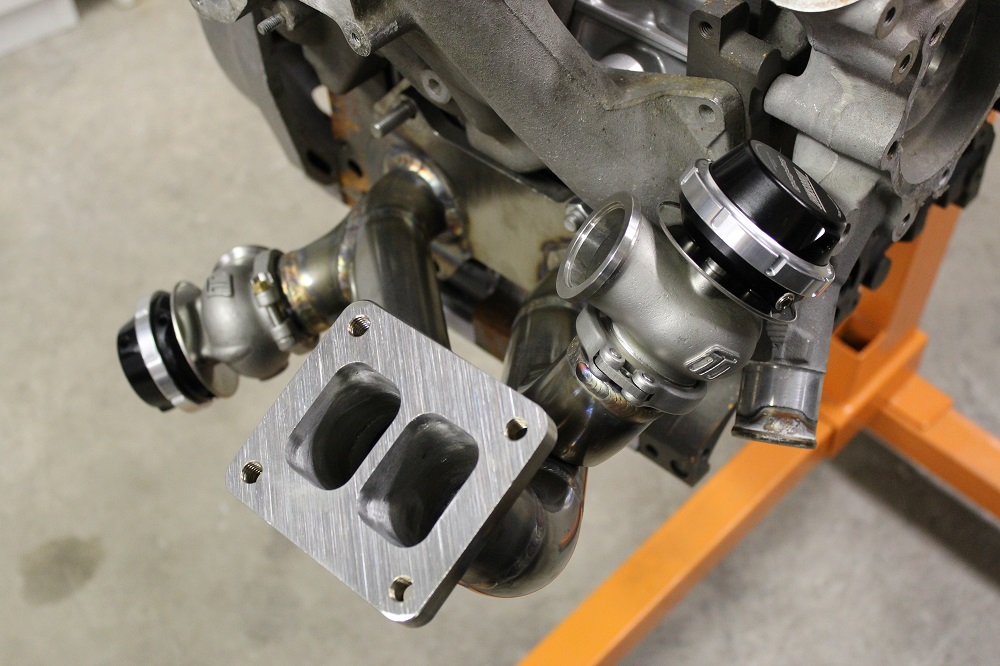

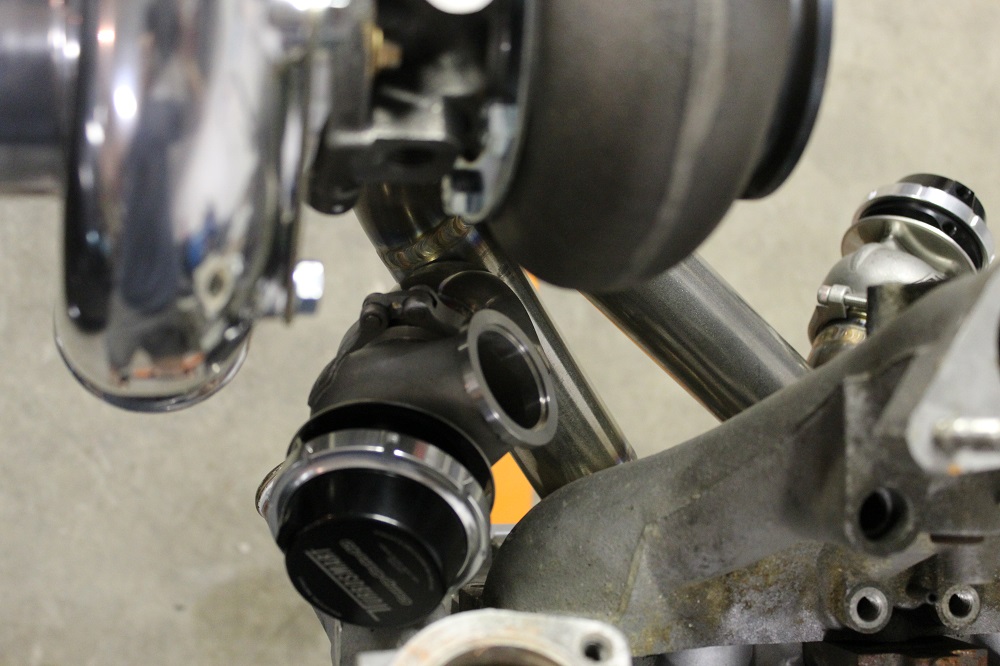

Your manifold sir! Rhd, and egts are in progress...
Attached Thumbnails New Twin-Scroll Turbo Manifolds-img_2450.jpg   New Twin-Scroll Turbo Manifolds-img_2448.jpg   New Twin-Scroll Turbo Manifolds-img_2453.jpg
Turblown is offline
Old 08-21-13, 10:11 PM
  #14
Where's the Meth
iTrader: (1)

orange's Avatar

Join Date: Aug 2004
Location: Nelson, New Zealand
Posts: 274
Thanks: 0
Thanked 0 Times in 0 Posts
It looks good, thanks for posting the pics up.
orange is offline
Old 01-15-14, 09:52 AM
  #15
Junior Member
5 Year Member
iTrader: (1)

lilredrocket's Avatar

Join Date: Jun 2007
Location: NY
Posts: 49
Thanks: 0
Thanked 0 Times in 0 Posts
What downpipe will be compatible with this manifold and gt35r on an FD
lilredrocket is offline
Old 01-30-14, 11:48 PM
  #16
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,848
Thanked 16 Times in 15 Posts

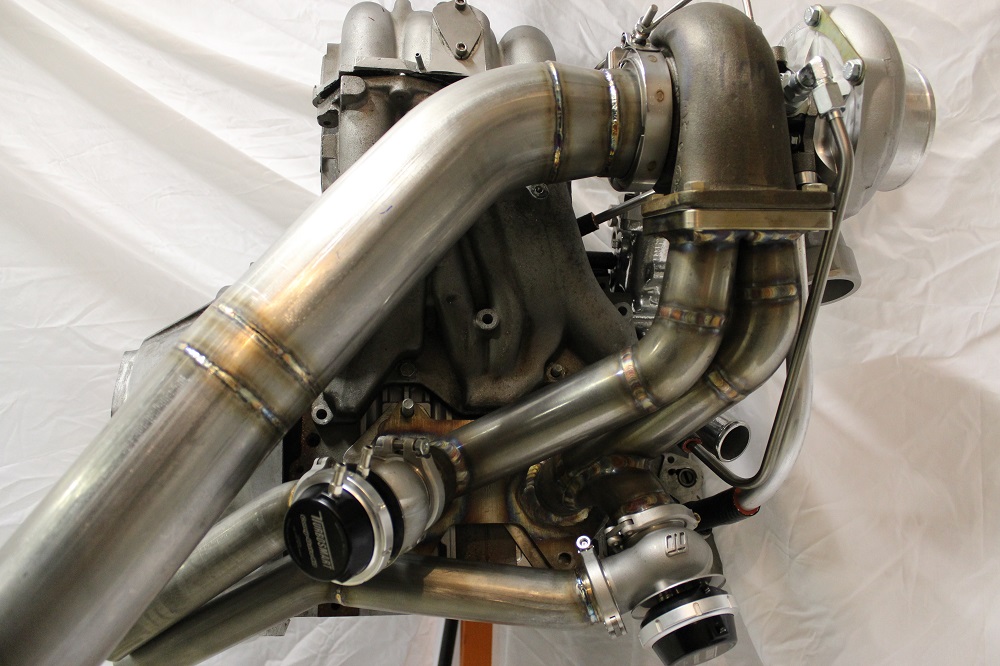

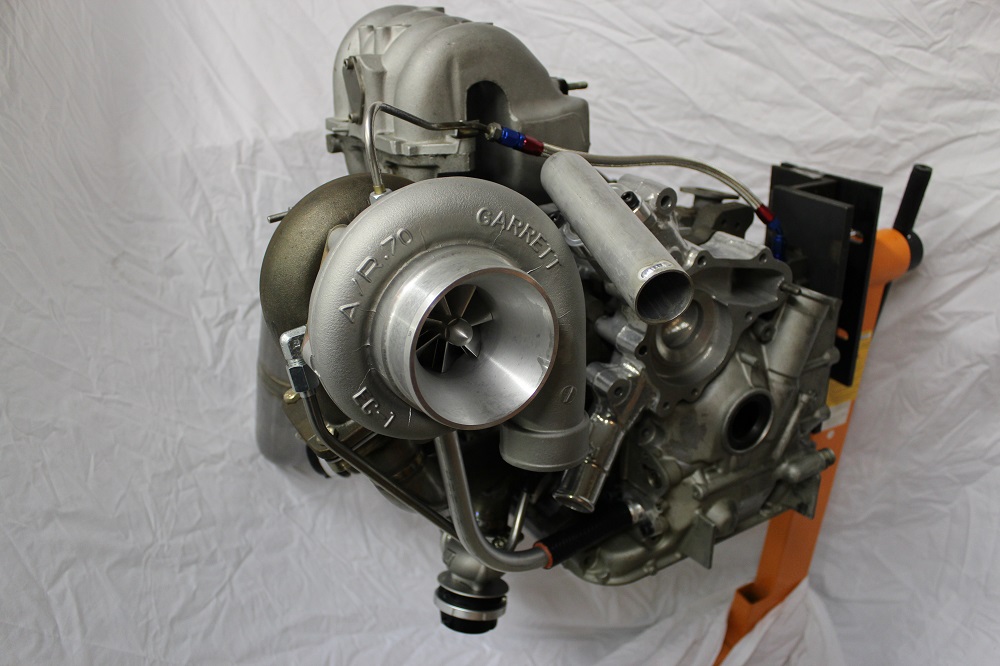

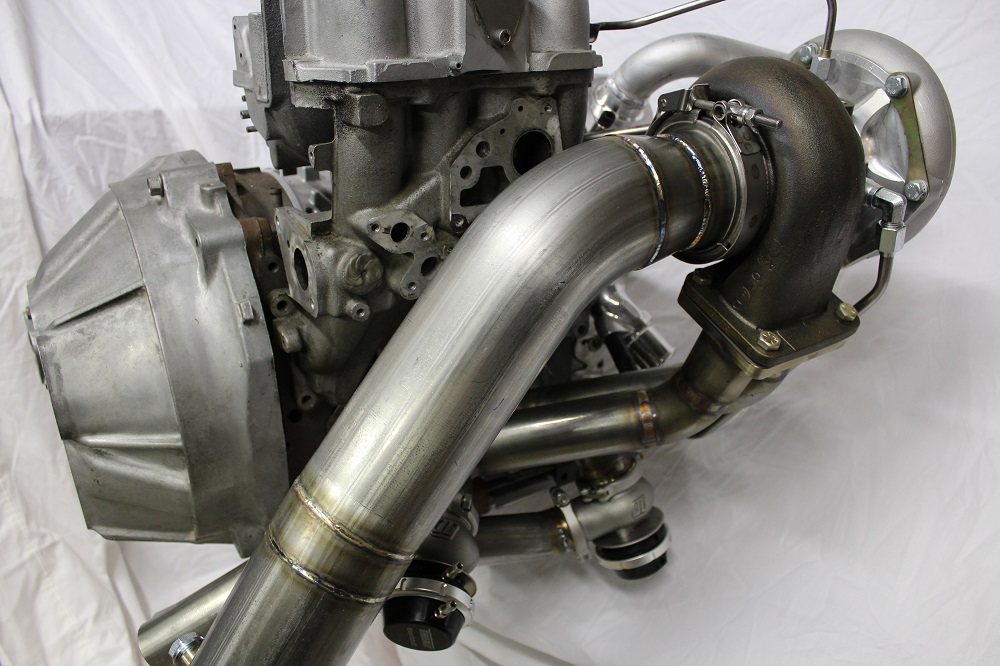

More pixs!
Attached Thumbnails New Twin-Scroll Turbo Manifolds-fc3s-tdx61-turbo-system.jpg   New Twin-Scroll Turbo Manifolds-hardlines.jpg   New Twin-Scroll Turbo Manifolds-tdx61-fc-front.jpg   New Twin-Scroll Turbo Manifolds-tdx61-fc-side.jpg
Turblown is offline
Old 01-31-14, 09:16 AM
  #17
Rotary Enthusiast
iTrader: (1)

Join Date: Nov 2012
Location: bloomington, mn
Posts: 1,101
Thanks: 0
Thanked 0 Times in 0 Posts
someday, someday..... I will get to experience how awesome this setup is.
archaphil is offline
Old 02-03-14, 07:43 AM
  #18
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,848
Thanked 16 Times in 15 Posts

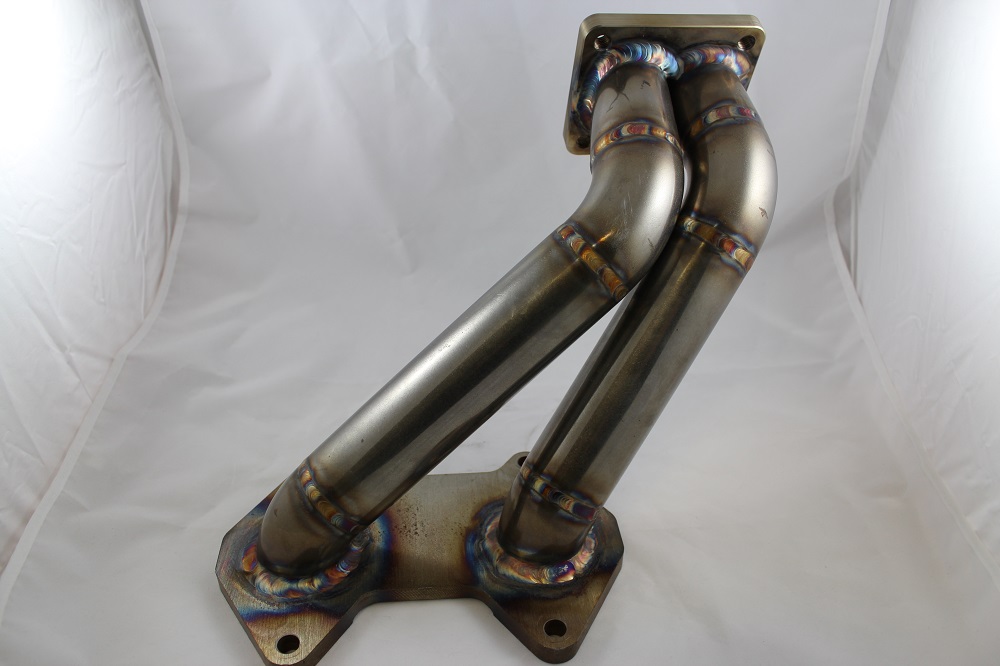

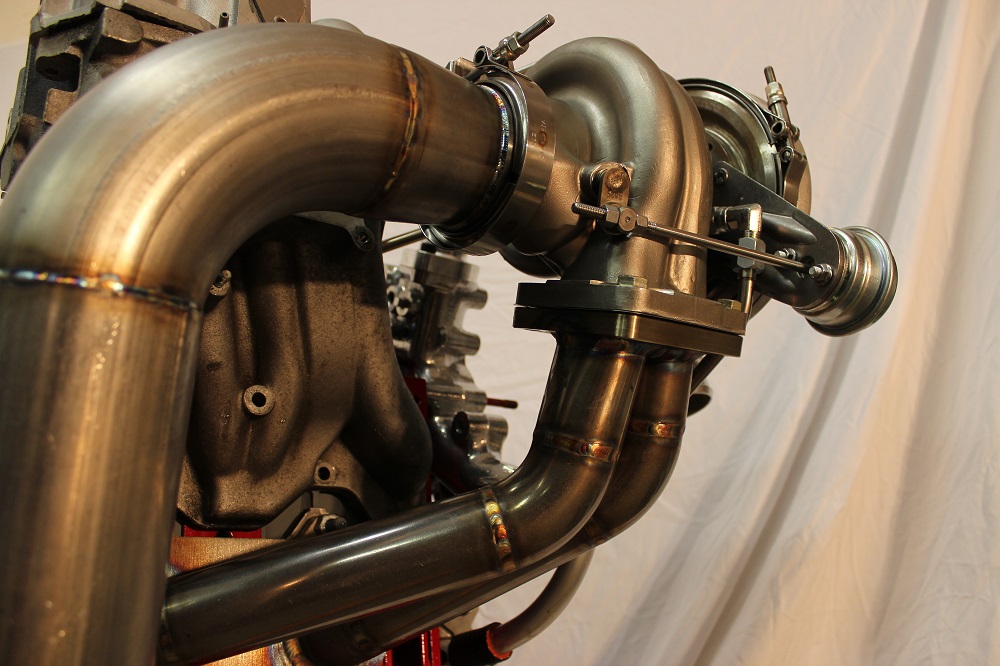

EFR Internal Waste-Gate Version
