New 88 FC

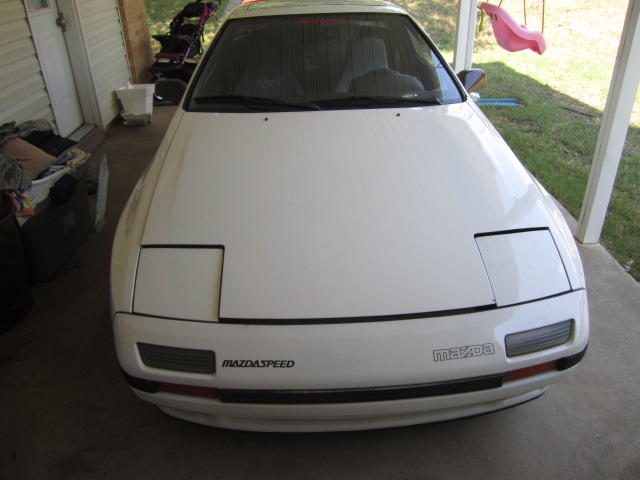

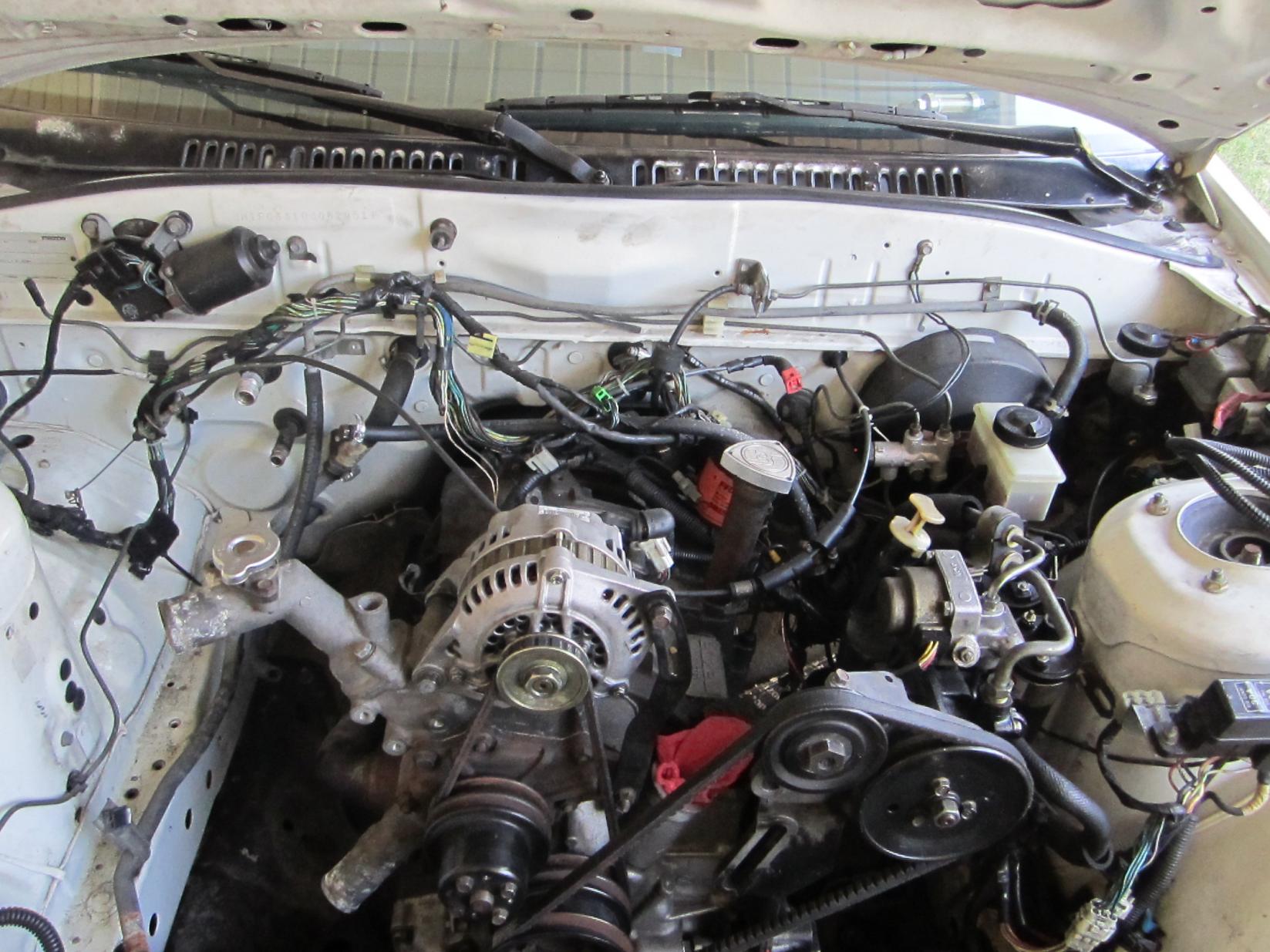

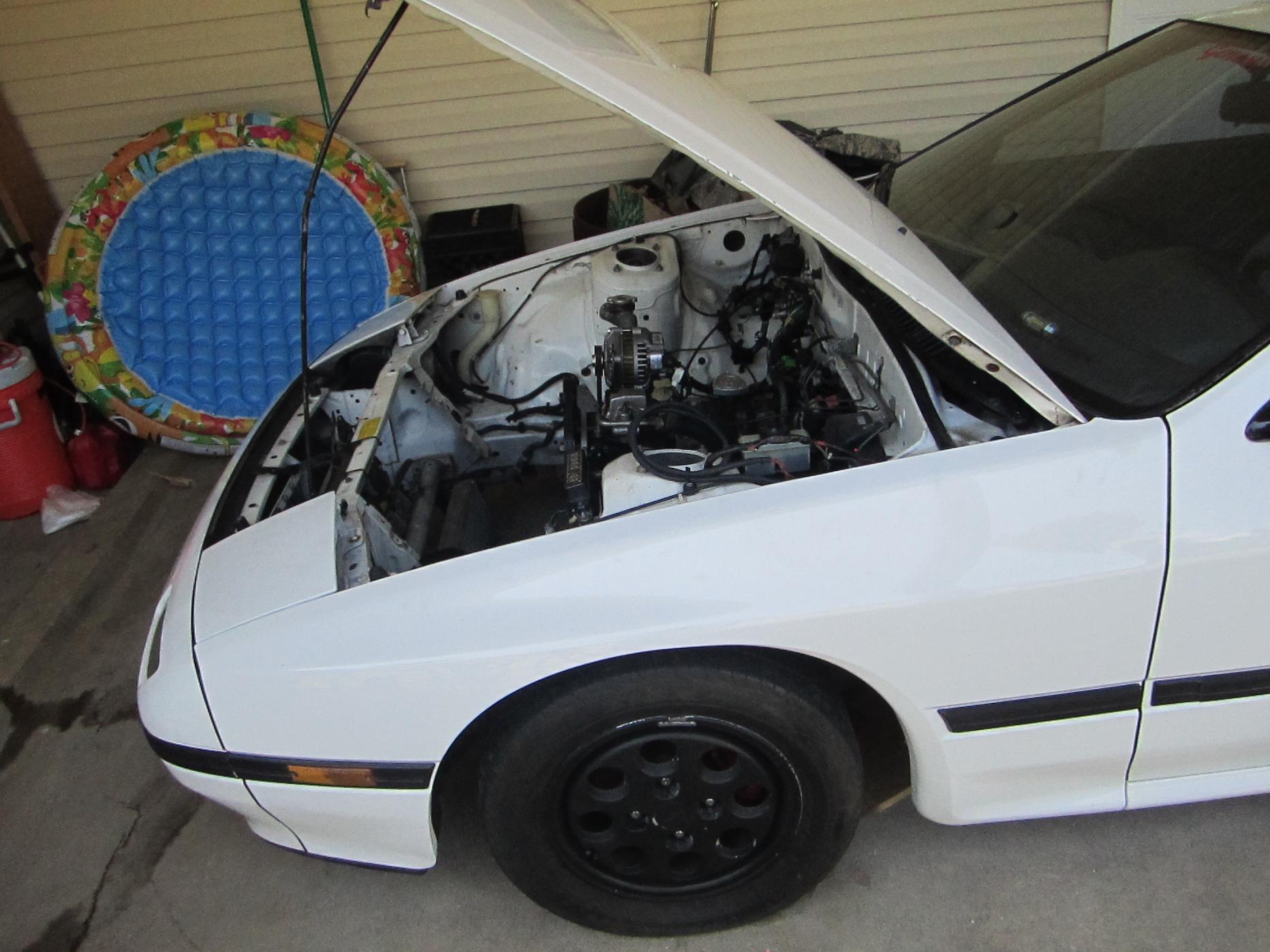

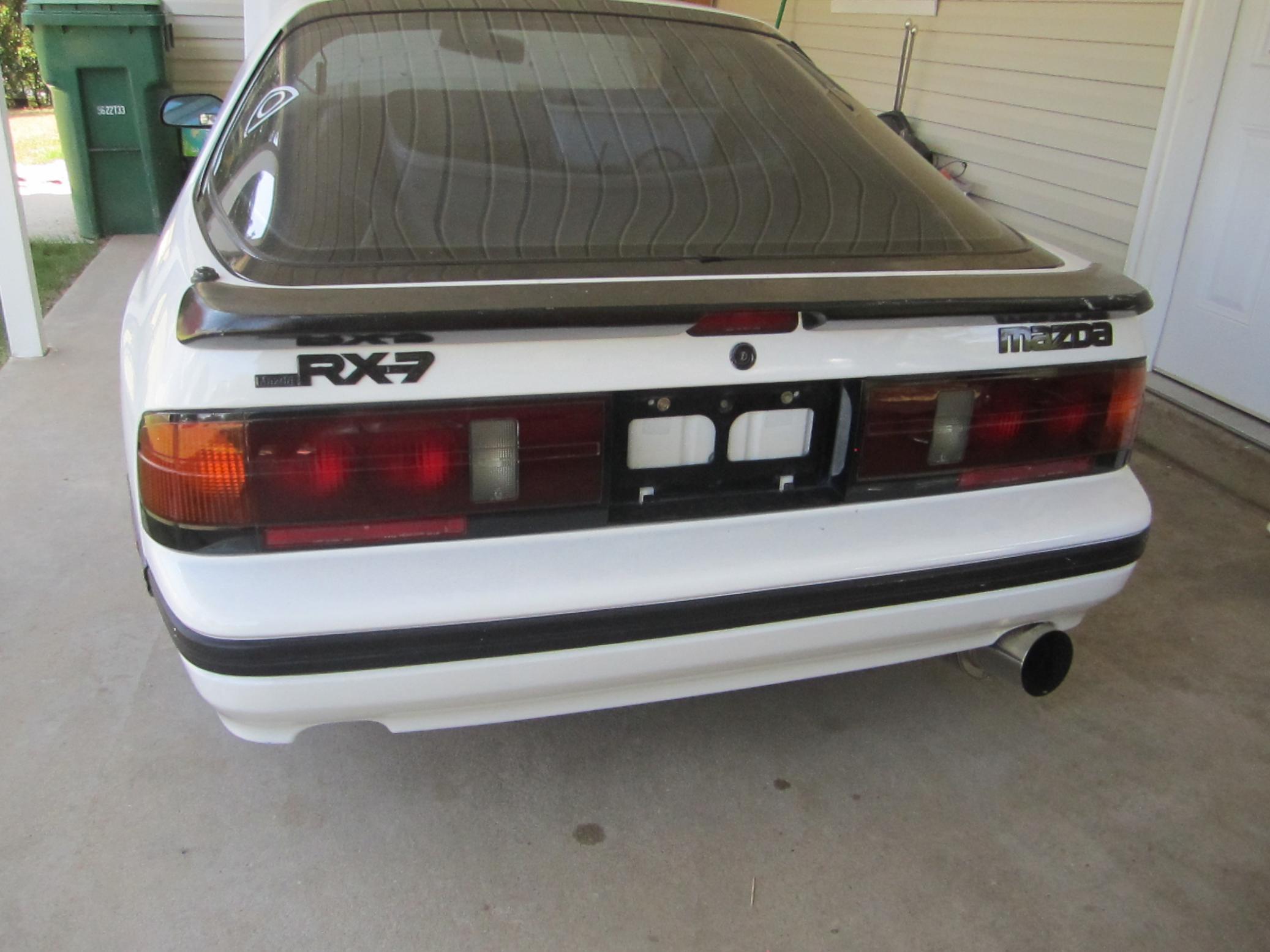

Well i just picked this up yesterday. Its an 88 base, 245xxx on the chassis, and about 1500 on the motor. Interior is blue and in pretty good shape for its age, only thing broke is the bezel around the radio area. The motor is a full bridgeport converted to a holley carb setup, it has 84 se 4 port irons and 88 s4 na housings and internals. The guy i bought it from had been trying to sell it but got impatient so he started parting it out. He sold the intake and carb

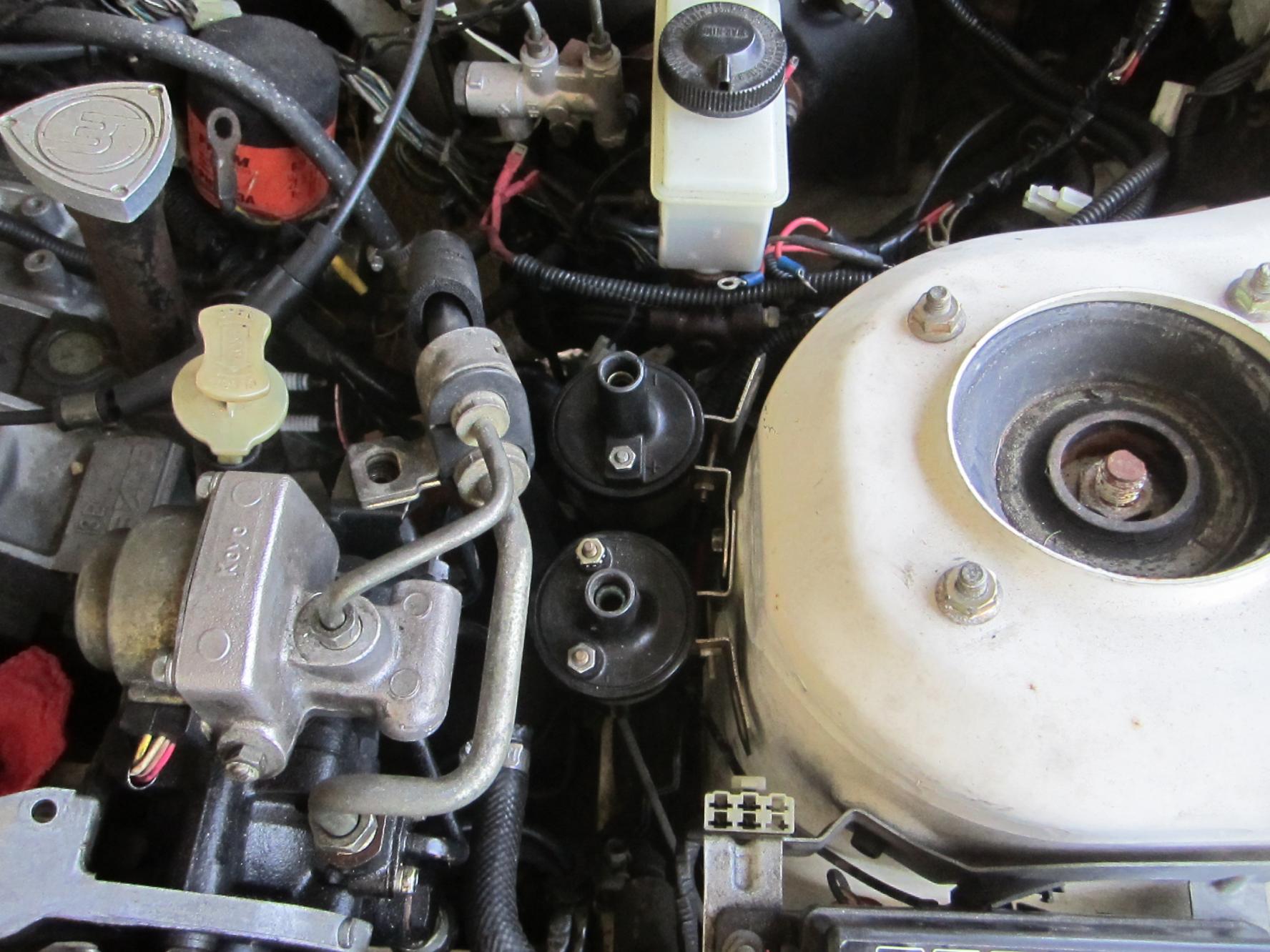

He also took out the stock ignition system and installed 2 msd coils, but he sold the rest of the ignition system in the "part-out"...... So all i have is the 2 coils and no wiring.
Its going to be A TON of work, but i wanted something to keep me busy around the house, apparently im driving my wife crazy..... I plan on doing a holley setup again, i have not figured out what im going to do for an ignition system, and i plan on doing an s5 5 lug swap. I figure that will keep me busy for now and then more later
He also took out the stock ignition system and installed 2 msd coils, but he sold the rest of the ignition system in the "part-out"...... So all i have is the 2 coils and no wiring. Its going to be A TON of work, but i wanted something to keep me busy around the house, apparently im driving my wife crazy..... I plan on doing a holley setup again, i have not figured out what im going to do for an ignition system, and i plan on doing an s5 5 lug swap. I figure that will keep me busy for now and then more later
06-15-12, 06:24 PM
#5
Rotary Enthusiast
Well i just picked this up yesterday. Its an 88 base, 245xxx on the chassis, and about 1500 on the motor. Interior is blue and in pretty good shape for its age, only thing broke is the bezel around the radio area. The motor is a full bridgeport converted to a holley carb setup, it has 84 se 4 port irons and 88 s4 na housings and internals. The guy i bought it from had been trying to sell it but got impatient so he started parting it out. He sold the intake and carb He also took out the stock ignition system and installed 2 msd coils, but he sold the rest of the ignition system in the "part-out"...... So all i have is the 2 coils and no wiring.
Its going to be A TON of work, but i wanted something to keep me busy around the house, apparently im driving my wife crazy..... I plan on doing a holley setup again, i have not figured out what im going to do for an ignition system, and i plan on doing an s5 5 lug swap. I figure that will keep me busy for now and then more later
He also took out the stock ignition system and installed 2 msd coils, but he sold the rest of the ignition system in the "part-out"...... So all i have is the 2 coils and no wiring. Its going to be A TON of work, but i wanted something to keep me busy around the house, apparently im driving my wife crazy..... I plan on doing a holley setup again, i have not figured out what im going to do for an ignition system, and i plan on doing an s5 5 lug swap. I figure that will keep me busy for now and then more later
Last edited by ben.farnath; 06-15-12 at 06:26 PM.
06-15-12, 07:46 PM
#6
Senior Member
Thread Starter
iTrader: (2)
Join Date: Apr 2006
Location: LRAFB AR
Posts: 299
Likes: 0
Received 0 Likes
on
0 Posts
SirCygnus,
Well im going carb for now because the injector holes are filled with devcon, and i dont want to go throttle body and standalone at the moment.
ben.farnath,
Im torn between an IDA or holley setup, im going to shop around and see whats out there. Also im going to get an MSD 6A and wire it with a dizzy. And randomly there where some gilmour pulleys on some non-rx7 parts n the back of the car when bought it.
Well im going carb for now because the injector holes are filled with devcon, and i dont want to go throttle body and standalone at the moment.
ben.farnath,
Im torn between an IDA or holley setup, im going to shop around and see whats out there. Also im going to get an MSD 6A and wire it with a dizzy. And randomly there where some gilmour pulleys on some non-rx7 parts n the back of the car when bought it.
06-17-12, 08:19 AM
#12
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
The S4 bezel always gets brittle and cracks. You can upgrade to the more durable rubber-type S5 bezel if you also install S5 AC grilles above the bezel.
A 4-port bridge port usually works best with a Holley 650 or Weber 51 IDA. The bad thing about the Holleys is that they require some modifications in order to work well on a rotary, so you would need to have one modified by Racing Beat or a similar rotary shop, or otherwise modify it yourself if your carb skills are at the professional level.
You may also want to check and make sure the previous owner installed a proper low-pressure fuel pump. I have seen a lot of ignorant conversions that retained the stock EFI pump.
I actually like the 4-lug wheels. They are light, the tires are less expensive, and the brakes work just fine for street and autocross use. Since your engine will produce about 190kW, then you may want the larger 5-lug wheels, but I don't foresee see any crisis if you stick with the 4-lugs.
A 4-port bridge port usually works best with a Holley 650 or Weber 51 IDA. The bad thing about the Holleys is that they require some modifications in order to work well on a rotary, so you would need to have one modified by Racing Beat or a similar rotary shop, or otherwise modify it yourself if your carb skills are at the professional level.
You may also want to check and make sure the previous owner installed a proper low-pressure fuel pump. I have seen a lot of ignorant conversions that retained the stock EFI pump.
I actually like the 4-lug wheels. They are light, the tires are less expensive, and the brakes work just fine for street and autocross use. Since your engine will produce about 190kW, then you may want the larger 5-lug wheels, but I don't foresee see any crisis if you stick with the 4-lugs.
06-17-12, 04:39 PM
#14
Senior Member
Thread Starter
iTrader: (2)
Join Date: Apr 2006
Location: LRAFB AR
Posts: 299
Likes: 0
Received 0 Likes
on
0 Posts

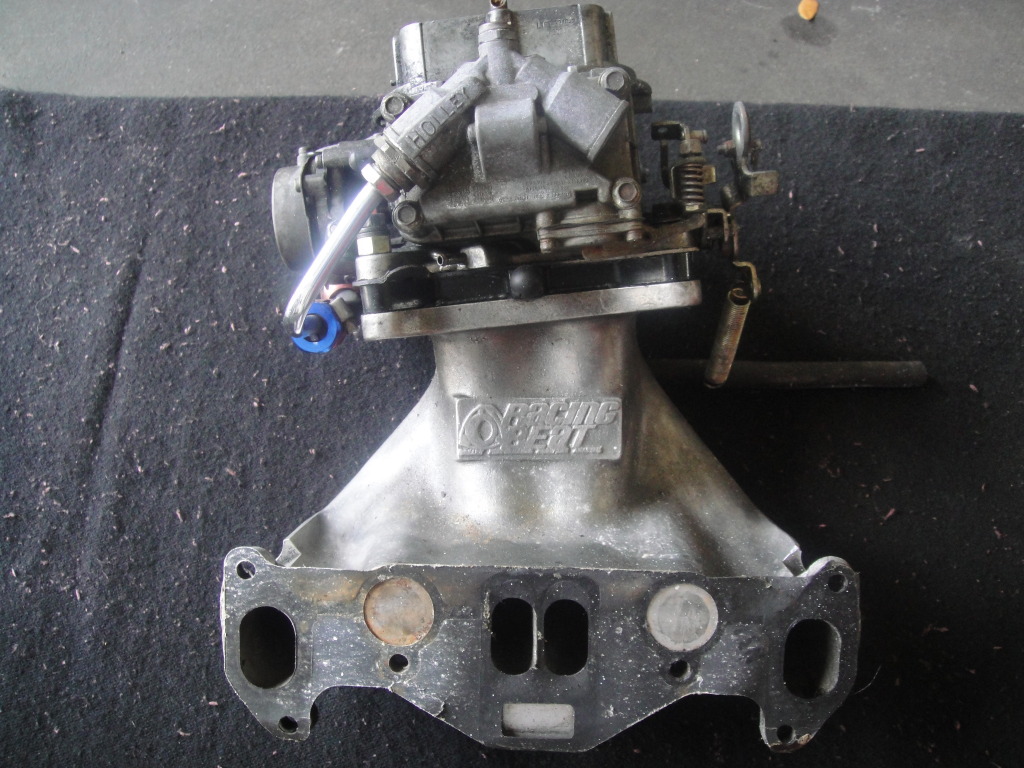

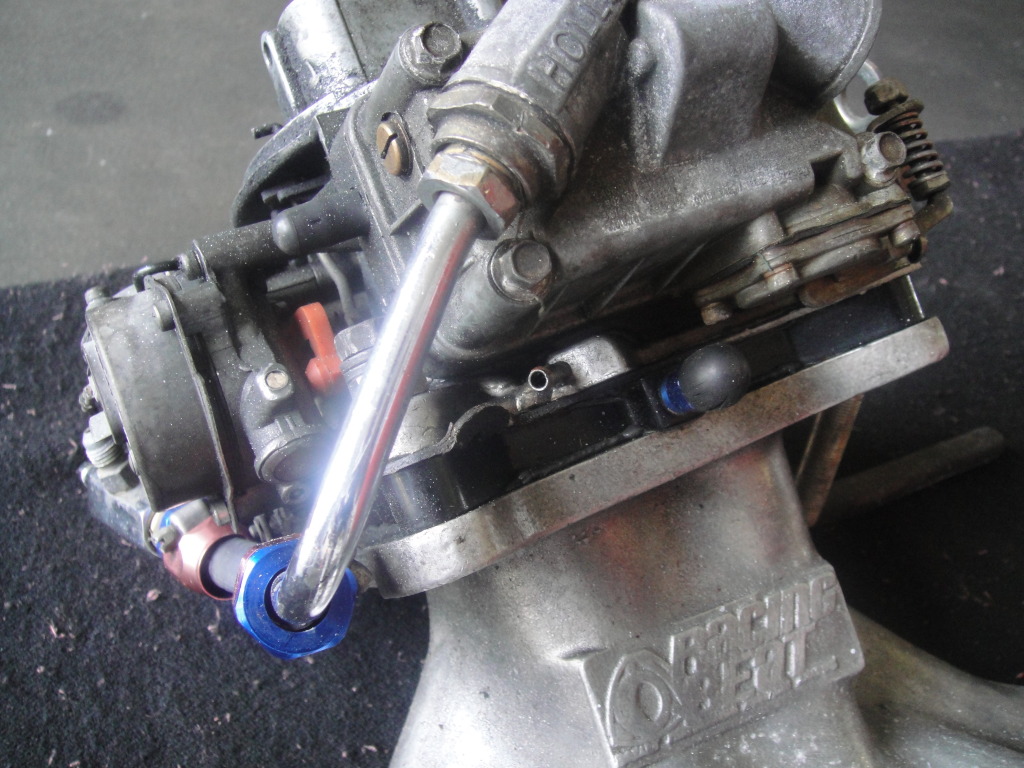

Well i found a guy local selling what he says is a racing beat holley 650 dp with mech sec. but it has an electric choke??? He's not asking too much, would it be a good buy or should i find one with manual choke? What do you guys think?
06-17-12, 04:47 PM
#15
That intake is for a old school 4 port block(pre 85 13b)or a 13b build with 12a plates and i doubt that you have a old motor in yours.That is a downgrade if they replace the 6 port motor with that plus you have 2 address motor mounts and some other stuff 2 make it fit on your chassis.
