Neo SAFC
07-01-08, 03:16 PM
#1
Full Member
Thread Starter
iTrader: (2)
Join Date: Feb 2008
Location: Dallas
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Neo SAFC
First off, I have searched and did read the FAQs on the SAFC forum, so now it is question time. I Just installed a NEO SAFC in my 91 non turbo. I did everything I was supposed to, when I powered the car on(no startingthe engine just getting the idiot lights all on) and programmed according to my instructions. The minute I started the car it started ran for about 3 seconds and shut off(similiar filling to not have your MAF sensor plugged in). I am lost as I have no idea what to do, any help would be greatly apprectaed! Thanks
07-01-08, 03:29 PM
#2
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Can't you read the output of the afm on the SAFC????? If so, what is the value? You should be able to do this with the key to just ON, engine OFF.
Off hand it sounds like that wire from the AFM is open.
You'd go to SENSOR CHECK as shown on page 39 of the free online manual, and read what the IN1 voltage is.........or is not.
I'm not a NEO owner, just owned a SAFC once upon a time long ago in a far away land.
Off hand it sounds like that wire from the AFM is open.
You'd go to SENSOR CHECK as shown on page 39 of the free online manual, and read what the IN1 voltage is.........or is not.
I'm not a NEO owner, just owned a SAFC once upon a time long ago in a far away land.
Last edited by HAILERS; 07-01-08 at 03:53 PM.
07-01-08, 03:51 PM
#4
Rotary Freak
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts
^ Ah theres the problem right there!
I don't know how the S5 ECUs act with the AFM wire open but on S4s the engine just runs real real rich. Different than if you unplug the AFM where it will run for 3 seconds and die. BUT, possibly maybe S5 ecus are different and what HAILERS stated is true.
Sure you don't have the Input and Output reversed for the AFM?
I don't know how the S5 ECUs act with the AFM wire open but on S4s the engine just runs real real rich. Different than if you unplug the AFM where it will run for 3 seconds and die. BUT, possibly maybe S5 ecus are different and what HAILERS stated is true.
Sure you don't have the Input and Output reversed for the AFM?
07-01-08, 03:59 PM
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

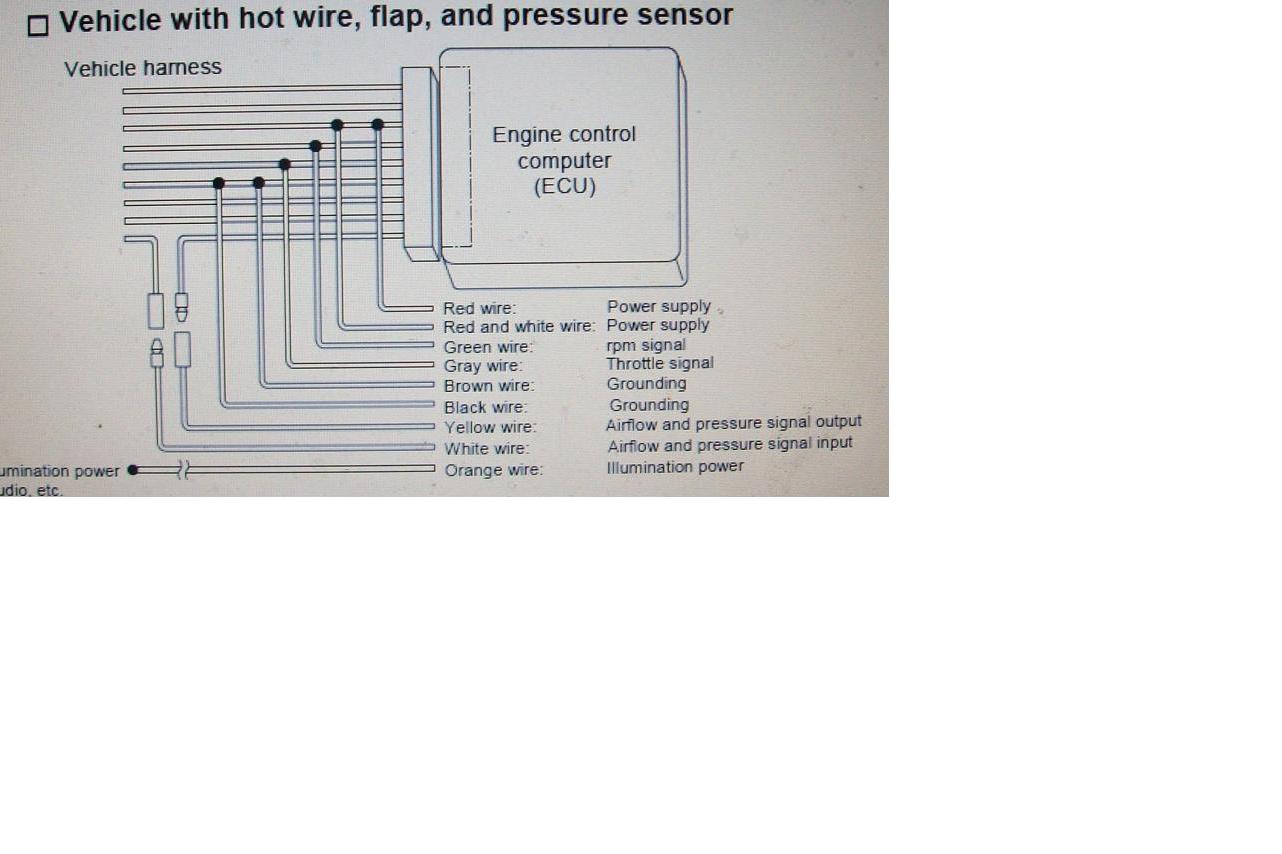

It seems you need to check the yellow AND white wires installation on the NEO.
Wiring and Installation documents found here: http://www.apexi-usa.com/support_wiring.asp
EDIT: And now for the snotty remark of the day: I think I'd have spent a few bucks more and bought a RTEK
Wiring and Installation documents found here: http://www.apexi-usa.com/support_wiring.asp
EDIT: And now for the snotty remark of the day: I think I'd have spent a few bucks more and bought a RTEK
Last edited by HAILERS; 07-01-08 at 04:27 PM.
07-01-08, 09:33 PM
#7
Full Member
Thread Starter
iTrader: (2)
Join Date: Feb 2008
Location: Dallas
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
thanks for the help guys, I will check it out...and as far as your "snooty" remark, I bout the neo for 150 off of craigslist...I am going to get a stand alone once I get some real power!
Trending Topics
07-03-08, 05:08 PM
#10
Rotary Freak
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts
There was a snooty remark?
figured it out, I did have the wires backwards, so much for my mantra of measure twice cut once...i am an AR-Tard!
