I'ved purchased a Greddy Injector Controller Rebic 1.[used,but working condition]No wiring diagram,so i'm stumped.The controller has a Black,Green and Orange wires.Then there's a Red and Black wires plus an additional Black wire that comes from the engine bay to inside the car to a brain box.Maybe it hooks up to the lead coil[positive and negative] and the little pig-tail bullet type wire also goes to the coil for RPM pick-up?For the controller itself i know the black is ground,but what's the Orange and Green for?IS is for ignition turn key and constant?Any input will be GREATLY appreciated.Thanks.



Go to the GREEDY USA dot com site. They have the instruction manual for the Rebic IV. But they also have a number you can call for information about YOUR unit.



THANKS man!



http://www.greddy.com/

http://www.greddy.com/tech/



this site only shows for rebic IV controller and what i have is a Rebic I,they're totally different.But still thanks for your help.I guest i'll have to call.



WHY are you using one of these things? you shouldn't need additional injectors unless you need a ridiculous amount of fuel. Upgrade your secondarys.



___**********

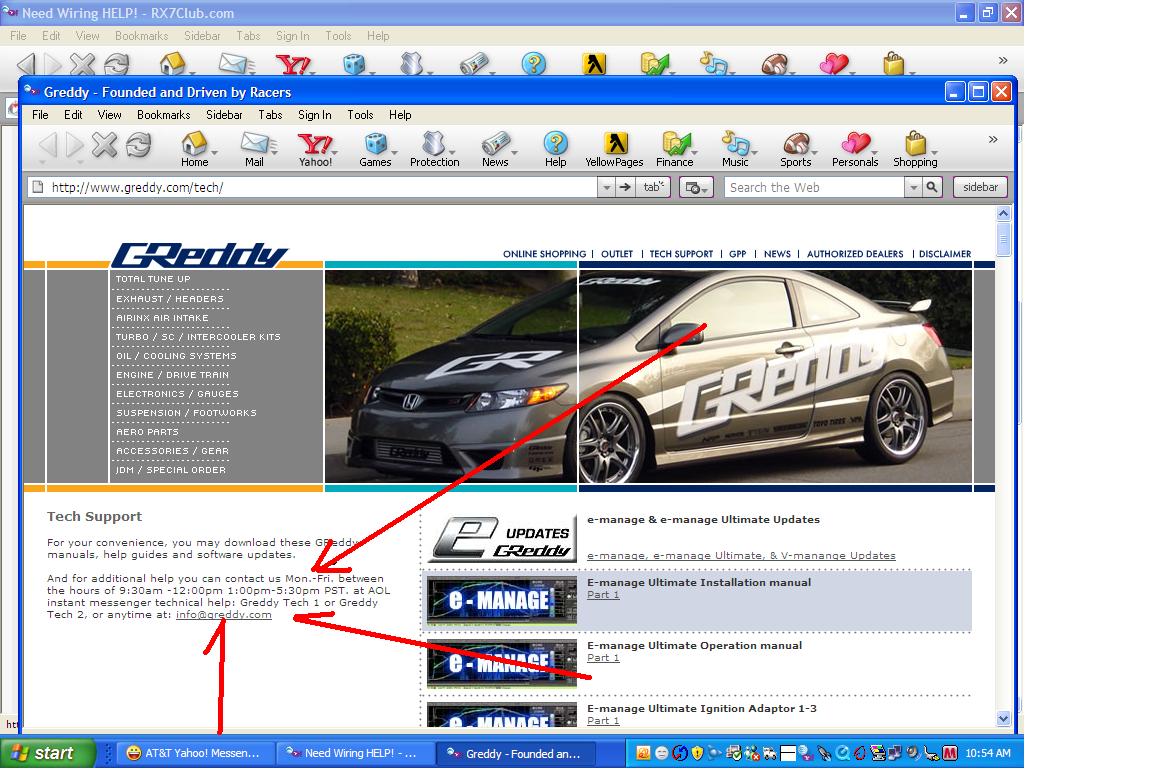

. See the bottom of the attached jpg.
