need Vaccum hose Diagram for 89-91 Turbo Model..

Reply Subscribe

Thread Tools

Search this Thread

Jul 30, 2005 | 09:48 PM

theone81

Thread Starter

Senior Member

Joined: Mar 2003

Posts: 463

Likes: 0

From: Ca

need Vaccum hose Diagram for 89-91 Turbo Model..

I need Pictures arond the Upper Intake Manifold area.. anything that you guys have. i need to put this thing together.

Jul 31, 2005 | 01:27 AM

NZConvertible

I'm a boost creep...

Joined: Jan 2002

Posts: 15,608

Likes: 8

From: Auckland, New Zealand

Go to www.iluvmyrx7.com/2nd_gen_manuals.htm and download the Factory Service Manual (FSM) in PDF format for free. The vac diagram is in there.

Aug 1, 2005 | 09:20 AM

RETed

Lives on the Forum

Joined: Feb 2001

Posts: 26,664

Likes: 22

From: n

Hmmm...how about under the hood?

-Ted

Aug 1, 2005 | 12:21 PM

silverrotor

Moderator

iTrader: (1)

Joined: Mar 2002

Posts: 7,592

Likes: 5

From: Toronto, Corporate Canada

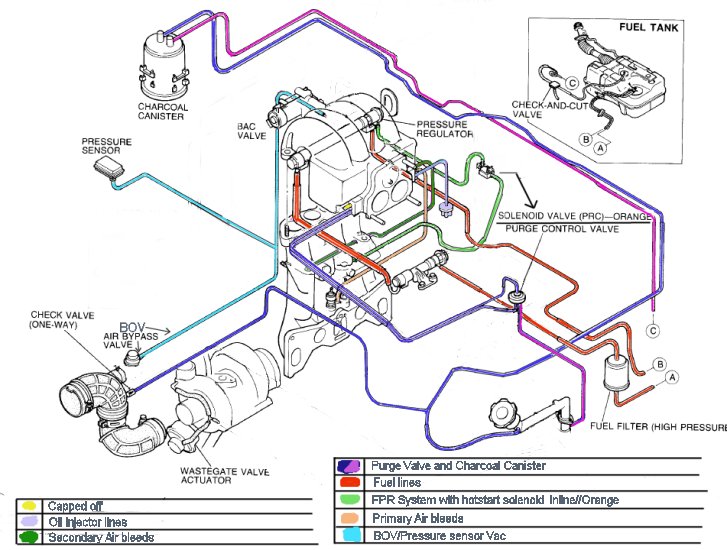

This Is for a s4 though
