Need Reference Pictures
Need pictures of how the power wiring is run through the doors, i just dont know where on the door the wiring clips to. a single picture would do
GOT-RTRY is offline
Reply Like
Old 02-01-09, 09:00 PM
  #2
Registered Loser

iTrader: (6)

walken's Avatar

Join Date: Dec 2002
Location: Whiterock
Posts: 2,224
Likes: 0
Received 0 Likes on 0 Posts
you can't get it wrong and if you broke the clips just zip tie the wires and make sure the windows rolls down without interference.
walken is offline
Reply Like
Old 02-01-09, 09:16 PM
  #3
not a drifter

iTrader: (133)

87 t-66's Avatar

Join Date: Jun 2004
Location: Columbus, Ohio
Posts: 9,337
Received 5 Likes on 5 Posts
i can probably snap a pic tomorrow...i have my pass door panel off already.
87 t-66 is offline
Reply Like
Old 02-03-09, 05:08 PM
  #4
Rabbit hole specialist

iTrader: (11)

JerryLH3's Avatar

Join Date: Feb 2001
Location: Tampa, FL
Posts: 2,823
Received 212 Likes on 130 Posts

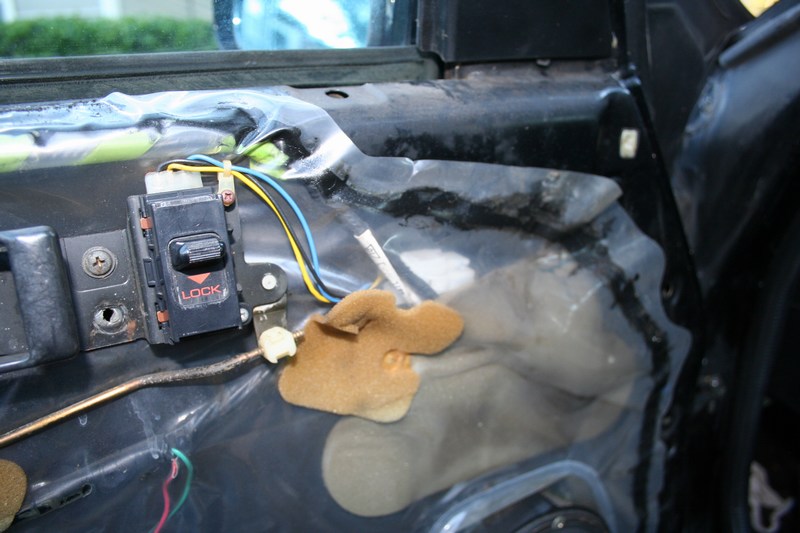

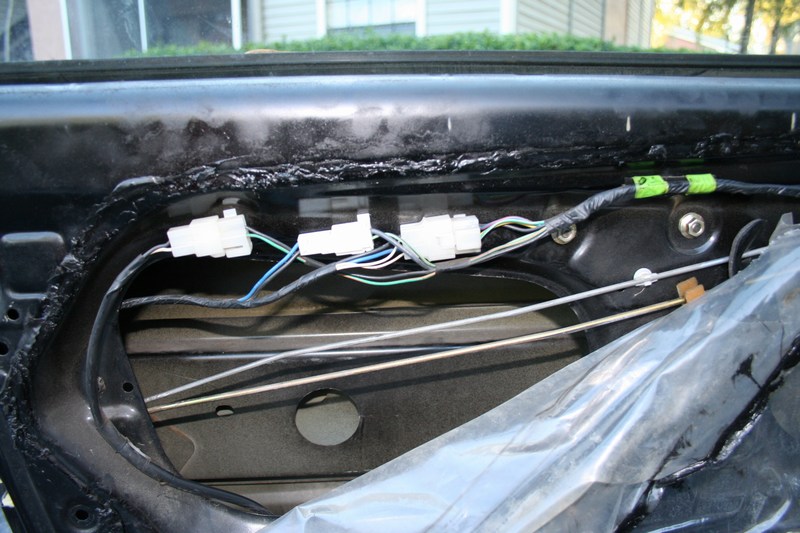

Here you go.

I needed to check on the window regulator I just replaced so you were in luck. I took these with my DSLR, so if you need higher resolution, just PM me your email address.
Attached Thumbnails Need Reference Pictures-mini-img_2997.jpg   Need Reference Pictures-mini-img_2998.jpg   Need Reference Pictures-mini-img_2999.jpg   Need Reference Pictures-mini-img_3000.jpg
