Need Help with some Coil w/ ignitor wiring!
04-30-05, 01:53 PM
#1
Rotary Enthusiast
Thread Starter
Join Date: Feb 2005
Location: Norway
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
Need Help with some Coil w/ ignitor wiring!

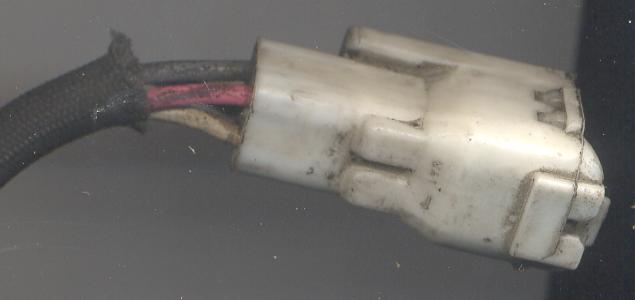

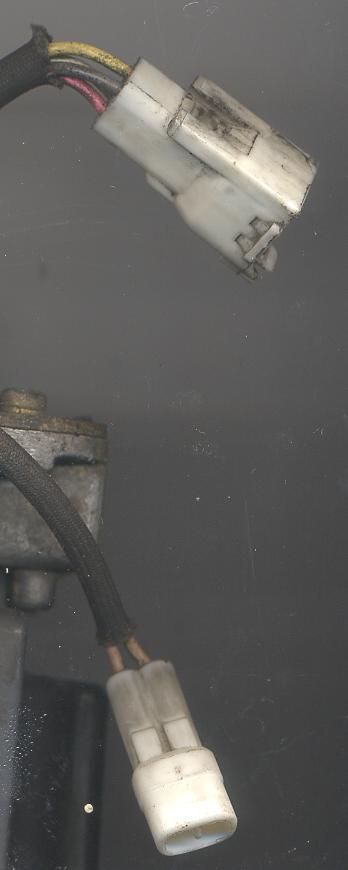

I have a T2 88mod and i need some pictures of the T-coil with ignitor and the connector. The picture must show the color on the wires on both sides of the connector..
Thank you
Thank you
04-30-05, 09:02 PM
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The fsm shows the connectors and the wire colors in each plug. The plug is ALWAYS viewed from the wire side of the connector.

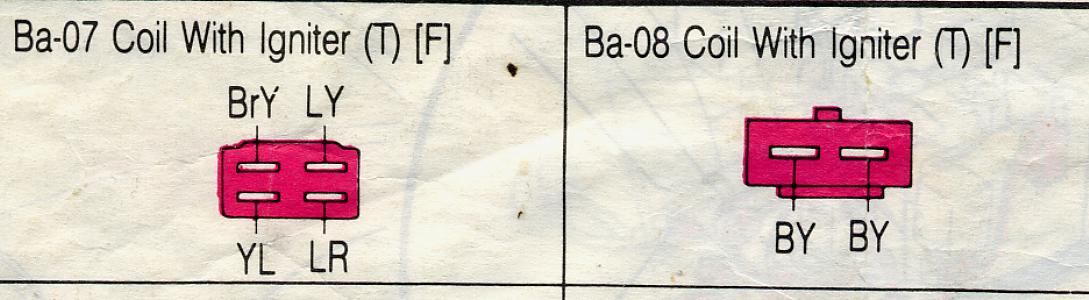

The fsm will not show the wire colors on the coil assy. It does show, in the red pic, the wires in the harness plug. That plug is part of the FRONT harness and that is what the F stands for in the description. The F with the brackets around it just to the right of the T for trail.
One of the four wires on the coil assy is not shown. I figure if you see three out of four you can figure out the fourth one.
The fsm will not show the wire colors on the coil assy. It does show, in the red pic, the wires in the harness plug. That plug is part of the FRONT harness and that is what the F stands for in the description. The F with the brackets around it just to the right of the T for trail.
One of the four wires on the coil assy is not shown. I figure if you see three out of four you can figure out the fourth one.
