Need help asap

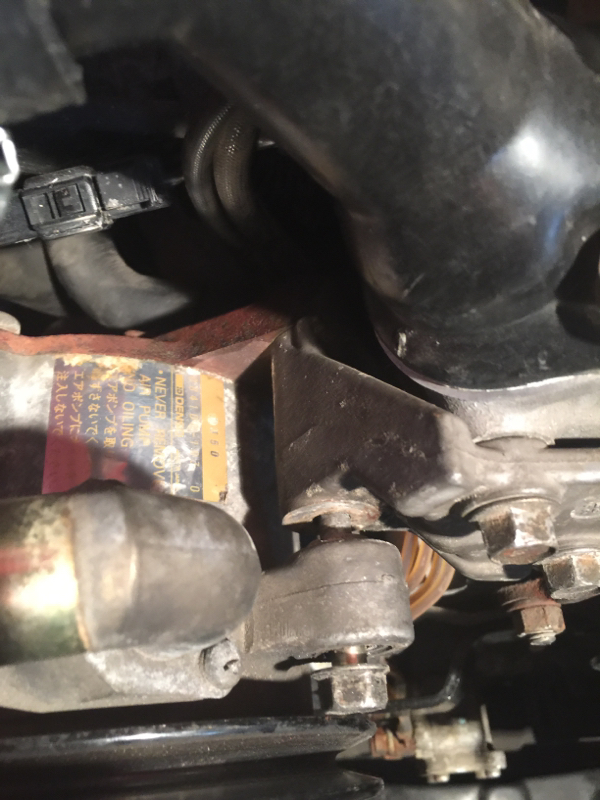

Am reinstalling an air pump on my S5 cause the top end is gone. I have everything lined up but there is a huge gap in the bracket with 3 bolts that mount to the air pump itself. (See picture) in the fsm it looks like there is supposed to be a sort of c-clip there to take up space. Does anyone know what that is, part number or a way to jury rig it for now?
05-01-16, 09:49 AM
#3
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
there should be a thick metal washer like spacer there...in between the pump and bracket.
looks like part # 15-103
any part numbers can be found in a parts fishe or manual on Foxed.ca
looks like part # 15-103
any part numbers can be found in a parts fishe or manual on Foxed.ca
