need help about a pulley issue

Thread Tools

Search this Thread

Old 02-14-05, 09:28 AM
  #1
JRB

Thread Starter

CodyHokieFD's Avatar

Join Date: Jul 2004
Location: Harrisonburg, VA
Posts: 310
Likes: 0
Received 1 Like on 1 Post
Question need help about a pulley issue

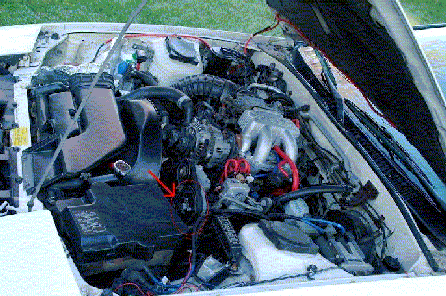

A while back I posted somewhere about a noise that seemed to be coming from my pullies. I believe I have determined that while my engine is running, the pulley that is shown in this picture makes somewhat of a scratching squeaking noise. Is it loose or has it gone bad? It sounds more like metal to metal and not like the sound of a loose belt. Is it perhaps a bearing problem? What kind of problem am I looking at here and how should I go about resolving it?


Thanks
Attached Thumbnails need help about a pulley issue-pulley-issue.gif
Old 02-14-05, 01:39 PM
  #2
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
There's no pully shown in your picture.

Old mechanics trick is to use a screwdriver to try and find noises. Hold the screwdriver against the part you suspect, and then put the handle up to your ear. It's really easy to find bad alternator/AC/airpump/waterpump bearings this way.
Old 02-14-05, 01:52 PM
  #3
Senior Member


bigturbo's Avatar

Join Date: Nov 2004
Location: co
Posts: 484
Likes: 0
Received 0 Likes on 0 Posts
yes it looks like what you circled is the ac pulley. Its really hard to see that tiny pic but thats what you circled and its def possible that the bearing is bad. If thats the case and not the belt then you would have to drain the a/c system(by law you should have it done by auth techs to save the ozone) and then either get a new pump from the junk yark or have your rebuilt. The other option is just to remove the belt that hooks to that and get one for a car with no a/c. That will make the sound go away for now but you wont have any a/c use. BUT of course thats IF the a/c bearing is the problem.
Old 02-14-05, 04:23 PM
  #4
JRB

Thread Starter

CodyHokieFD's Avatar

Join Date: Jul 2004
Location: Harrisonburg, VA
Posts: 310
Likes: 0
Received 1 Like on 1 Post
Ok thanks guys, sorry that the picture is so small. I will maybe try to attatch a new one this evening. Ill have to check it out.

thanks
Old 02-14-05, 04:33 PM
  #5
Rabbit hole specialist

iTrader: (11)

JerryLH3's Avatar

Join Date: Feb 2001
Location: Tampa, FL
Posts: 2,823
Received 212 Likes on 130 Posts
Originally Posted by bigturbo
yes it looks like what you circled is the ac pulley.
It actually looks more on top, so that would make it the PS pulley.
