motor inspection
#1
Full Member
Thread Starter
iTrader: (1)
Join Date: Jan 2010
Location: mn
Posts: 64
Likes: 0
Received 0 Likes
on
0 Posts
motor inspection
tomorrow i plan to look at a s5 jdm turbo2 motor, what are some things to check and to look out for. i plan to take pics and post them on this web site. any tips will help thanks
#3
Law Breaker
Join Date: Oct 2005
Location: S.F. Bay Area, California 510
Posts: 3,333
Likes: 0
Received 0 Likes
on
0 Posts
compression test is always at the top of the list. if it passes after that, use a flashlight and verify that all parts are there and their overall condition. also make sure it is really a s5...
#7
Rotary Freak
iTrader: (6)
^Son of a... beat me to it... Look for the oil metering pump (electric=S5 has wires, mechanical=S4 has a rod to the throttle body) and the exhaust manifold (short and square bolt pattern=S5, angled and not square=S4)
W/o a starter on the engine its going to be hard to get a good compression reading... turn it over a few times and pull the plugs and look for coolant (green fluid) turn it over after pulling the plugs and see if anything comes out (water/rust=no good)
Good luck!
W/o a starter on the engine its going to be hard to get a good compression reading... turn it over a few times and pull the plugs and look for coolant (green fluid) turn it over after pulling the plugs and see if anything comes out (water/rust=no good)
Good luck!
Trending Topics
#8
Boost makes cars smile.
iTrader: (5)
Join Date: May 2005
Location: ...
Posts: 1,424
Likes: 0
Received 0 Likes
on
0 Posts
As well, though it'll probably be a dry engine, look in the oil and see if it's gritty, chunky or milky.
Part of that inspection can be accomplished by simply pulling the oil-fill and wiping a finger around that ridge.
Other than that, pulling the drain-plug would be a primo.
Part of that inspection can be accomplished by simply pulling the oil-fill and wiping a finger around that ridge.
Other than that, pulling the drain-plug would be a primo.
#9
Full Member
Thread Starter
iTrader: (1)
Join Date: Jan 2010
Location: mn
Posts: 64
Likes: 0
Received 0 Likes
on
0 Posts
k so i check it out to day and after sping it over by hand i didnt get any puffs from the front rotor, really strong puffs from the rear none form the front. glad i dint by it at that point, so i put some atf in the front rotor on all 3 seals. looked around more check things out it for shure was a s5 - e-omp. came back to the rotor turned it over and got 3 lil puffs not like the rear but more that what we started with, thinkin maybe some seals stuck? idk, i got a bunch of pics, trying to put them up but super slow comp
#12
Rotary Enthusiast
iTrader: (14)
Join Date: Mar 2009
Location: the dalles
Posts: 1,161
Likes: 0
Received 0 Likes
on
0 Posts

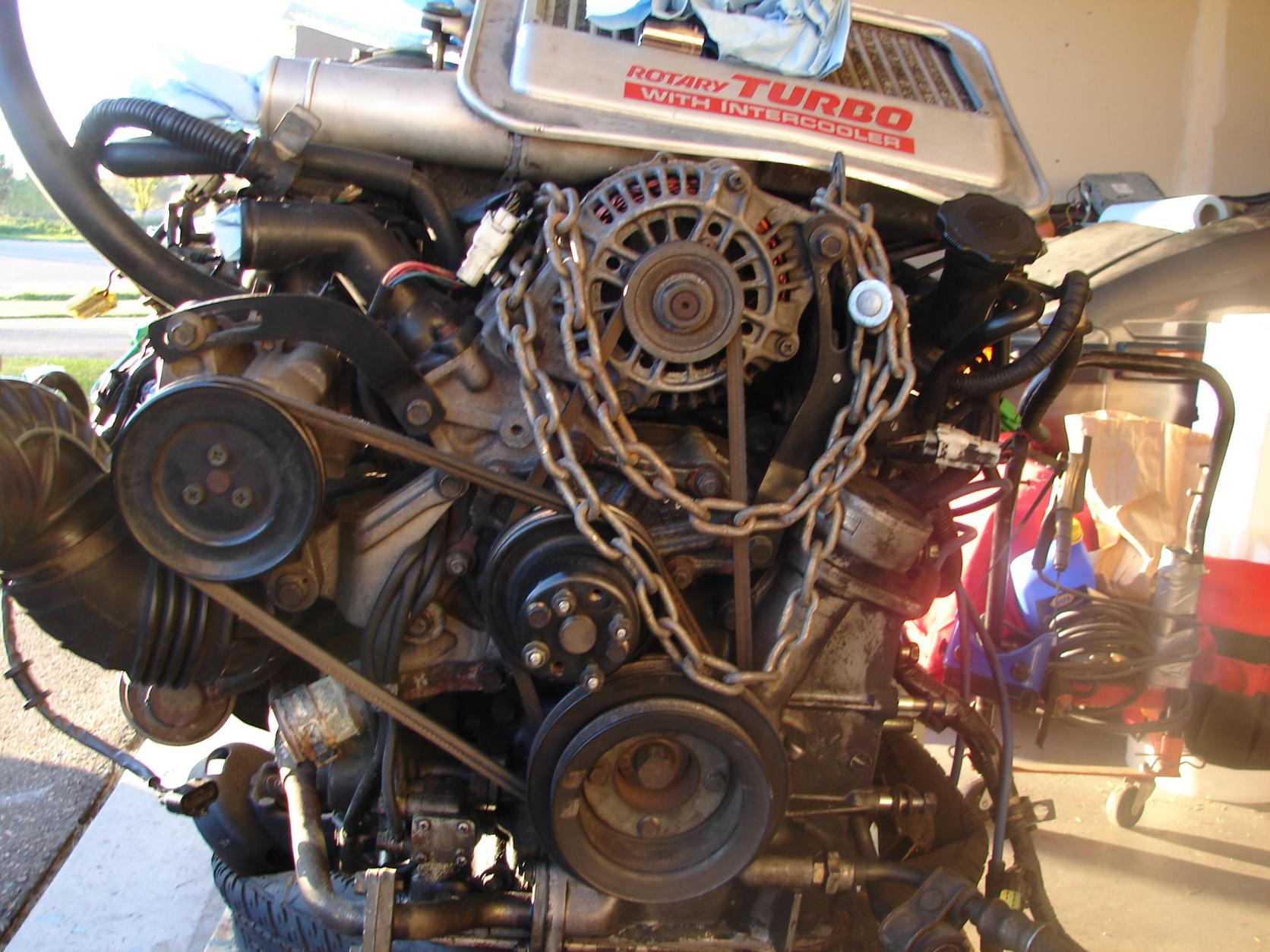

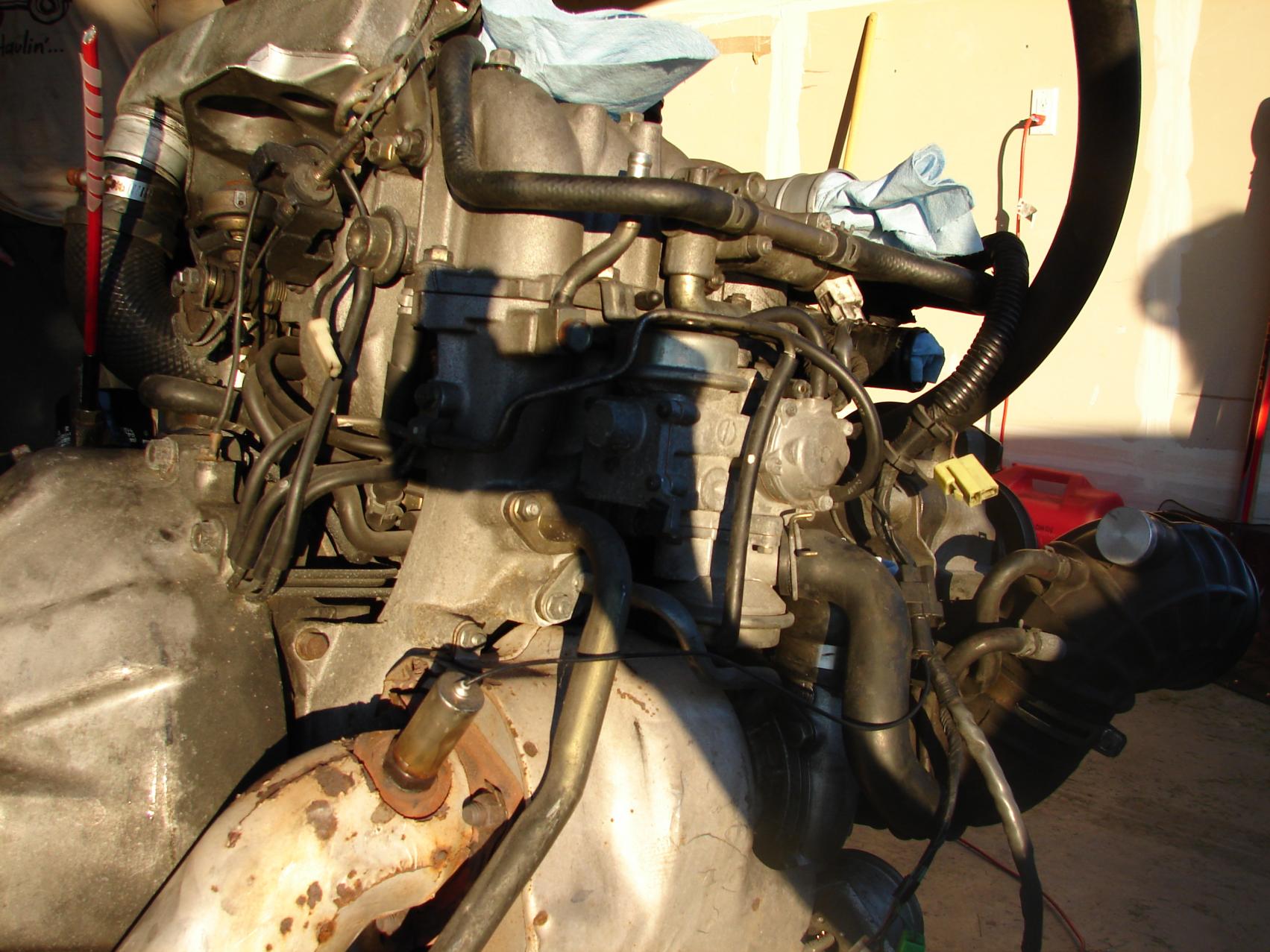

well from the last two pics it appears to be s5. the others are too tiny to tell. and also when checkin out a motor an easy way to tell its got bad coolant seals is just a smell. everyone here has to know what im talkin about. cooked oil and coolant have a very distinct smell
#13
Full Member
Thread Starter
iTrader: (1)
Join Date: Jan 2010
Location: mn
Posts: 64
Likes: 0
Received 0 Likes
on
0 Posts
yeah sorry about the pics,iam gunna retry later, what do you think about the motor it deffintly didnt have coolant in the houseing look dry and no rust, the atf made it have some puffs ima call the dude back in a few and see if the atf is doing its trick, he said it sat there for a wile
