Manual steering rack bushing part numbers?

Reply



Old 03-26-16, 09:59 AM
  #26
Rotary Enthusiast
iTrader: (1)

Join Date: Feb 2012
Location: CA
Posts: 1,075
Thanks: 0
Thanked 0 Times in 0 Posts
are the poly ones going to be molded, or machined? I haven't come around to it. but I may think about making delrin ones for my car. I need to look at it and measure it out. I don't think I will be trying to sell fc parts this time around though, I doubt it will be worth the effort. I'll let you kjnow LargeOrange in case you want a set. I'm in the middle of other things for my car at the moment, so I wont have time to start a new project until a while
GrossPolluter is offline
Reply With Quote
Old 03-26-16, 01:23 PM
  #27
Fistful of steel
Thread Starter
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,094
Thanked 5 Times in 5 Posts
These are going to be molded... If I can find a bushing.
LargeOrangeFont is offline
Reply With Quote
Old 03-26-16, 01:26 PM
  #28
Senior Member

Nosferatu's Avatar

Join Date: Mar 2006
Location: Bear Cage
Posts: 261
Thanks: 0
Thanked 4 Times in 4 Posts
what kind of time frame would these be available if you find a bushing?
Nosferatu is offline
Reply With Quote
Old 03-26-16, 04:04 PM
  #29
Fistful of steel
Thread Starter
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,094
Thanked 5 Times in 5 Posts
Couple weeks until prototype.
LargeOrangeFont is offline
Reply With Quote
Old 03-27-16, 11:04 AM
  #30
Dirty Harry
iTrader: (5)

MaczPayne's Avatar

Join Date: Dec 2005
Location: California
Posts: 5,658
Thanked 0 Times in 0 Posts
Been looking for one of these as well for my brother's build.

Are the brackets (FB01-32-133) available still?
MaczPayne is offline
Reply With Quote
Old 03-27-16, 11:23 AM
  #31
1308ccs of awesome
iTrader: (9)

eage8's Avatar

Join Date: Sep 2003
Location: Woodbine, MD
Posts: 6,136
Thanked 6 Times in 6 Posts
Originally Posted by MaczPayne View Post
Been looking for one of these as well for my brother's build.

Are the brackets (FB01-32-133) available still?
Nope, I checked in an earlier post
eage8 is offline
Reply With Quote
Old 03-29-16, 12:44 PM
  #32
Full Member
iTrader: (1)

clean87's Avatar

Join Date: May 2008
Location: orono canada
Posts: 148
Thanks: 0
Thanked 0 Times in 0 Posts
i measured the manual rack at 32mm. searched ebay and there are a few options for 32mm sway bar bushing that are the same, dodge ram and mid 90's camaro's .
may need to take a bit of the bottom off the bushing but i think these should work fine, and like clokker said you have one to practice on.

here are some links iam going to order a set today i will let you know how it turns out

Front Polyurethane 32mm Swaybar Bushings 1993 2002 Chevy Camaro Pontiac Firebird | eBay


19 1148 BL Prothane Poly 32mm Universal Sway BAR Bushing KIT B Bracket Tundra | eBay
clean87 is offline
Reply With Quote
Old 03-31-16, 12:45 PM
  #33
Full Member
iTrader: (1)

clean87's Avatar

Join Date: May 2008
Location: orono canada
Posts: 148
Thanks: 0
Thanked 0 Times in 0 Posts
bushings came in only took two days ordered straight from energy suspension.

fits great just have to slightly elongate the holes for the bracket 1/8'' on each side at most.

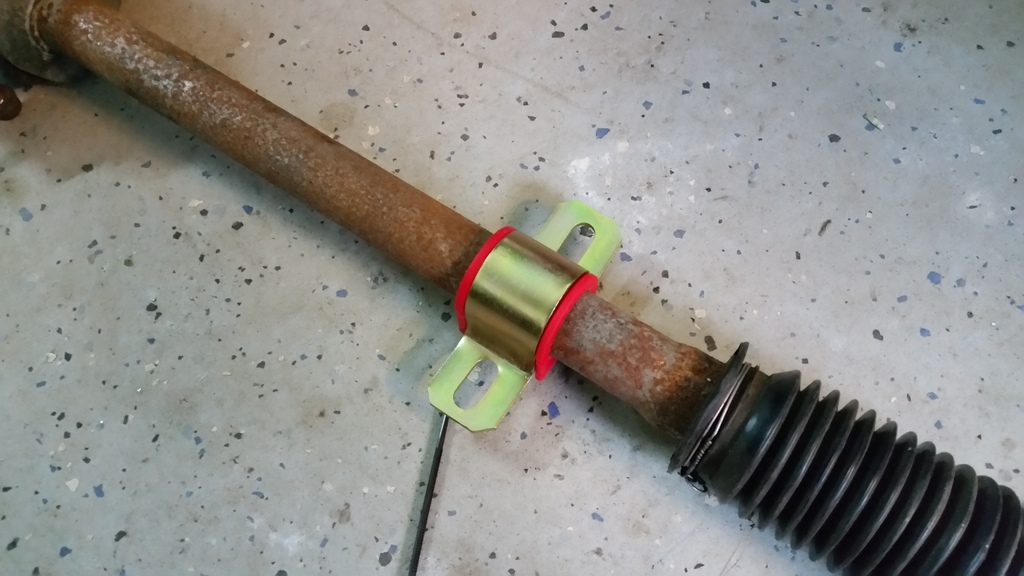

Name:  20160331_121253_zpsg5rdiozt.jpg
Views: 122
Size:  187.1 KB

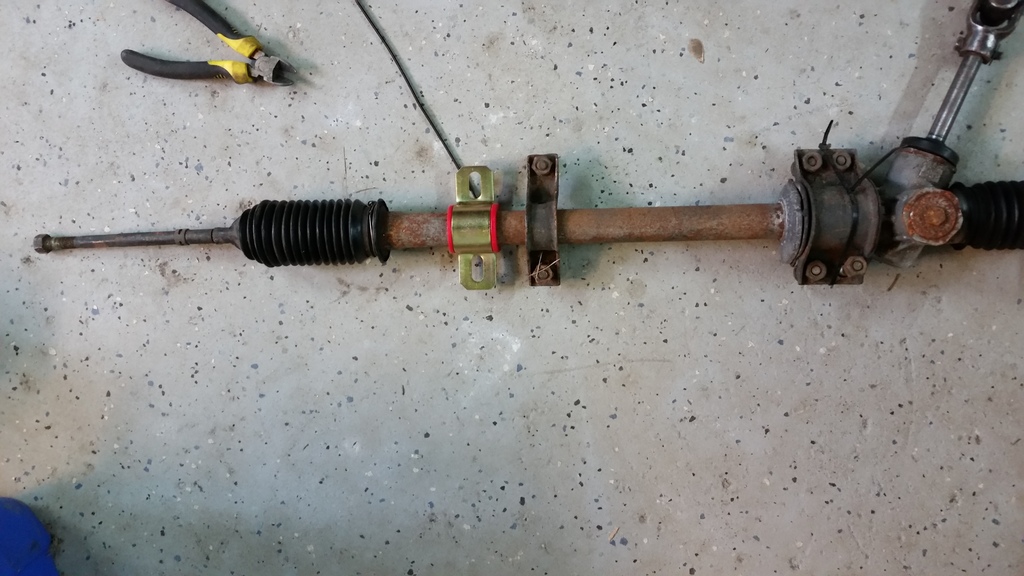

Name:  20160331_121322_zpszjggcd0f.jpg
Views: 120
Size:  222.5 KB

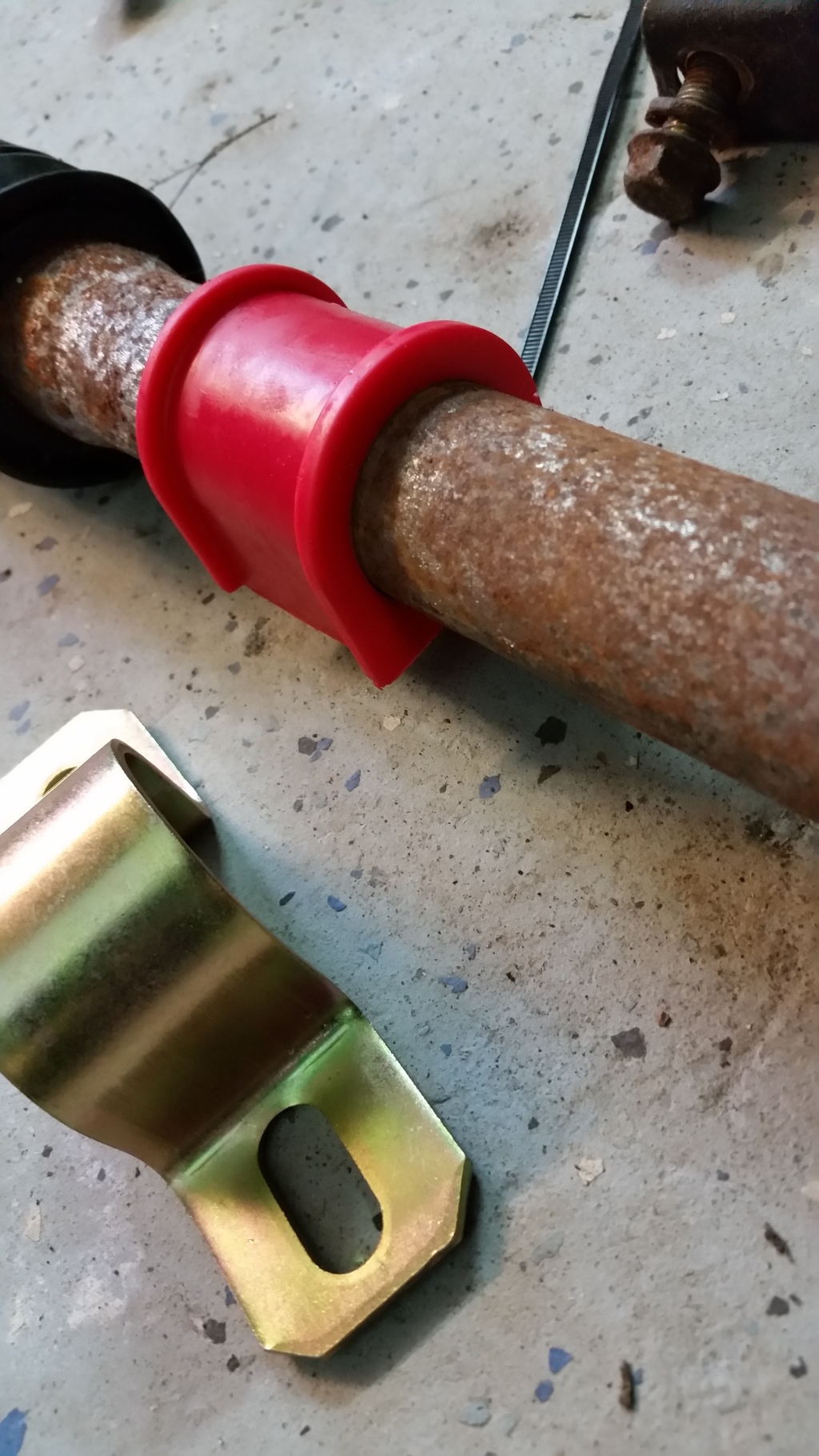

Name:  20160331_121503_zpsddrl1ojf.jpg
Views: 121
Size:  497.3 KB


just have to clean up the rack and paint it and i will post finished pictures

i used the universal 32mm one i listed in the above post.
clean87 is offline
Reply With Quote
Old 04-11-16, 10:32 PM
  #34
Full Member
iTrader: (1)

clean87's Avatar

Join Date: May 2008
Location: orono canada
Posts: 148
Thanks: 0
Thanked 0 Times in 0 Posts

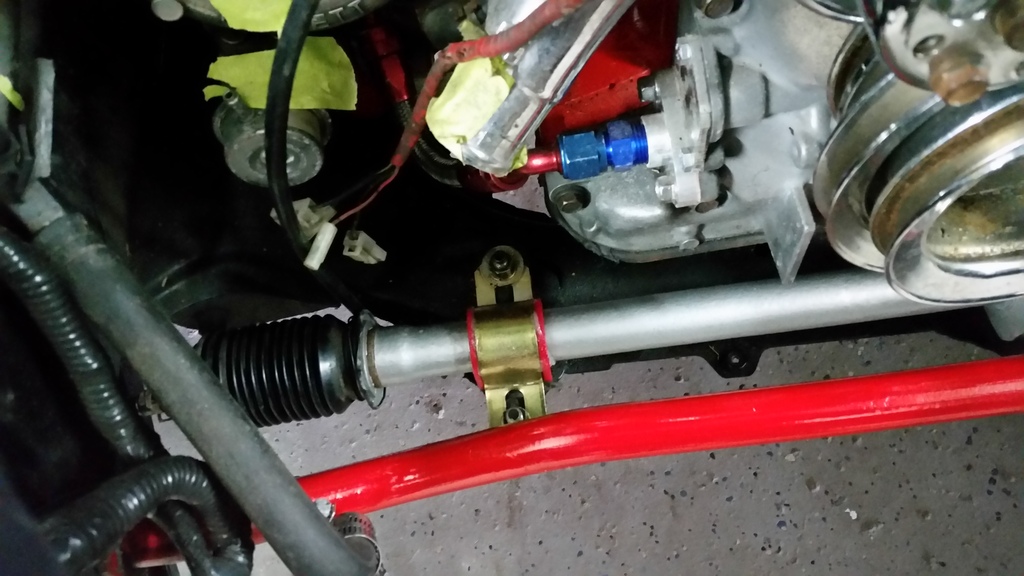

All done with the install. Had to slot one side of the mount 1/2" and i welded a washer on to be safe. But overall very easy and fits nice and tight.
Name:  20160411_101937_zpslmdft2su.jpg
Views: 121
Size:  191.8 KB
clean87 is offline
Reply With Quote
Old 04-11-16, 10:47 PM
  #35
Full Member
iTrader: (1)

Join Date: Jul 2011
Location: Sydney, Australia
Posts: 138
Thanks: 0
Thanked 0 Times in 0 Posts

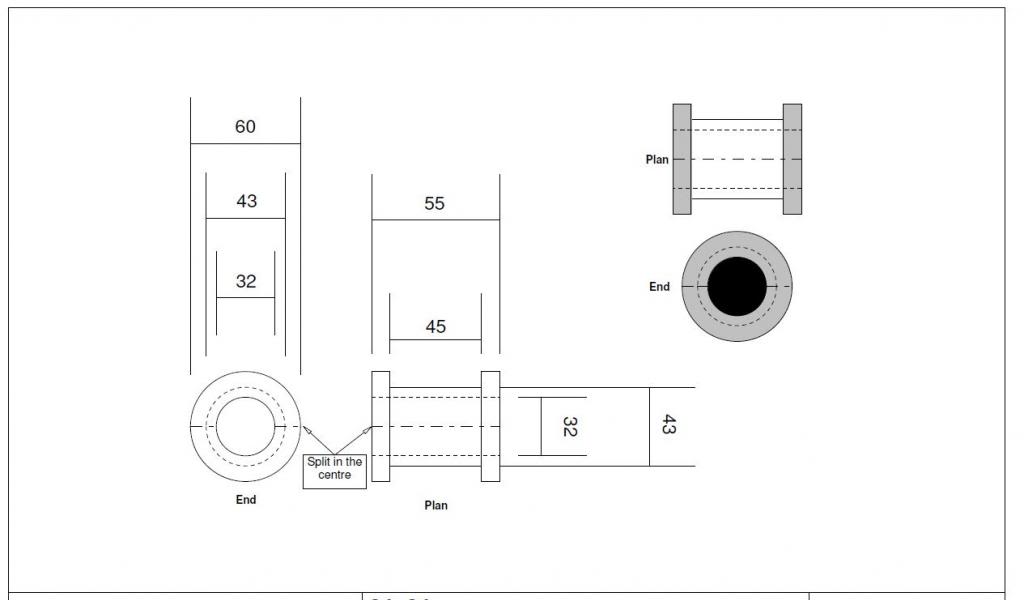

I just used a power steering bushing and got a friend to make a billet adapter to increase the diameter of the non power rack to match the power steering rack. Pretty simple design but it works perfect and can still order bushings from mazda.

Name:  bush_zps9cc722fc.jpg
Views: 118
Size:  26.7 KB
Cambo_88 is offline
Reply With Quote
Old 04-12-16, 12:18 PM
  #36
NA-BOOSTIN

unek87's Avatar

Join Date: Oct 2004
Location: austin,tx
Posts: 1,203
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks both of you guys for the ideas .
unek87 is offline
Reply With Quote
Old 04-12-16, 03:28 PM
  #37
Rotary Enthusiast
iTrader: (1)

Join Date: Feb 2012
Location: CA
Posts: 1,075
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by clean87 View Post
All done with the install. Had to slot one side of the mount 1/2" and i welded a washer on to be safe. But overall very easy and fits nice and tight.
Is the height and alignment on it good? That look pretty good. My only question is what about the bottom where it isn't flat.
GrossPolluter is offline
Reply With Quote
Old 04-12-16, 09:34 PM
  #38
Fistful of steel
Thread Starter
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,094
Thanked 5 Times in 5 Posts
Angry

Originally Posted by Cambo_88 View Post
I just used a power steering bushing and got a friend to make a billet adapter to increase the diameter of the non power rack to match the power steering rack. Pretty simple design but it works perfect and can still order bushings from mazda.

Thanks... I'm going to try this. Did you use the power steering mount bracket as well?

Last edited by LargeOrangeFont; 04-12-16 at 10:44 PM.
LargeOrangeFont is offline
Reply With Quote
Old 04-12-16, 10:33 PM
  #39
Full Member
iTrader: (1)

clean87's Avatar

Join Date: May 2008
Location: orono canada
Posts: 148
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by GrossPolluter View Post
Is the height and alignment on it good? That look pretty good. My only question is what about the bottom where it isn't flat.
Sorry left that part out i added a small peice of metal under the bushing to space it up. Fit snug and the allignment was perfect.
clean87 is offline
Reply With Quote
Old 04-13-16, 01:20 AM
  #40
Full Member
iTrader: (1)

Join Date: Jul 2011
Location: Sydney, Australia
Posts: 138
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by LargeOrangeFont View Post
Thanks... I'm going to try this. Did you use the power steering mount bracket as well?
yep, mounting bracket and bushing is off my power steering setup, What it essentially does is increase the diameter of the non power steering rack to be the same diameter as the power steering rack.
Cambo_88 is offline
Reply With Quote
Old 08-28-17, 10:27 PM
  #41
Can Post Only in New Member Section

Join Date: Jul 2017
Location: Illinois
Posts: 4
Thanks: 0
Thanked 2 Times in 2 Posts
Hey guys,
New to the forums so sorry if the ateached pic comes out huge. I swapped my FC to manual steering and had the same problem finding poly bushings or even factory rubber ones for spares. Fortunately I had a good rubber version and sent it off to Ricochet Polyurethane Technologies for them to model a new Poly version with.
I'm not sure exactly when they'll be offering it, seeing as how the prototype was just delivered and installed today but now we have an actual option! They fit great, ship fast and are pretty cheap.

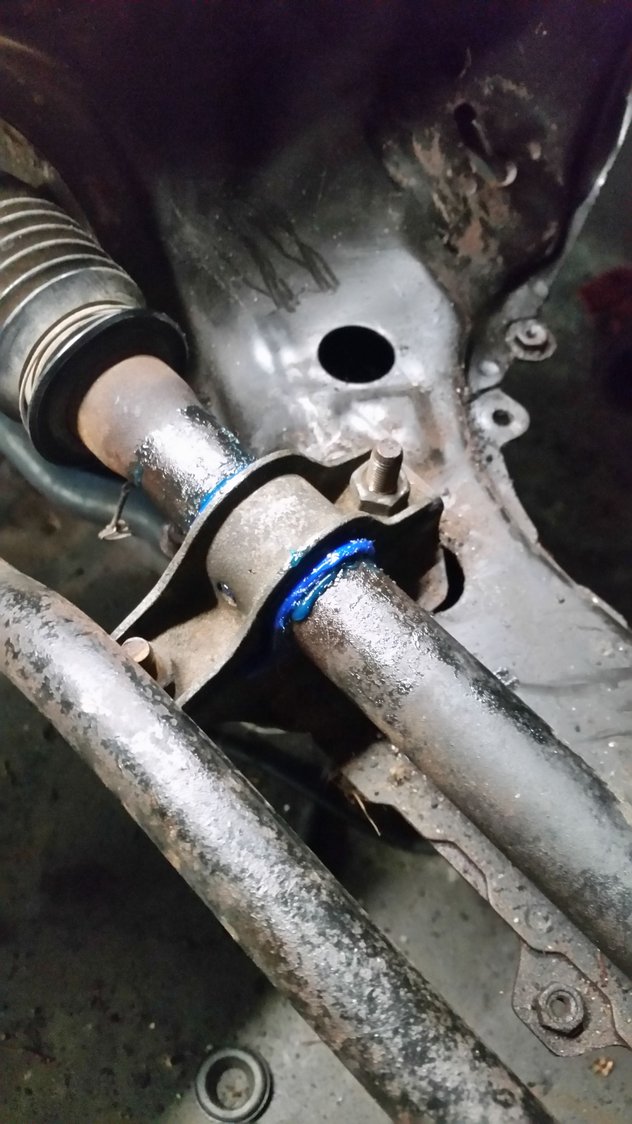

sorry in advance for bringing up an old thread.Passenger side manual rack bushing
Passenger side manual rack bushing

Last edited by Nodoritos; 08-28-17 at 10:30 PM. Reason: Mispelling
Nodoritos is offline
Reply With Quote
The Following User Says Thank You to Nodoritos For This Useful Post:
pfsantos (08-31-17)
Old 08-28-17, 10:32 PM
  #42
Full Member
iTrader: (7)

Join Date: Dec 2003
Location: MO
Posts: 92
Thanked 1 Time in 1 Post
That's awesome. I had contacted them about the same but couldn't get movement. Let us know if they give you any kind of ordering info.
BluVert is offline
Reply With Quote
Old 08-31-17, 11:55 AM
  #43
Can Post Only in New Member Section

Join Date: Jul 2017
Location: Illinois
Posts: 4
Thanks: 0
Thanked 2 Times in 2 Posts
Hey guys, I spoke with Ricochet.
They said that if anyone else is interested in these, to contact directly and they can be had for $15.
Nodoritos is offline
Reply With Quote
Old 02-14-18, 12:39 PM
  #44
Rotary Enthusiast
iTrader: (8)

Gregory Casimir's Avatar

Join Date: Jun 2004
Location: Miami , Florida
Posts: 1,312
Thanked 1 Time in 1 Post
I'm down for a set but does he do both sides?
Gregory Casimir is offline
Reply With Quote
Old 02-14-18, 12:44 PM
  #45
Full Member
iTrader: (7)

Join Date: Dec 2003
Location: MO
Posts: 92
Thanked 1 Time in 1 Post
You'll need to contact them([email protected]) for the passenger side one, but they do make both sides.
BluVert is offline
Reply With Quote
Old 02-14-18, 02:47 PM
  #46
Can Post Only in New Member Section

Join Date: Jul 2017
Location: Illinois
Posts: 4
Thanks: 0
Thanked 2 Times in 2 Posts
Originally Posted by Gregory Casimir View Post
I'm down for a set but does he do both sides?
I believe I have a spare prototype left over (they sent 2 when we were doing test fits). PM me your info and I'll send my spare to you for the price of shipping.
Nodoritos is offline
Reply With Quote
The Following User Says Thank You to Nodoritos For This Useful Post:
Gregory Casimir (02-19-18)
Old 02-19-18, 07:53 PM
  #47
Rotary Enthusiast
iTrader: (8)

Gregory Casimir's Avatar

Join Date: Jun 2004
Location: Miami , Florida
Posts: 1,312
Thanked 1 Time in 1 Post
Thumbs up

Originally Posted by Nodoritos View Post
I believe I have a spare prototype left over (they sent 2 when we were doing test fits). PM me your info and I'll send my spare to you for the price of shipping.
you sir have a pm!
Gregory Casimir is offline
