Making ACV dump air to the cat
Thread Starter
Senior Member
Joined: Mar 2005
Posts: 735
Likes: 2
From: Round Hill, VA
Making ACV dump air to the cat
Originally Posted by J-Rat
There is an easier way...All you need to do, as you are looking at the ACV, to the rear of it there are 2 Vacuum lines coming in. The one in the FRONT controls the Air to the cats (Split air i think its called). Unplug the FRONT vacuum line and plug the vacuum line. This will disable the switching solenoid and run fresh air to the cats at any speed. I have tested this on an emissions machine and it drops your CO readings signifigantly. I dont have any pics handy to show but if you get lost, I will get some.

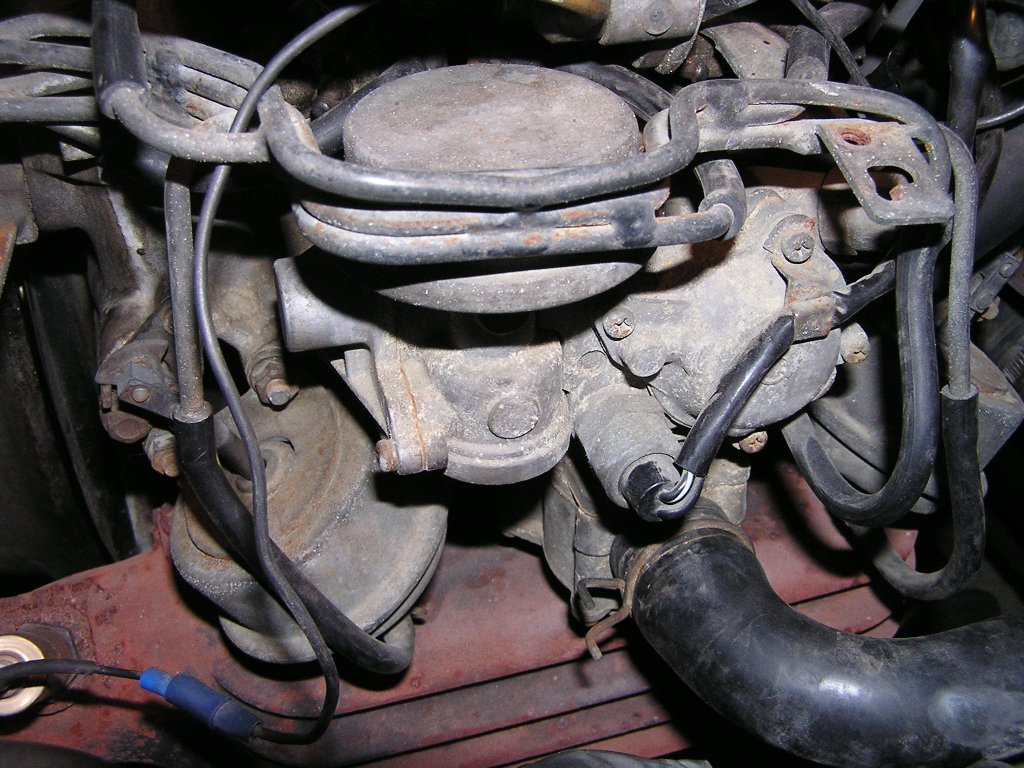

Here is the best I can do... Crappy pic, but I am at work, so bear with me. And I called you, but you didnt answer!
follow the red line, not the black one.
Here is the best I can do... Crappy pic, but I am at work, so bear with me. And I called you, but you didnt answer!
follow the red line, not the black one.
HAILERS
Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
He's talking about the two nipples above the ACV.
Look at the big red circle you drew. See the number (2) in the circle near the top.
See the two metal nipples sitting side by side?; Those are what he talks about.
Look at the big red circle you drew. See the number (2) in the circle near the top.
See the two metal nipples sitting side by side?; Those are what he talks about.
