Im finally gonna remove/replace my Battary Cables... they have never been replaced and are in bad shape especially the negative cable (brittle wires) that means im gonna have to remove the Main fusebox with all the other wires attached to it underneath such as EGI 30A HEAD 30A MAIN 100A (ABS) 60A, BTN 60A, RETRACTOR 30A

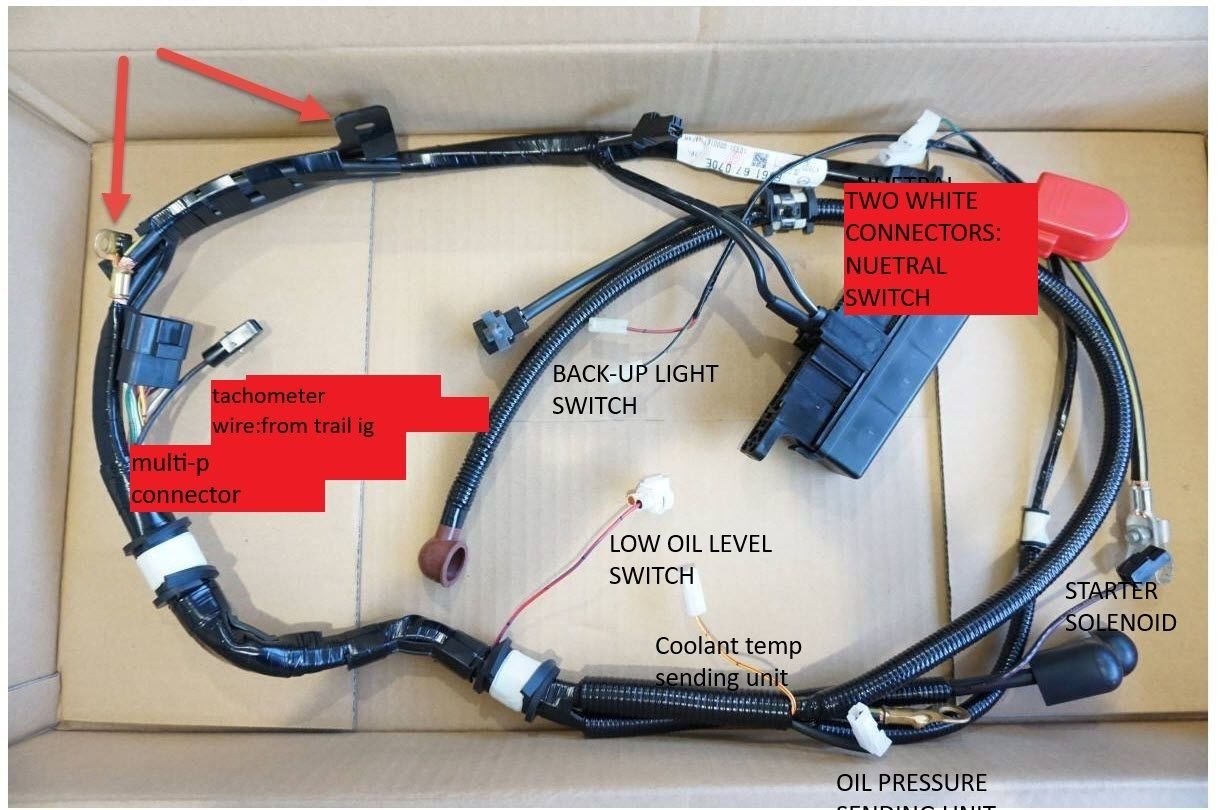

here is the list of switchs on the harness for removal

Before i remove such wires from the main fusebox (engine bay area) i want to be on the safe side and label each wire to what they pertain too so starting from the lower right corner going CW is OIL PRESSURE SENDING UNIT = EGI 30A SLOT,
COOLANT TEMP SENDING UNIT = Underneath oil filter area, LOW OIL LEVEL SWITCH = i dont know where?, BACK UP LIGHT SWITCH = side of transmission area, TWO WHITE CONNECTORS CALLED NUETRAL SWITCH = clutch area underneah, Multi-pin connector = i dont know where? , TACHOMETER WIRE = i dont know where?

anybody out there can point my direction which wires correspond to the main fuse box correctly if im wrong i just have an idea where these wires go to etc...

i Dont know where the multipin connector goes to and the tachometer wire thanks..



***Update***
R&I left fender******
No harness found inside*******
