Main fuse pannel. Help
#1
Passing life by
Thread Starter
Main fuse pannel. Help
I am tracing lines in my font harness and removing what I don’t want.

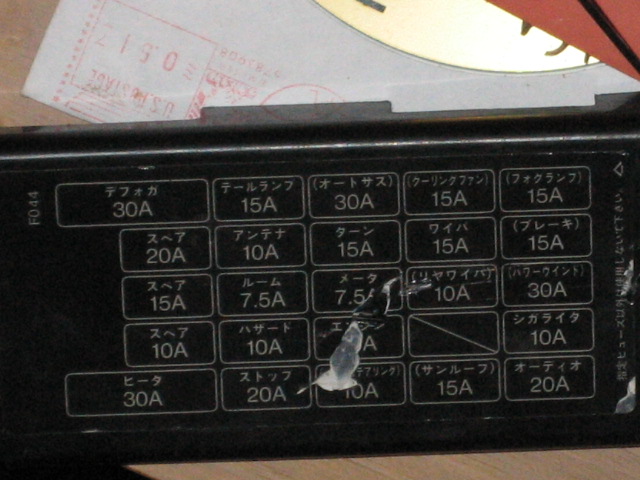

Unfortunately none of my systems wiring is the same seen here in the USA. You look in the FAQ and the TII diagram is nothing like mine. The NA one is much closer but my cover is in Japanese so I cant read it.
I traced a 2 pin RED wire plug from the front relay location. It was taped up with the head light relay. One wire leads to the top right fuse in the fuse panel and the other to a pin in one of the large white clips on the JDM passenger side.
In the USA TII fuse panel it’s a empty spot in mine it is not. In the NA diagram it is a fog light. If mine is a fog light, how does the fog lights work?
Unfortunately none of my systems wiring is the same seen here in the USA. You look in the FAQ and the TII diagram is nothing like mine. The NA one is much closer but my cover is in Japanese so I cant read it.
I traced a 2 pin RED wire plug from the front relay location. It was taped up with the head light relay. One wire leads to the top right fuse in the fuse panel and the other to a pin in one of the large white clips on the JDM passenger side.
In the USA TII fuse panel it’s a empty spot in mine it is not. In the NA diagram it is a fog light. If mine is a fog light, how does the fog lights work?
Last edited by iceblue; 02-21-06 at 09:28 PM.
#3
Passing life by
Thread Starter
Well if I was just trying to label fuses maybe. I am actually taking sensors and clips and wires out of my harness completely. Allot of times they come to the fuse panel and I remove the fuse wires as well.
Where I am at is I have a clip for something I don’t know what in my harness. I traced it trying to figure out where it went. It has 2 wires and one of them go to the fuse panel it is the top left 15A fuse. I was hoping I could figure out what the plug I am looking at is for. Best I can see is FOG. If it is FOG how does it work so I can determine if I could remove it.
Where I am at is I have a clip for something I don’t know what in my harness. I traced it trying to figure out where it went. It has 2 wires and one of them go to the fuse panel it is the top left 15A fuse. I was hoping I could figure out what the plug I am looking at is for. Best I can see is FOG. If it is FOG how does it work so I can determine if I could remove it.
#6
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
can't blame a guy for tryin though..(honestly not sure if S4's came with fogs)..is this a Japanese Imported car?..you mentioned the fuse cover being written in Japanese..
