Low impendence resistor pack
12-10-02, 10:28 PM
#1
Senior Member
Thread Starter
Low impendence resistor pack
i need a pic of it and location of where it is at. I don't know if my 87 is LOW or HIGH impedence, I know my car suppose to be HIGH IMPEDENCE because mazdatrix has the VIN check on what RX-7 can handle the GSL-SE (LOW) injectors and my VIN number was over the cut off so mines suppose to be high. But I check my resistance all my injectors are at 2.1-2.3 ohms and TAN color and one PURPLE
-mike
-mike
Last edited by 600HP CLUB; 12-10-02 at 10:31 PM.
12-10-02, 10:43 PM
#2
Junior Member
Join Date: Apr 2002
Location: modesto, ca
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
The color changes (fades) over time, so that I found that the colors didn't necessarily match up. What shape are the connectors? I'm pretty sure that the low impedance injectors have the round clips vs. the square ones, but last time I was looking at them, I had them all out on the table at one time, so I could have mixed that up. Can someone verify?
-W
-W
12-10-02, 11:16 PM
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
the resistor pac is under the airbox, you can see it without taking the car apart
mike
mike

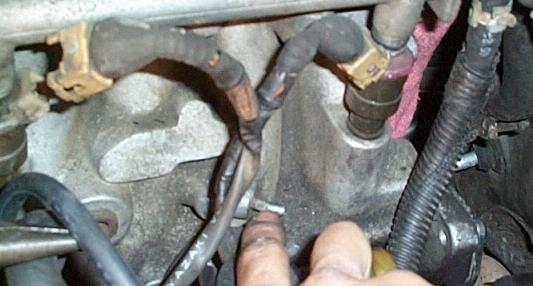

12-11-02, 10:38 PM
#5
Senior Member
Thread Starter
Originally posted by Wheels
The color changes (fades) over time, so that I found that the colors didn't necessarily match up. What shape are the connectors? I'm pretty sure that the low impedance injectors have the round clips vs. the square ones, but last time I was looking at them, I had them all out on the table at one time, so I could have mixed that up. Can someone verify?
-W
The color changes (fades) over time, so that I found that the colors didn't necessarily match up. What shape are the connectors? I'm pretty sure that the low impedance injectors have the round clips vs. the square ones, but last time I was looking at them, I had them all out on the table at one time, so I could have mixed that up. Can someone verify?
-W
Last edited by 600HP CLUB; 12-11-02 at 10:48 PM.
