Let me start at the beginning...
A year ago, I decided I would pull my engine and rebuild it (it wasn't burnt out, but it had 140,000 miles on it. I thought I would be proactive). Well, of course the 24 year old plastic and rubber hoses broke like nothing else. So, fast forward and I moved 3000 miles across country. It happened very suddenly and I had neither the funds nor the time to put my car back together. So I threw the engine in the car and left all of the hoses and crap out just for shipping. I'm now without much of the broken hoses and the digital backup of all the deconstruction photos I had. So this leads me to my request:
Does anyone have complete teardown pictures of a '88 TII that they would be willing to share? I'm trying to not only figure out where all the hoses go but identify the shape so I can order new ones. (thats why a vacuum line diagram isn't helping).
TLDR: I'm retarded and need pictures to put my '88 TII back together.
A year ago, I decided I would pull my engine and rebuild it (it wasn't burnt out, but it had 140,000 miles on it. I thought I would be proactive). Well, of course the 24 year old plastic and rubber hoses broke like nothing else. So, fast forward and I moved 3000 miles across country. It happened very suddenly and I had neither the funds nor the time to put my car back together. So I threw the engine in the car and left all of the hoses and crap out just for shipping. I'm now without much of the broken hoses and the digital backup of all the deconstruction photos I had. So this leads me to my request:
Does anyone have complete teardown pictures of a '88 TII that they would be willing to share? I'm trying to not only figure out where all the hoses go but identify the shape so I can order new ones. (thats why a vacuum line diagram isn't helping).
TLDR: I'm retarded and need pictures to put my '88 TII back together.
#5
Thanks, thats definitely a start.

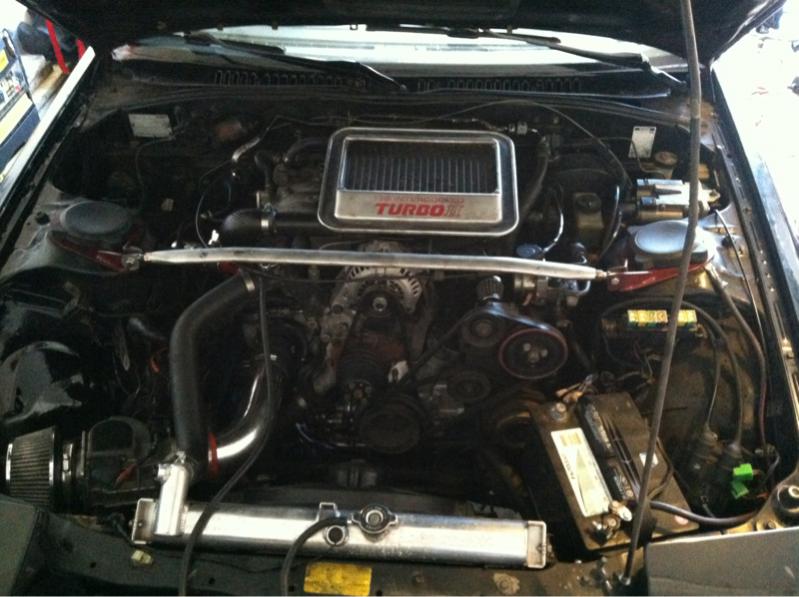

Do you have any pictures of the engine with the intercooler removed?
Most of my vacuum lines were cracked/broken before, replacing most of them is the problem as I don't have the originals anymore. (I'm sure many people on here have had the vacuum hoses nearly disintegrate just by being touched.)
Do you have any pictures of the engine with the intercooler removed?
Most of my vacuum lines were cracked/broken before, replacing most of them is the problem as I don't have the originals anymore. (I'm sure many people on here have had the vacuum hoses nearly disintegrate just by being touched.)
Trending Topics
#8
Full Member
iTrader: (2)
Join Date: Jun 2013
Location: Florida
Posts: 55
Likes: 0
Received 0 Likes
on
0 Posts
Ill get some this week and post them for u I am planning on picking up this hose kit and installing it soon.... http://www.hiperformancestore.com/HoseKits.htm#Mazda
