Alright
I need the Japanese Digital Logicon Schematics...
And the US one to compare...

Because I want this to work.



Which is kinda funny seeing as how I don't have AC or heater....

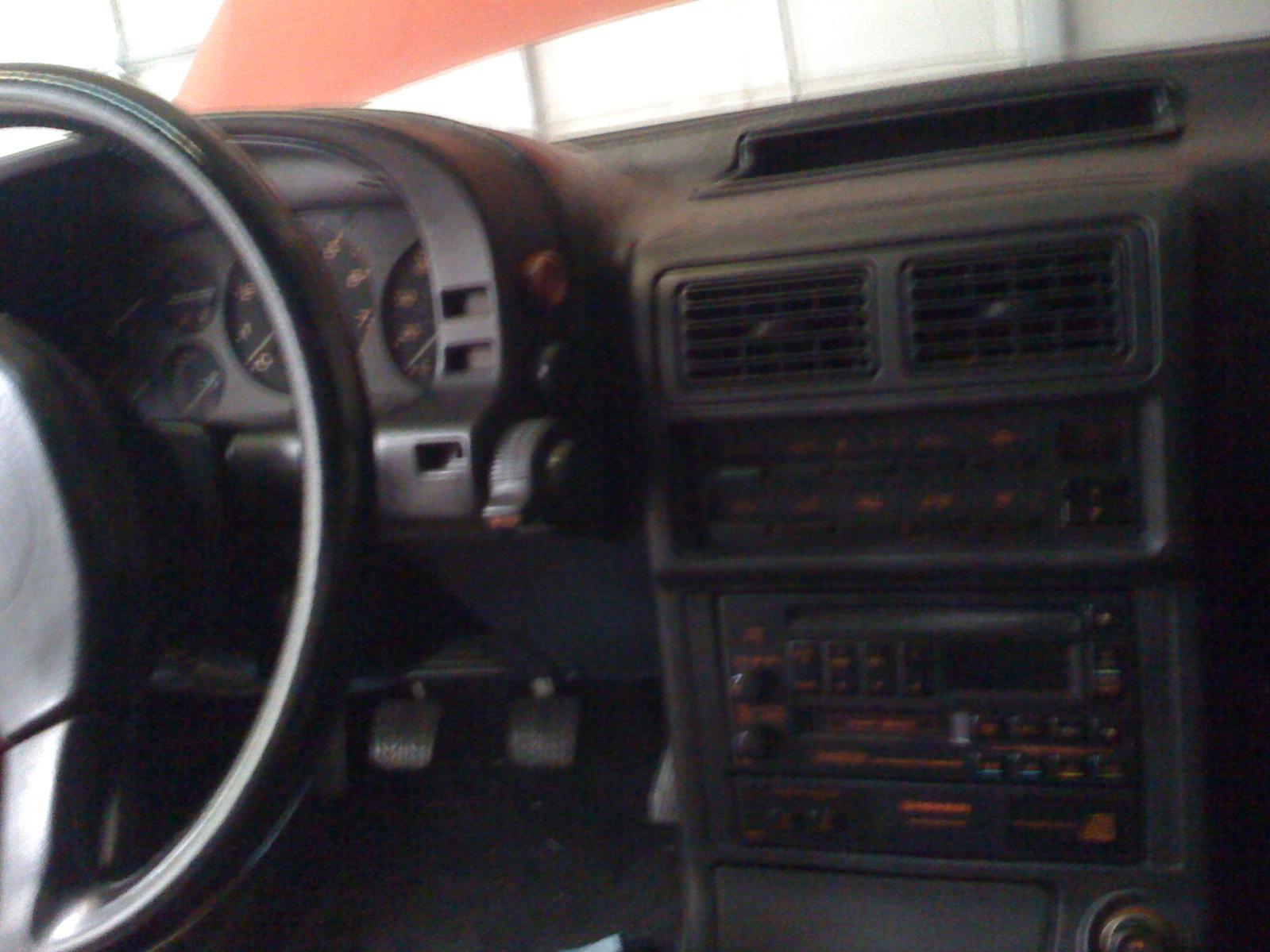

but still it looks cool

and looks means everything right

like all you s4 guys putting s5 lights on or painting your engine bay and random engine parts all these ridiculous color that you think looks good...

so who got the wiring schematics?



you are out of your mind. there is no way you are gonna get that to work. you need more than just the logicon, its a complete system.



i just want it to light up and display numbers!!!!
Doesnt have to work work - i mean, i dont have a heater or AC
But I just want buttons to light up when I touch it!
ask me why? because it looks cool
