hello, i did some searching and found the L.E.D tps tester method cause i think my tps needs adjusting. it said to find the 3 pin check connector near the boost sensor but i only find a 2 pin connector in my t2, and i think thats for the fuel pump. in the manual it shows the N/A's have the 3 pin. can i use an LED tester on my t2?



Why don't you just adjust the TPS using a DVOM?

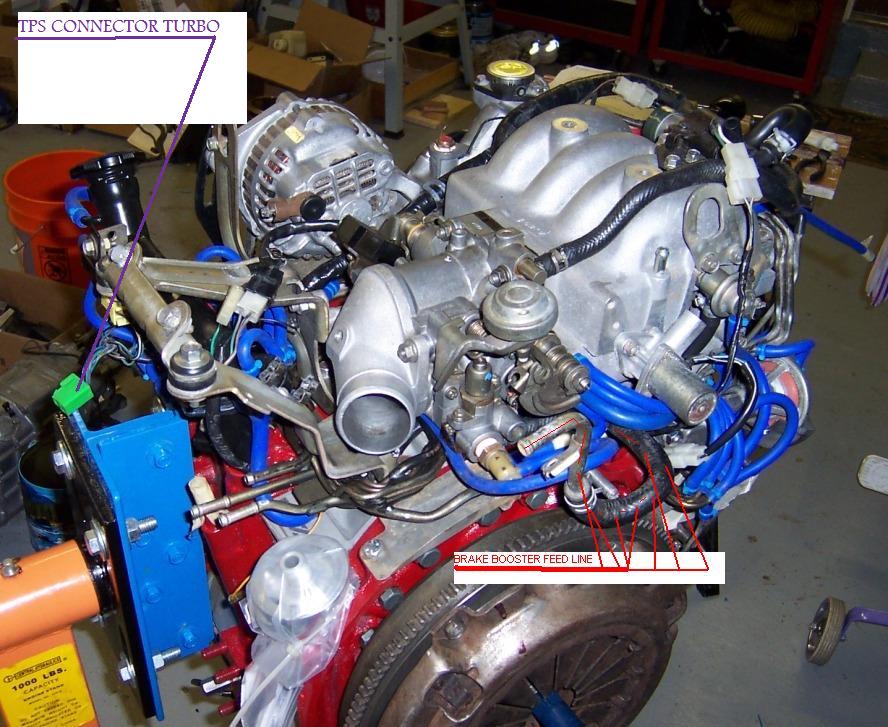

The green, threee socket TPS check connector is on the left side of the engine. Somewhere in the area of the oil filler neck or there 'bouts. That's on a Turbo car.



ok, so i found out that when the previous owner cut all the emissions plugs off the emissions harness he also cut off the green 3 pin connector. so i have an emissions harness from a jdm s4t2 but its missing the yellow EGR solenoid plug that connects to the blue w/white striped wire that is on the usdm EM harness. along with having the green 3pin connector on the jdm harness there is also a green 2 pin connector that has an orangew/red striped wire, whats this for? does it mean anything to the usdm harness? i can go and splice the emissions plugs on and follow the schematics thats not a problem, but i would like to see the jdm scematics too if anyone has them.



anyone got an jdm FSM for the wiring schematics for jdm emissions harness on a s4 t2?
