so I was pulling apart my engine for my rebuild, and I pull off the UIM. the first thing I notice is there are 2 cracking fuel lines. I don't know if they were leaking, or getting ready to explode. they were BAD. then, I unbolt the fuel rail, and pull it off(picking it up with my hand around the PD). I set it on the ground, and the little plastic cap falls off (its cracked), and the little screw comes out with it.
so then I look on top of the engine, and in a little cup between the LIM and the engine, there's a puddle of GASOLINE!! I have no idea how long it was leaking, I'm just lucky it didn't make it to my exhaust manifold.

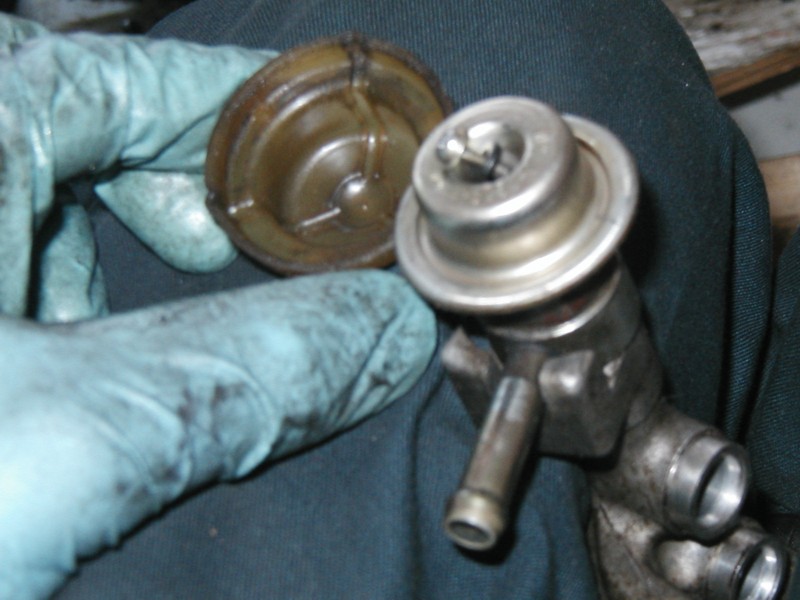

you can see how the PD was totaly broken in this picture:

Black13B

iTrader: (1)

Gloves? Wussy! J/K

Funny this came up, I'm having the same problem right now

I'm rebuilding all the fuel lines under the UIM, got a replacement pulsation dampener, and I'm also replacing the primary fuel rail..

How is your injector grommets? Mine are no good. Oh well. They are cheap.

Replacement Line: 5/16 - 7.9mm High Pressure FI Line

Bigretardhead

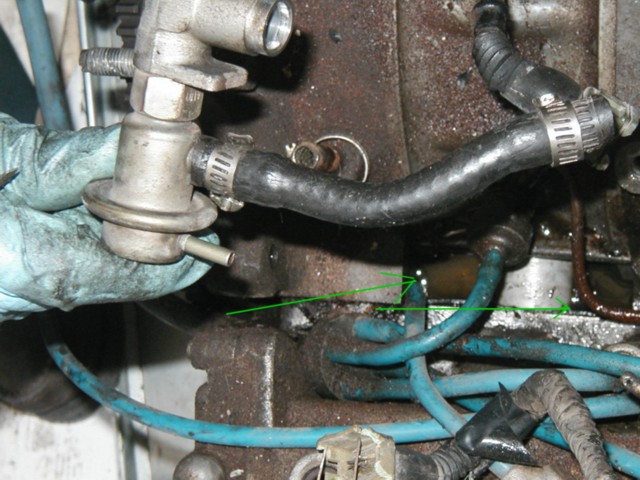

this one shows one of the cracked hoses and some of the fuel sitting on the engine. the cracked hose looks MUCH worse in person.

Black13B

iTrader: (1)

BTW - I have alot of splash stains from fuel all over my bellhousing. When I found the leak it was dripping down and narrowly missing the exhaust manifold.

I actually had a stab mark in my primary to secondary rail line.. Coulda been form dinking around down there with misc. vacuum lines.. Be careful guys..

ERAUMAZDA

wow u are lucky

Fingers

you're one lucky SOB

Bigretardhead

I was thinking of replaceing the PD with just a banjo bolt. well, at least I've heard of that being done. does it affect anything besides make it impossible for the PD to leak ?

the injector gromets actually looked okay. however, I broke one in the removal process. that bitch was stuck in there good. but I was planning on replacing them anyway.

speaking of injectors, the ones in the LIM looked different than the ones in the engine block. I wish I had a picture. but I thought all 4 were supposed to be exactly the same?

dang. well at least you found the leak and are fixing it. mine showed no signs from the outside. I just discovered it during my engine tear down for my rebuild.

Black13B

iTrader: (1)

Banjo bolt has been done. Easiest way is to use one from another doner FC fuel rail. It's free!

I'm not doing the banjo bolt though.. Pulsation dampener is there to dampen the pulsation in the lines.. Who would have guessed!

Many guys have done the banjo bolt with no change/complains to their running and overall fuel system health..

1987RX7guy

iTrader: (3)

People say taht removing the PD creates more pressure and stress on the the other fuel components but I personally have not had any problems.

Bigretardhead

cool! I'll just take one from one of the extra fuel rails I have.

I'd like to have the PD, but I don't want the risk of it failing again, and setting my engine on fire. that wouldn't make me very happy.

Black13B

iTrader: (1)

Interesting stuff posted by HAILERS.







I suggest the read.
https://www.rx7club.com/forum/showth...ight=pulsation

Black13B

iTrader: (1)

Probably like the fuel pump itself.. I couldn't say for sure though..

n4ji

iTrader: (1)

I second that, and the girl in his signature!!!!

rotary>piston

is it possible to swap in a whole s5 fuel rail and still use s4 injectors?

$150FC

yes

Black13B

iTrader: (1)

How insightful!

Rails are the same in absolutely every way, then?

Difference between S4s and S5s are the low and high impedance injectors.. So I would guess they used the same rails..

Rotorific

iTrader: (1)

No they are not the same they (S5) are better! It is suggested to pick up a set of fuel rails and while your at it just go ahead and get a VDI intake while your at it. -Gabe

Scott 89t2

if you put in the S5 rail. you will need the 2 bolts from the S5 as well that bolt it down. as they are shorter or longer. one of those.

Rotorific

iTrader: (1)

Shorter sir.

twistedriver

Can you always smell the leaking gas?? I just looked at my pulse dampner it looks alright but the top of the engine is kind of oily. But i don't smell any gas at all should i be worry?? If i was to change the pulse damper what do i need?? Thank you in advance!

88IntegraLS

Everybody go out to your cars and check your fuel hoses and pulsation damper! *please*

Mephis

that dont look good..

Black13B

iTrader: (1)

^ Good advice. ^

Seriously. You can see the PD just peeking out from underneath the intake. Easy to see and inspect, but a little bit difficult to get at for removal/replacement.

twistedriver

Can you always smell the leaking gas?? I just looked at my pulse dampner it looks alright but the top of the engine is kind of oily. But i don't smell any gas at all should i be worry?? If i was to change the pulse damper what do i need?? Thank you in advance! (i really need a reply on it!!! Please!

Project84

twisterdriver, run your finger around it, then smell your finger. If your oily finger smells like gas, there is a problem. Black13B is right. Its easy to see, easy to inspect, and a bit difficult to access, but not as difficult as watching your car go up in flames.
