Ignition switch wiring
I have an 87 NA and i've stripped the interior and taken all the wiring out, im replacing the ecu with a standalone and stupid me forgot to figure out which wires coming out of the ignition switch are which. Im hoping someone can point me in the right direction to find out which are which. I downloaded the wiring diagram but it isnt clear at all. Any help is much appreciated!!!
Ian
Ian
07-10-09, 02:41 PM
#2
Speed before Beauty
Join Date: May 2007
Location: Great Falls, VA
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts

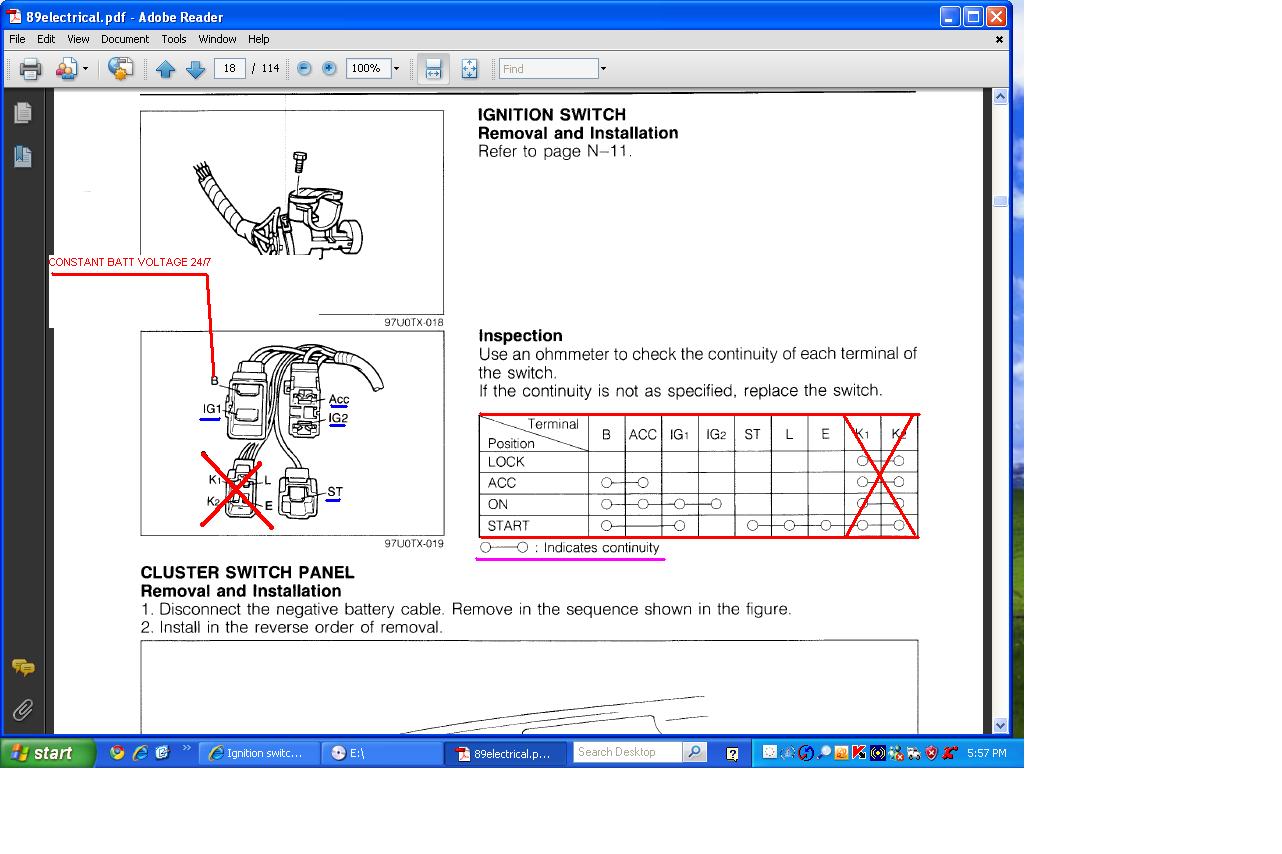

According to the diagrams I'm pulling up on alldata...
black = power to switch
brown = start circuit (to S terminal)
black/white tracer = run circuit
I can't find a diagram showing the color of the remaining wire, but it looks like there should only be one more for the accessory circuit. let me know if I need to keep looking.
black = power to switch
brown = start circuit (to S terminal)
black/white tracer = run circuit
I can't find a diagram showing the color of the remaining wire, but it looks like there should only be one more for the accessory circuit. let me know if I need to keep looking.
