I think I found my PD
I seem to be the only person here who has had trouble finding my pulsation dampener (damper? dampner?). I don't want to take off all the stuff on top of the engine until I know there is a problem.

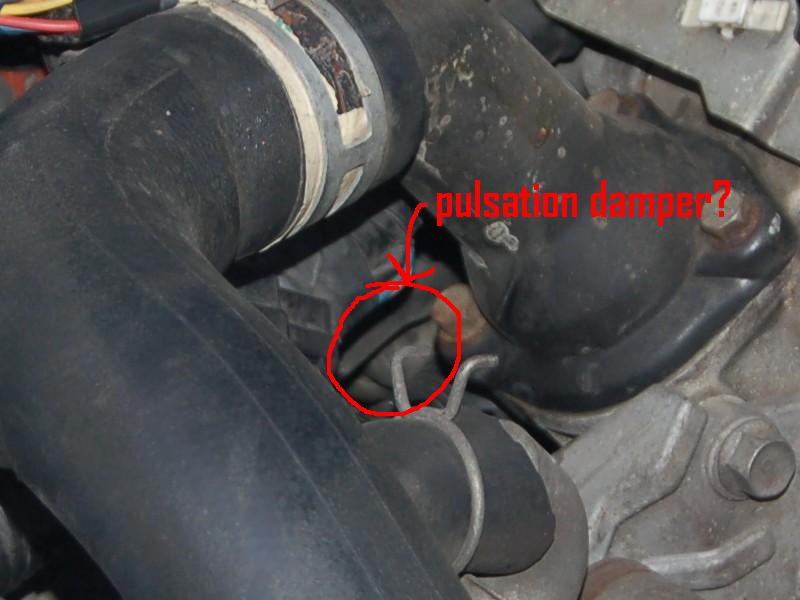

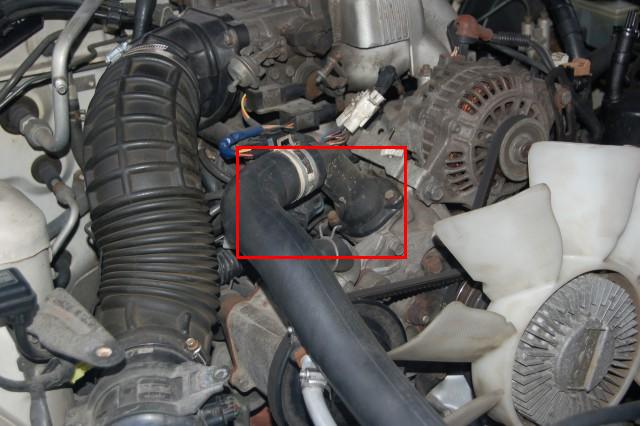

I tried to take a picture of what I'm pretty sure is the pd. It doesn't have the white plastic piece on it. I cannot get my hand down there, and I can't see whatever is under it where gas would leak. Would gas leak onto the ground under the car?
It is out of focus in the photo, sorry. It was to dark down there for the camera to focus on it
I tried to take a picture of what I'm pretty sure is the pd. It doesn't have the white plastic piece on it. I cannot get my hand down there, and I can't see whatever is under it where gas would leak. Would gas leak onto the ground under the car?
It is out of focus in the photo, sorry. It was to dark down there for the camera to focus on it
08-13-06, 03:27 PM
#2
Who are you?
Join Date: Mar 2003
Location: CenCal
Posts: 2,235
Likes: 0
Received 0 Likes
on
0 Posts
nope-tell your new here:
http://www.rotaryresurrection.com/ro...pulsation.html
the PD is on your primary fuel rail. Good try though. Under the throttle body.
http://www.rotaryresurrection.com/ro...pulsation.html
the PD is on your primary fuel rail. Good try though. Under the throttle body.
08-13-06, 03:49 PM
#6
Who are you?
Join Date: Mar 2003
Location: CenCal
Posts: 2,235
Likes: 0
Received 0 Likes
on
0 Posts

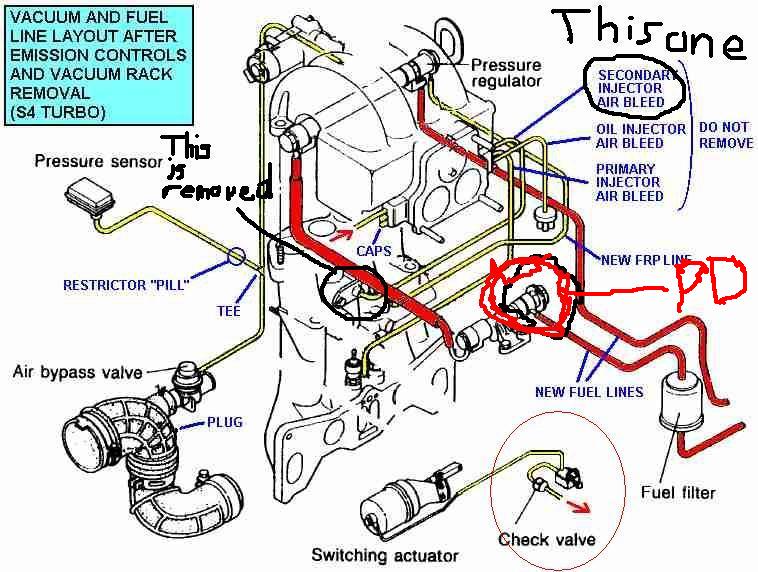

its under your throttle body, you cant really see it unless you take the TB off. On the diagram its the red circle by the fuel filter.
Last edited by jgrts20; 08-13-06 at 03:54 PM.
08-13-06, 04:01 PM
#7
on the 89 na it is the secondary fuel rail. You have to take off the throttle body, upper intake manifold and then you will see 2 lower fuel injectors and a rail that feeds fuel to them. This hole rail is the pd(it's really just on the end but won't come off).
Trending Topics
08-13-06, 06:51 PM
#8
Senior Member
There are two fuel rails, a long one under the intake elbow (secondary rail) that connects to the throttlebody on an NA, and a short one under the upper intake manifold (primary rail).
On an S5 (89 - 91) the Fuel Pressure Regulator is on the secondary rail (long one), you can tell it apart from the PD because the FPR has a vacuum line attached to it.
The PD is on the end of the primary rail (short one under the intake manifolds) and does NOT have a vacuum hose.
On an S5 these are both welded onto the fuel rails.
That's the right spot, but you're describing the primary rail.
On an S5 (89 - 91) the Fuel Pressure Regulator is on the secondary rail (long one), you can tell it apart from the PD because the FPR has a vacuum line attached to it.
The PD is on the end of the primary rail (short one under the intake manifolds) and does NOT have a vacuum hose.
On an S5 these are both welded onto the fuel rails.
Originally Posted by lupin
on the 89 na it is the secondary fuel rail. You have to take off the throttle body, upper intake manifold and then you will see 2 lower fuel injectors and a rail that feeds fuel to them. This hole rail is the pd(it's really just on the end but won't come off).
08-13-06, 08:29 PM
#9
Originally Posted by daten
There are two fuel rails, a long one under the intake elbow (secondary rail) that connects to the throttlebody on an NA, and a short one under the upper intake manifold (primary rail).
On an S5 (89 - 91) the Fuel Pressure Regulator is on the secondary rail (long one), you can tell it apart from the PD because the FPR has a vacuum line attached to it.
The PD is on the end of the primary rail (short one under the intake manifolds) and does NOT have a vacuum hose.
On an S5 these are both welded onto the fuel rails.
That's the right spot, but you're describing the primary rail.
On an S5 (89 - 91) the Fuel Pressure Regulator is on the secondary rail (long one), you can tell it apart from the PD because the FPR has a vacuum line attached to it.
The PD is on the end of the primary rail (short one under the intake manifolds) and does NOT have a vacuum hose.
On an S5 these are both welded onto the fuel rails.
That's the right spot, but you're describing the primary rail.
you are right, thx
08-18-06, 12:17 PM
#16
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,604 Likes
on
1,847 Posts
Originally Posted by ultrataco
so, if it was leaking, how would I know? would gasoline bespraying out of it? or just dripping where I can't see?
08-18-06, 03:21 PM
#17
Who are you?
Join Date: Mar 2003
Location: CenCal
Posts: 2,235
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by j9fd3s
use your nose....
Thread
