Hybrid turbo identification help!
Thread Starter
3-Rotor madness
Joined: Jun 2004
Posts: 391
Likes: 1
From: sweden
Hybrid turbo identification help!

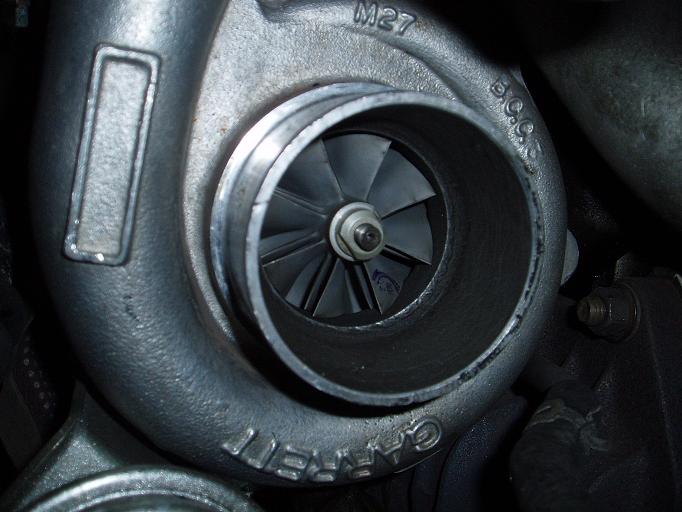

it has a backcutted original S5 hotside and a garrett someting coldside whitch has a 62mm inlet.
Is it a 60-1 or what is it
It is so big that i had to grind down the lower intake mainfold and the turbo housing to make it fit on my s4!
someone wrote MAX 1.2bar or MAX 17PSI on it.
How much power can it handel on a stock port s4?
Fuel and FMIC is allready there!
Is it a 60-1 or what is it
It is so big that i had to grind down the lower intake mainfold and the turbo housing to make it fit on my s4!
someone wrote MAX 1.2bar or MAX 17PSI on it.
How much power can it handel on a stock port s4?
Fuel and FMIC is allready there!
Lives on the Forum
Joined: Feb 2001
Posts: 26,664
Likes: 22
From: n
Pop the compressor housing off - it's attached by six 12mm or 13mm bolts on the back side.
Measure the minor and major diameters of the compressor wheel.
Find the matching wheel here...
http://www.fc3spro.com/TECH/TURBO/tmodels.html
-Ted
Measure the minor and major diameters of the compressor wheel.
Find the matching wheel here...
http://www.fc3spro.com/TECH/TURBO/tmodels.html
-Ted
