Hybrid turbo fitment issues
#1
Hybrid turbo fitment issues

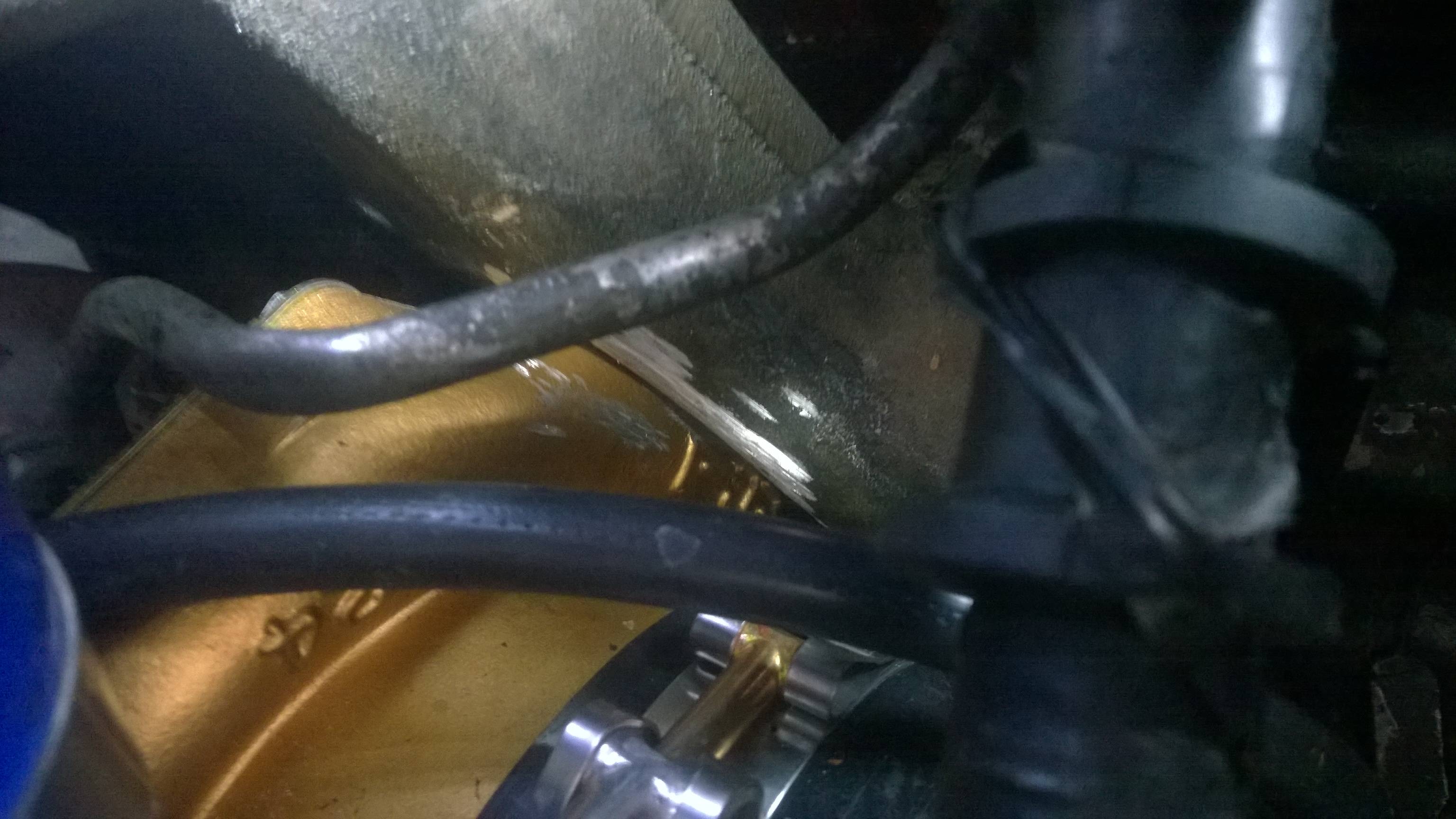

Hi all. I have an S5 hybrid turbo with a T04S compressor housing. I can't get it to clear the LIM so that I can fully tighten the bolts for the manifold. I've already grinded the turbo and LIM down to make more room, but its not enough. I'm afraid to grind anymore and risk putting a hole or ruining the structural integrity in either. Here's a picture to show what I've grinded so far, albeit not a great picture.
I'm stumped about what I should do to get it to clear. Am I okay to grind more, or should I pursue other options?
I bought a racing beat exhaust flange to use as a spacer in anticipation of this, but its too thick (1/2 an inch) and leaves only about one thread for a bolt on the engine studs for the exhaust manifold. Nobody near me has the ability to grind the thickness down on it either. Are there any extended studs I could get that would work well?
A custom manifold would be awesome, but I don't have the ability to do that, or the money to afford it really. So, any ideas or experience is very appreciated.
I'm stumped about what I should do to get it to clear. Am I okay to grind more, or should I pursue other options?
I bought a racing beat exhaust flange to use as a spacer in anticipation of this, but its too thick (1/2 an inch) and leaves only about one thread for a bolt on the engine studs for the exhaust manifold. Nobody near me has the ability to grind the thickness down on it either. Are there any extended studs I could get that would work well?
A custom manifold would be awesome, but I don't have the ability to do that, or the money to afford it really. So, any ideas or experience is very appreciated.
#2
Sharp Claws
iTrader: (30)
can't help ya, i wouldn't recommend anything larger than a TO4E on a hybrid, a S is too large for that turbine imo and the fitment issues you're now finding out about.
ok ok i can give you 1 suggestion, get a RB manifold plate(used for fabricating manifolds) and use it as a 1/2 spacer, should do the trick but you'll need another gasket also.
hopefully it is balanced well due to the imbalance in the wheel sizes.
ok ok i can give you 1 suggestion, get a RB manifold plate(used for fabricating manifolds) and use it as a 1/2 spacer, should do the trick but you'll need another gasket also.
hopefully it is balanced well due to the imbalance in the wheel sizes.
Last edited by RotaryEvolution; 06-22-15 at 08:48 PM.
#3
It has a P-trim turbine wheel, so everything works well together. I actually have an RB spacer/flange, but the studs are too short to use it. I was talking to my friend about it, and he said that I could actually use bolts that have the same diameter and thread pitch in place of the studs. So I'm thinking about doing that.
#4
Sharp Claws
iTrader: (30)
yeah you could, the later series engines had longer studs on the exhaust. just use quality fasteners and not just simple grade 8 from the hardware store. stainless steel or inconel are recommended. longer studs would be ideal, since the difference in metals will eventually destroy the threads if you have to remove them more than a few times.
Trending Topics
#10
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
I just thought about something..not sure how it would work,but maybe..
(If you can't find a stud)
Use a 1.25 BOLT..come UP through the bottom of the manifold so that it "turns into a Stud" at the turbo flange.
The bolt would actually thread into the manifold to hold it.
(If you can't find a stud)
Use a 1.25 BOLT..come UP through the bottom of the manifold so that it "turns into a Stud" at the turbo flange.
The bolt would actually thread into the manifold to hold it.
#13
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,603 Likes
on
1,847 Posts
#15
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
..Oh DUH..wrong flange!
I understand now,you are spacing the exhaust flange ( 2 hole at the engine)..
I thought the T4 flange.
Sorry about that...
ya know.ya know what they say....ShouldaCouldaWoodo...!...lol!
I understand now,you are spacing the exhaust flange ( 2 hole at the engine)..
I thought the T4 flange.
Sorry about that...
ya know.ya know what they say....ShouldaCouldaWoodo...!...lol!
#17
And yes, since on the manifold the flange to the turbo and the flange to the engine are parallel, spacing either would yield the same result. Although I would be more comfortable spacing the turbo from the manifold so that my water return line would be farther from the exhaust manifold, but trying to find a spacer/flange for the turbo to manifold flange is pretty darn hard. So I settled for the engine to manifold flange.
The FD studs will be at my local Mazda dealership Friday, so I'll get to work on the car Friday when I get off work from my easy job (my hard job is keeping this darn car working well). If anyone is interested in how this hybrid performs just look in my build thread "86 GXL to turbo build" this weekend. I'll post updates on how the turbo performs there after I get a rough tune. I'm anxious to get it working perfectly.
#18
Theoretical Tinkerer
iTrader: (41)
The lower line can probably use a spacer between the flex hose and front cover tube. The top oil line will need some massaging, but not sure if you can take up 1/2". Maybe look into replacing it with the flexible line kit off ebay.
#19
I got a stainless line kit from cx racing. Drain line is AN and fit well with cutting, the top one is junk because it came with both female ends and I need a male to fit the turbo feed on the engine. I'm confident that I can massage the top line enough though. I'll heat it up a bit so it wont stress it much.
