How do you remove the headrest from a GXL seat?

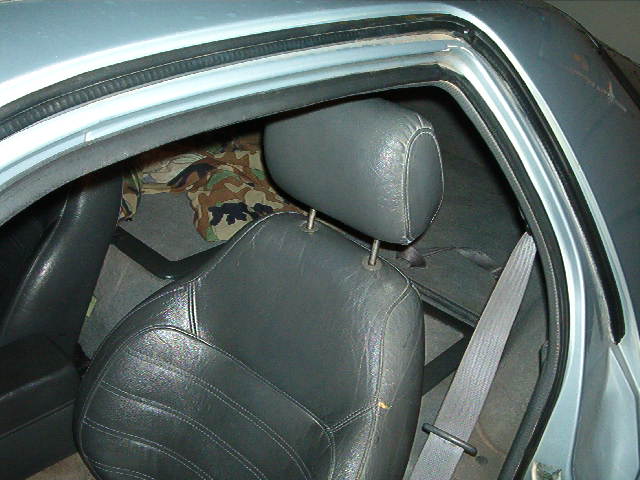

I'm trying to remove the headrest from the seat so I can make a bracket for a camera that will fit on the two poles holding the seat up. The poles don't move up and down, the headrest moves up and down on the poles. I don't see any hardware anywhere around the headrest or the poles.
I searched and I found 2 threads that weren't answered. Everything else talks about the 'vert speakers in the headrest.
I searched and I found 2 threads that weren't answered. Everything else talks about the 'vert speakers in the headrest.
#2
Former Moderator. RIP Icemark.
If you have the seats out it is easier to see, but what you want to do is unscrew the trim panel on the bottom of the head rest.
Once you have done that you should see a small metal retaining clip/spring where the head rest meets the two bars from the seat. Slide the retaining clips/springs away from the head rest bars, and slide the whole headrest up, and off of the seat and head rest support bars. The Two crome/metal bars that go up out of the seat are welded onto the seat frame, so the headrests come off without them.
Once you have done that you should see a small metal retaining clip/spring where the head rest meets the two bars from the seat. Slide the retaining clips/springs away from the head rest bars, and slide the whole headrest up, and off of the seat and head rest support bars. The Two crome/metal bars that go up out of the seat are welded onto the seat frame, so the headrests come off without them.
