Horn Problem
My horn works on and off in my 86 rx7
Car only has 41000 and isn't driiven much
I cant seem to find the problem
any ideas
Is there a way to hooh it up differently so it would work
Thanks
Car only has 41000 and isn't driiven much
I cant seem to find the problem
any ideas
Is there a way to hooh it up differently so it would work
Thanks
#2
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
When you press the button on the wheel, you are putting a ground on a wire going to the CPU.
You could take your meter, and backprobe the wire at the CPU plug to see if your putting a ground on that wire each time you press the button.
Or you could take a piece of electrical wire, bare both ends. Put one end to a known ground. Then put the other end of that wire in the backside of the wire that causes the horn to work. Each time you insert that wire in the backside of that wire that causes the horn to work, the horn should honk.

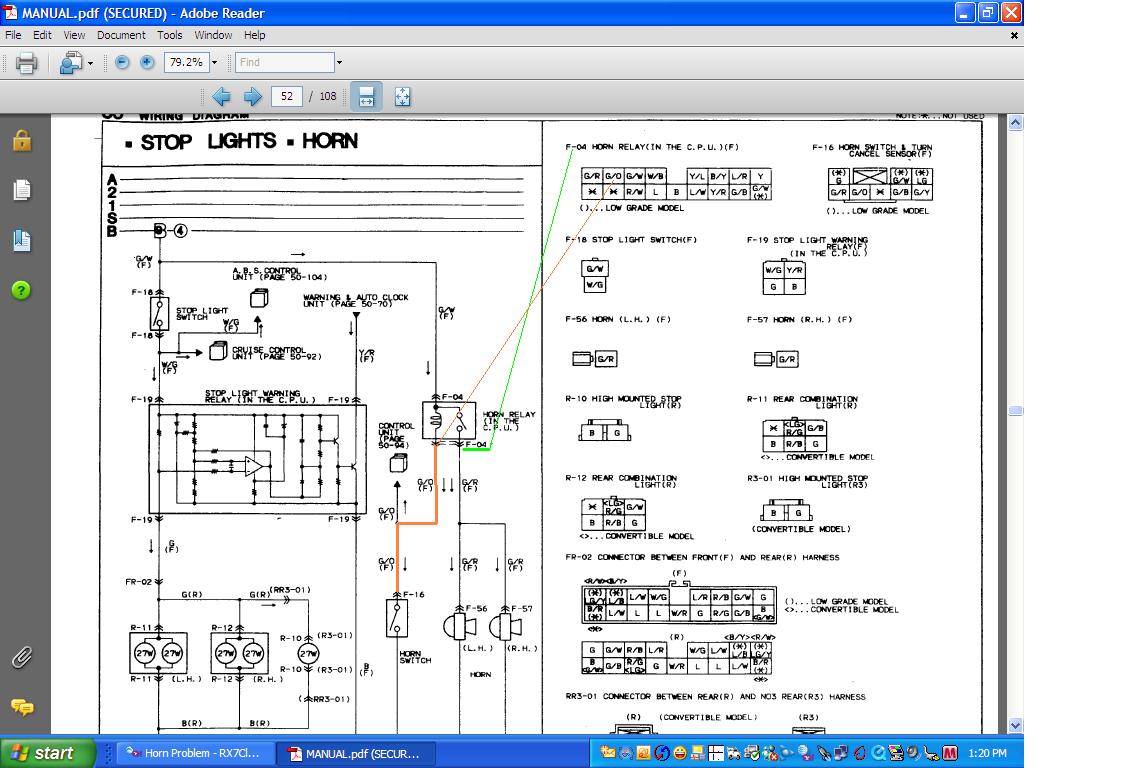

The wire color is shown in the attached jpg. The plug is the top plug on the CPU. The CPU is to the left of your left foot when driving.
If the horn honks each and every time you insert the wire into the backside of the green/orange wire in the plug at the CPU, then the problem lies in the steering wheel area, not the CPU or after the CPU. Common sense.
You could take your meter, and backprobe the wire at the CPU plug to see if your putting a ground on that wire each time you press the button.
Or you could take a piece of electrical wire, bare both ends. Put one end to a known ground. Then put the other end of that wire in the backside of the wire that causes the horn to work. Each time you insert that wire in the backside of that wire that causes the horn to work, the horn should honk.
The wire color is shown in the attached jpg. The plug is the top plug on the CPU. The CPU is to the left of your left foot when driving.
If the horn honks each and every time you insert the wire into the backside of the green/orange wire in the plug at the CPU, then the problem lies in the steering wheel area, not the CPU or after the CPU. Common sense.
#4
Rotary Enthusiast
Three options:
#1) Check the fuse. Easiest one!
#2) Check the ground behind the steering wheel cover. Three screws behind the wheel...
#3) Bad solder joints in the CPU located above the dead pedal. I've had this happen in my 86.
#1) Check the fuse. Easiest one!
#2) Check the ground behind the steering wheel cover. Three screws behind the wheel...
#3) Bad solder joints in the CPU located above the dead pedal. I've had this happen in my 86.
