help.. vert fuse box

im rebuilding a 88 rx7 vert.. and i wanted to know if anyones got a pic of the fuse box cover inside.. missing a whole lot of fuses and dont know what amp or where the fuses go.. if anyones got a clear pic it would be very helpfull.. thanks

Reply Like

02-03-07, 04:29 PM

jpd3253

Full Member

Join Date: Jan 2002

Location: Tampa Bay

Posts: 146

Likes: 0

Received 0 Likes on 0 Posts

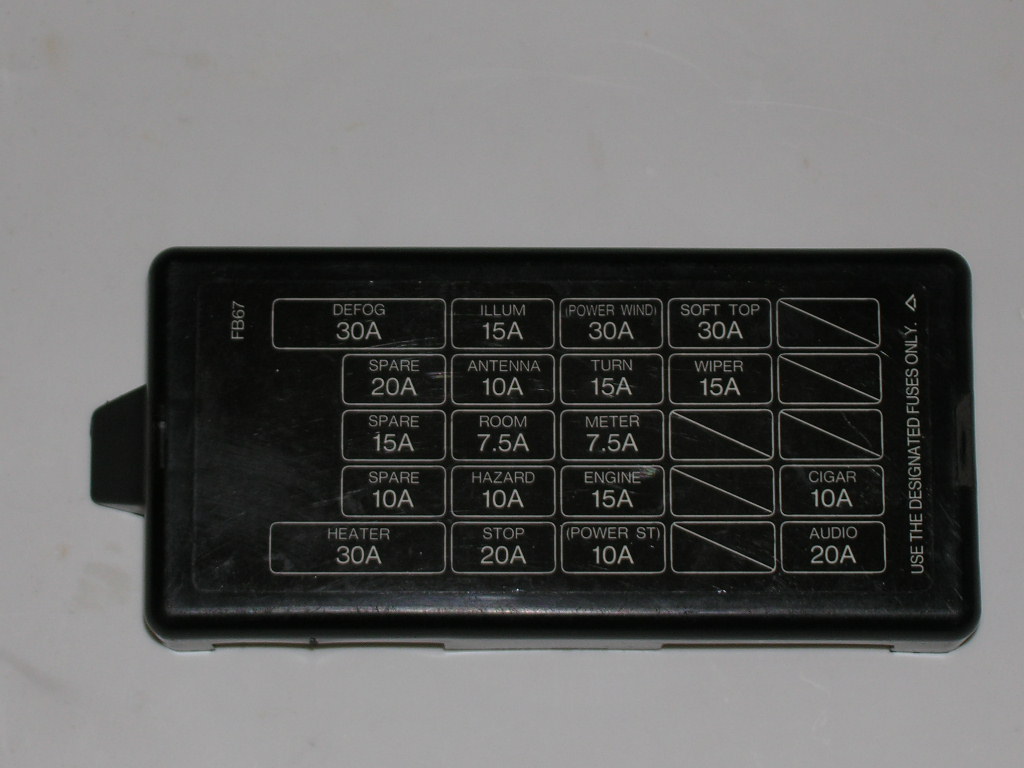

Here's the cover from an '88 Vert.

Attached Thumbnails

Reply Like

02-03-07, 05:51 PM

yeti

Rotary Enthusiast

iTrader: (1)

Join Date: Mar 2006

Location: Knoxville, TN

Posts: 949

Likes: 28

Received 55 Likes on 45 Posts

You know all the fuse panels are in the FAQ. Well I guess not. I should really print it off as much as I've had to use it.

EDIT: nevermind s4.. I have an s5.. still though the picture is in the FAQ
