HELP!! Still cant pass emissions with cat, why?
#26
i am legendary
Thread Starter
Join Date: Sep 2003
Location: Kirkland, WA
Posts: 8,478
Likes: 0
Received 0 Likes
on
0 Posts
hmmm i just thought of something... i have a TII fuel pump in there, i would understand that it might effect emissions some, but that couldnt be my entire problem, could it?
#27
Slizzard sippin sizzurp
iTrader: (4)
Join Date: Jul 2001
Location: Cali
Posts: 645
Likes: 0
Received 0 Likes
on
0 Posts
FWIW, I passed California "dyno" smog with my Haltech and a Bonez Hi-Flow cat, and not much else. It works better than you may think...that cat is waaaaay cleaner than anything that came stock in '87.
#28
Full Member
Join Date: Mar 2001
Location: St. Charles, MO
Posts: 201
Likes: 0
Received 0 Likes
on
0 Posts
Get a Haynes manual and do all of the diagnostic tests in there on the ACV to make sure it is functioning like it should.
I had trouble a few years ago passing emissions. My car ran fine, idled fine, was totally up to snuff on the tuneup things (new plugs, plug wires, new O2 sensor, TPS adjusted, timing set correctly, injectors cleaned, etc.), and I was WAY out on the emissions numbers. I did have a stock exhaust system though.
I took the car in to the Mazda dealership because I had no clue what was wrong with it. They told me that I needed a new ACV for $760.00. I told them that I would take the car home and maybe get a junkyard ACV and stick on it. I ended up (after about 6 hours of troubleshooting) finding out that the problem was not the ACV itself, but a fried resistor in the ECU that was in a circuit that controlled the switching selenoid for the ACV. With this not functioning as designed, it was not "piping" fresh air from the air pump back to the cat. I soldered a new resistor into the ECU, which made the switching selenoid activate the way it should have, which then made the ACV work like it is supposed to, which made me then pass emissions with flying colors.
I don't believe it is the Bonez cat either. The car should pass emissions with that installed.
Happy troubleshooting! It is worth trying to figure out yourself. You will learn alot and feel REALLY good when you figure it out!
I had trouble a few years ago passing emissions. My car ran fine, idled fine, was totally up to snuff on the tuneup things (new plugs, plug wires, new O2 sensor, TPS adjusted, timing set correctly, injectors cleaned, etc.), and I was WAY out on the emissions numbers. I did have a stock exhaust system though.
I took the car in to the Mazda dealership because I had no clue what was wrong with it. They told me that I needed a new ACV for $760.00. I told them that I would take the car home and maybe get a junkyard ACV and stick on it. I ended up (after about 6 hours of troubleshooting) finding out that the problem was not the ACV itself, but a fried resistor in the ECU that was in a circuit that controlled the switching selenoid for the ACV. With this not functioning as designed, it was not "piping" fresh air from the air pump back to the cat. I soldered a new resistor into the ECU, which made the switching selenoid activate the way it should have, which then made the ACV work like it is supposed to, which made me then pass emissions with flying colors.
I don't believe it is the Bonez cat either. The car should pass emissions with that installed.
Happy troubleshooting! It is worth trying to figure out yourself. You will learn alot and feel REALLY good when you figure it out!
#29
i am legendary
Thread Starter
Join Date: Sep 2003
Location: Kirkland, WA
Posts: 8,478
Likes: 0
Received 0 Likes
on
0 Posts
yah that's true, im still gonna wait and see what mazda says...
by the way i just realized something else, i dont think that the service center where i got my car tested let it warm up at all, i think they just turned it on and tested, could that explain for the terrible idle #'s? of course that wouldnt explain for the cruising numbers, but with a rotary i was thinking that the "at least 20 minutes of warmup time and driving on the freeway before testing if at all possible" might be important for an rx7
by the way i just realized something else, i dont think that the service center where i got my car tested let it warm up at all, i think they just turned it on and tested, could that explain for the terrible idle #'s? of course that wouldnt explain for the cruising numbers, but with a rotary i was thinking that the "at least 20 minutes of warmup time and driving on the freeway before testing if at all possible" might be important for an rx7
#30
Always something...
Join Date: Aug 2002
Location: Atlanta, Ga USA
Posts: 944
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by dDuB
yah that's true, im still gonna wait and see what mazda says...
by the way i just realized something else, i dont think that the service center where i got my car tested let it warm up at all, i think they just turned it on and tested, could that explain for the terrible idle #'s? of course that wouldnt explain for the cruising numbers, but with a rotary i was thinking that the "at least 20 minutes of warmup time and driving on the freeway before testing if at all possible" might be important for an rx7
yah that's true, im still gonna wait and see what mazda says...
by the way i just realized something else, i dont think that the service center where i got my car tested let it warm up at all, i think they just turned it on and tested, could that explain for the terrible idle #'s? of course that wouldnt explain for the cruising numbers, but with a rotary i was thinking that the "at least 20 minutes of warmup time and driving on the freeway before testing if at all possible" might be important for an rx7
#31
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts
Dittos to what 91VERT said above. Make sure the ACV is doing/functioning like it's supposed to.

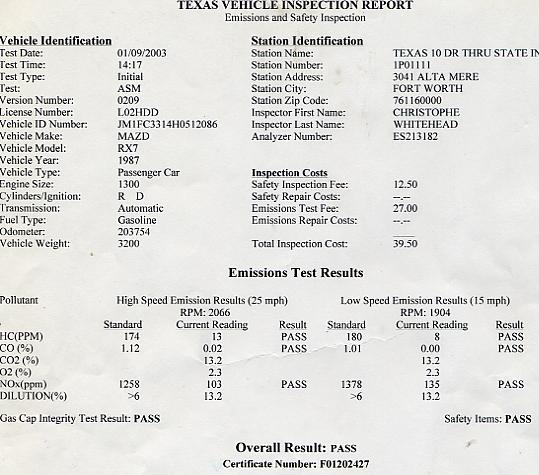

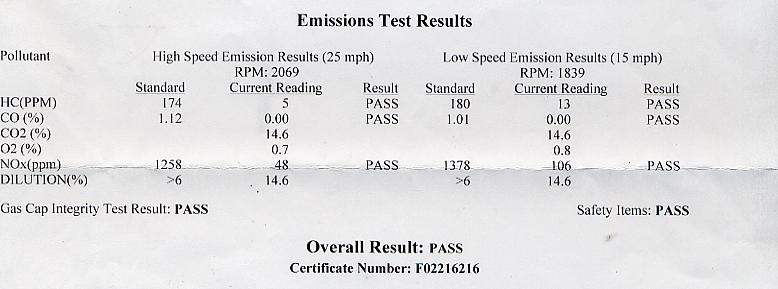

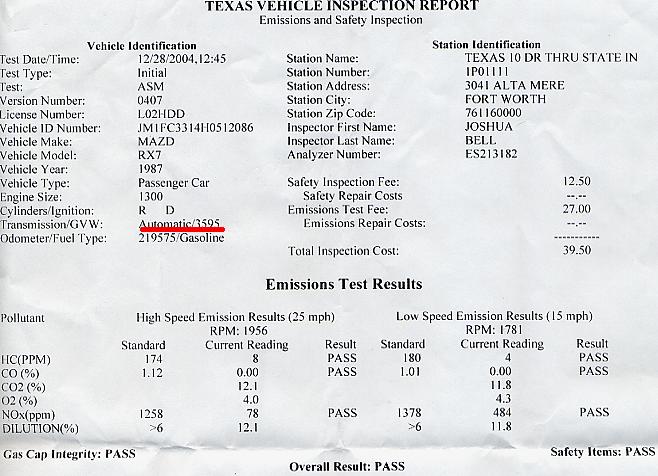

Here's a emissions test on a 87n/a converted to a turboII using a turboii fuel pump with no fuel pump resistor and using a used CATCO catalytic converter (Icemark suggests they're only good for a couple of years though).
And make sure the water temp switch is connected. It's the water temp switch on the bottom, left side of the radiator that I'm refering to. The absence of that item WILL effect the relief solenoids function. I'm not saying that switch is the end all of your problems....just that it needs some attention. Only the 86-88 had that switch there.
Here's a emissions test on a 87n/a converted to a turboII using a turboii fuel pump with no fuel pump resistor and using a used CATCO catalytic converter (Icemark suggests they're only good for a couple of years though).
And make sure the water temp switch is connected. It's the water temp switch on the bottom, left side of the radiator that I'm refering to. The absence of that item WILL effect the relief solenoids function. I'm not saying that switch is the end all of your problems....just that it needs some attention. Only the 86-88 had that switch there.
Last edited by HAILERS; 01-11-04 at 09:02 AM.
#34
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 109 Likes
on
92 Posts
The car needs to be completely warmed up to be tested. If it is started cold and then tested, you will certainly fail...
TII fuel pump should be OK, as the stock pressure regulator should handle it. But it is completely unnecessary.
TII fuel pump should be OK, as the stock pressure regulator should handle it. But it is completely unnecessary.
#35
i am legendary
Thread Starter
Join Date: Sep 2003
Location: Kirkland, WA
Posts: 8,478
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Aaron Cake
TII fuel pump should be OK, as the stock pressure regulator should handle it. But it is completely unnecessary.
TII fuel pump should be OK, as the stock pressure regulator should handle it. But it is completely unnecessary.
yah i know, but i was able to get it for cheap and its mainly in preparation for when i get a streetpot... however this makes me wonder if i get a streetport whether or not ill be able to pass emissions after that.. argh, this is all way too frustrating
#37
i am legendary
Thread Starter
Join Date: Sep 2003
Location: Kirkland, WA
Posts: 8,478
Likes: 0
Received 0 Likes
on
0 Posts
eventually yes, but my priority before upgrading the computer or getting some air/fuel management system is to get the streetport. So i guess my main concern after i get my car to pass emissions with no port is whether or not i can pass with a port and without any air/fuel management
