Help with plug identification 87 turbo 2 pic included
08-19-11, 12:37 AM
#1
Junior Member
Thread Starter
Join Date: May 2007
Location: Parma, Ohio
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
Help with plug identification 87 turbo 2 pic included
I have 2 of these plugs and can't figure out what they go to. When I look at the wiring harness diagram it states LH(left hand) actuator and right hand actuator.
The wire colors are
1. white with red
2. white with black
3. white with black
4. black.

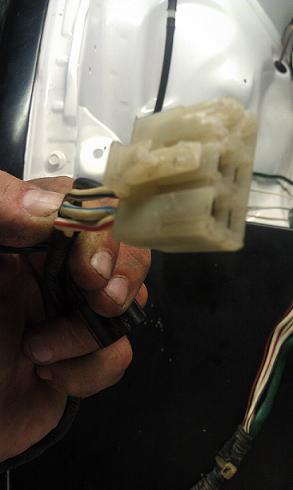

It a 6 pin plug but only uses 4 wires. One leads over by the wiper motor the other is under the battery. I also have the pic attached. Thanks for the help in advance.
The wire colors are
1. white with red
2. white with black
3. white with black
4. black.
It a 6 pin plug but only uses 4 wires. One leads over by the wiper motor the other is under the battery. I also have the pic attached. Thanks for the help in advance.
08-19-11, 01:35 PM
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
its for the Auto Adjust Suspension actuator, ALL the S4 cars have the wiring for it in the harness, it clips into brackets on the shock towers.
if you want to USE it, there is an ignition switched power wire in those plugs with a 30A fuse, so it'll run electric fans, or an electric air pump or something
if you want to USE it, there is an ignition switched power wire in those plugs with a 30A fuse, so it'll run electric fans, or an electric air pump or something
