Heater Core Removal (Coolant Lines)
#1
Rototiller
Thread Starter
Join Date: Jan 2007
Location: Largo, FL
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
Heater Core Removal (Coolant Lines)
Ok, so I've removed my A/C and all its components and figured I might as well get the Heater core the hell out of there too. But I have a couple questions.

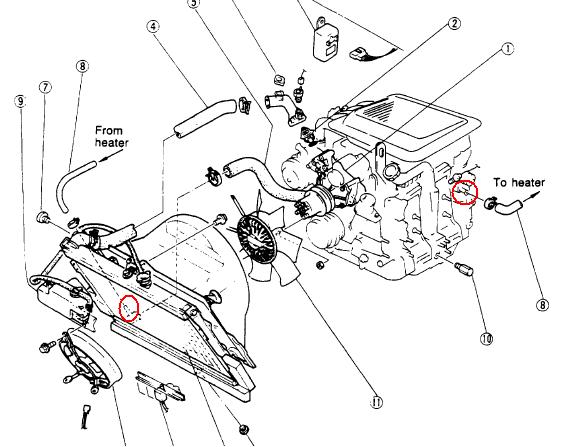

Would I just need to cap the 2 circled items in the attached picture? Thats all I can see that would be affected by its removal.
And would I need to completely drain the coolant w/ the heater on high/max before plugging these 2 spots? What Im more wondering is since there wont be any kind of flow to this area ever again is it going to matter that there might be coolant sitting?
opinions, suggestions?
PS this is a 87 SE (if that matters)
Would I just need to cap the 2 circled items in the attached picture? Thats all I can see that would be affected by its removal.
And would I need to completely drain the coolant w/ the heater on high/max before plugging these 2 spots? What Im more wondering is since there wont be any kind of flow to this area ever again is it going to matter that there might be coolant sitting?
opinions, suggestions?
PS this is a 87 SE (if that matters)
#7
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
no the end blows out of them, they don't actually come off.
Use a peice of actual NEW heater hose with a bolt that has a smooth shank area clamped into it, or a spark plug as suggested, but a bolt seems less ghetto.
Don't use bypass caps for coolant, they are not reinforced with fabric like normal heater hose is, they will always blow up at high RPM.
Use a peice of actual NEW heater hose with a bolt that has a smooth shank area clamped into it, or a spark plug as suggested, but a bolt seems less ghetto.
Don't use bypass caps for coolant, they are not reinforced with fabric like normal heater hose is, they will always blow up at high RPM.
Trending Topics
#10
Banned. I got OWNED!!!
Join Date: Dec 2006
Location: Palmdale Ca
Posts: 275
Likes: 0
Received 0 Likes
on
0 Posts
well i used the caps but tightened the hell out of them with clamps its been over 2 years no problems yet and i did the same by removing all ac equipment and heatercore in the front of the car. cools great now but sucks ***** during the summer, when your dieing for ac lol .
#11
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
I blew out 2 caps on the left side of the engine in 2 weeks when I didn't have a heater core.
Also have the cold start assist system capped and blew out 2 of those, though they did last longer like 2 months.
Also have the cold start assist system capped and blew out 2 of those, though they did last longer like 2 months.
#17
Top Down, Boost Up
iTrader: (7)
Some hoses with a section of 5/8" pipe (prefereably stainless,aluminum,etc..) hose clamped in will work just fine.
I had my heater bypassed with this setup for a couple years before I finally got around to fixing a leak. Just make sure you check on the connections every so often if you don't put a roll bead in the pipe.
I had my heater bypassed with this setup for a couple years before I finally got around to fixing a leak. Just make sure you check on the connections every so often if you don't put a roll bead in the pipe.
#18
Heater hoses
Can anyone tell me what heater hoses do I need and how are they routed I'm trying to replace my heater core so I have heat this winter but I never had it hooked up when I bought the car so I don't know where the hoses go and someone please help me out I have an 88 fc. This is what fitting im looking at. To my understanding the one hose still hooked up to the metal tube is a heater core hose it goes from fire wall to radiator. Am I wrong?
#19
Cake or Death?
iTrader: (2)
Yes, the return line goes from the firewall, through the metal tube and into the lower radiator bung.
Yours- at least the part visible in the photo- appears intact.
The feed line comes from the other side of the block, snakes under the oil filter pedestal and into the firewall.
It is quite a convoluted shape and you pretty much have to spend the $60 on the OEM Mazda part.
It is commonly ignored and because it is prone to oil soak from filter changes, is the most likely to fail.
Yours- at least the part visible in the photo- appears intact.
The feed line comes from the other side of the block, snakes under the oil filter pedestal and into the firewall.
It is quite a convoluted shape and you pretty much have to spend the $60 on the OEM Mazda part.
It is commonly ignored and because it is prone to oil soak from filter changes, is the most likely to fail.
#20
Yes, the return line goes from the firewall, through the metal tube and into the lower radiator bung.
Yours- at least the part visible in the photo- appears intact.
The feed line comes from the other side of the block, snakes under the oil filter pedestal and into the firewall.
It is quite a convoluted shape and you pretty much have to spend the $60 on the OEM Mazda part.
It is commonly ignored and because it is prone to oil soak from filter changes, is the most likely to fail.
Yours- at least the part visible in the photo- appears intact.
The feed line comes from the other side of the block, snakes under the oil filter pedestal and into the firewall.
It is quite a convoluted shape and you pretty much have to spend the $60 on the OEM Mazda part.
It is commonly ignored and because it is prone to oil soak from filter changes, is the most likely to fail.
Okay so thank you for that wanted to be sure, so what is the one that is plugged coming off the rear of the back? The 2 other lines coming from the firewall I figure are the ac lines, bc the pump has been removed. So is that plugged line associated with the AC? . the reason I ask is I just got to the climax of my repair, heater core was removed. No visible breaks off the core, doesnt seem in bad shape at all. Everything was hooked up as it should be, coolant is clean, but never had heat. If the heater core doesn't appear to be bad could it still be? Or is there something else that would cause a lack of heat completely? Please help thank YOU.
The one that is plugged to be seen here.
Maybe be a little rusted color but no visable physical damage what so ever. And coolant was as green as st. Patrick himself.
Was not too difficult especially with the aid of the haynes manual.
The hoses seem to be in good shape.
