Fuel fuse
I have searched and cannot find the answer to my very simple question.
Is the fuse found in the driver's kick panel inside the cabin that is labled "engine" linked to the fuel system?
Thanks.
Is the fuse found in the driver's kick panel inside the cabin that is labled "engine" linked to the fuel system?
Thanks.
It is according to the S5 shop manual. You can download a copy of the factory service manual from one of the links in the FAQ. The fuse box information is in the Body Electrical Section, page T14.
HAILERS
Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA

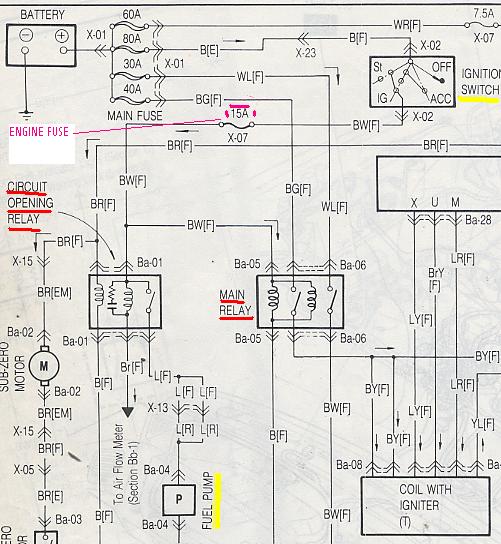

Pulling the ENGINE fuse will disable the Circuit Opening Relay and the Main Relay.
Circuit Opening relay powers the fuel pump and the Main Relay supplies power to the injectors and the ECU.
Circuit Opening relay powers the fuel pump and the Main Relay supplies power to the injectors and the ECU.
