Okay, so after the 5th time of dropping my diff, and having a pinnion snubber my dront diff mount seems to always break, might be the way i drive my car but i have decided to look into it more and seen the V8 FC guys run into this issue more often then the guys on this forum so i decied to add a braket to my front diff mount. I also seen that even with a preloaded Pinion Snubber the diff still had movement and upwards travel, so i added small Qtr inch plate to preload the snubber even after several washers. Long story short here is what i decided to butcher up, and please excuse my awesome slag!!!!


here is the Braket that is goint to actually hold the diff mount in place...







and the plate for the pinnion snubber....




and everything mouted back up....



and that boxed in welded diff mount, i decided to go with a mazdatrix competition mount instead of the stock welded box one that u see there. i didnt see a problem with the solid one, but the studs on the actuall diff mount got stipped when i dropped the diff and decided to not worry about retaping them. By the time i found used diffmount on the classifieds it would take about a week for me to get it in my possesion...



it's that high compression hybrid turbo setup.

good job, i would paint it though because i hate rust.



i will, the car is still up in the air, will scruff it all down...thanks. and i need the engine tuned, i feel like it needs to be fully dialed in lol,



i'll see when i can dig up some time for a road trip.



sounds like an awesome plan!!!



I can see you going around fixing diff mounts like Steve Kan does tuning!Good Job Man!

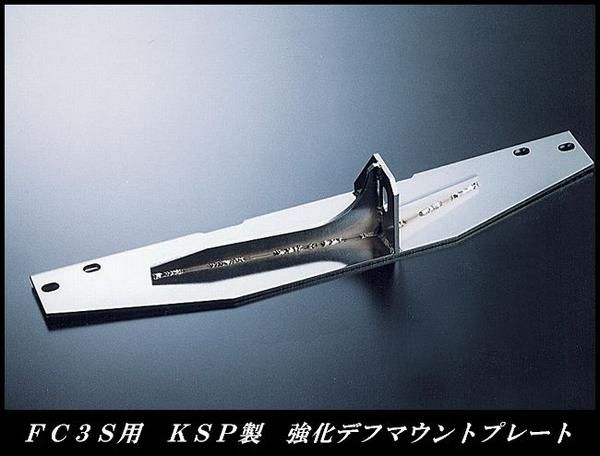

Here's what the japanese do. KSP Attain piece. It bolts in place of the exhaust hangers, then to the stock diff mount where the old mount damper was.



^Want!



That thing looks so easy to duplicate!



ive done something similar before,, using the bushed ends from old rx2 trailing arms to allow a little bit of movement , yet also allow some adjust of the pinion angle when desired

note that this will only fit on a car with a single system exhaust



FACK! i think it would have been easier to just buy that piece, hmmm i think this piece would sell like hotcakes, but at the end of the day all i had to buy was the competition mount, i had everything else. i cant believe thats the first time ive seen that piece.



I haven't torn one yet, I just have delrin rear mounts, and a preloaded snubber. The mounts are a tad noisy, but so is everything else on the car.



Went to horsethief today, wow does that rear end feel nice, the preloaded pinion snubber however made my car soooo noisy, !!! I can hear the shimmed diff clunk when I turn and when it locks under load u can feel the lock. Overall feels good
