Does anyone know what bolts or clips or whatever I need to buy to install the undertray and fender liners? I bought some used ones and need to know so I can get them installed. thanks



m8-m10 and various lengths. I have a baggy full of the fender liner hardware I can take a picture of when I get home. Sorry I do not have more info such as thread pitch etc



Oh that'd be awesome, much appreciated the information.



if you get stuck, go to the Mazda dealership and ask for 9CF6-00-516B, most dealers will stock these, its a common part.

or you could follow Rx8's and pick up the ones that fall off of it



Is that a kit or one bolt? I will soon be in the same position, my undertray bolts were severely rusted when I removed them years ago and I will also need hardware for the TII lip.



That is a great strategy, I've been behind a few RX8's in the past couple of days.



Lol, but yes, dealer should have a bunch of proper, shiny yellow zinc plated ones of exactly the same type. If that's what you want.

If you don't mind them being a bit different, any hardware store can match to a similar bolt with the same thread.



that is just for one screw (its funny to buy screws at the dealership, yes?)

i could look up the hardware for the undercover and S5 lip, i actually need some of it for mine too, whats better, should i post in this thread or just PM?



I have bought hardware at the dealer before, so the idea isn't completely unusual to me, lol. I have access to a parts catalog, so I can find the numbers. But, if you know availability, may as well post it here in the event it may help others.



I have never bought something from a dealer. Do they really carry **** for an 88? Seems like it would all be special order.



in this case every Mazda uses this same screw for stuff under the car, so most dealers stock it, they fall out of the Rx8's all the time.

most of the rest of the Rx7 is actually available, but they will have to order it, which takes a couple of days.



for the fender liners... S4 and S5. all parts come individually.

use the 9CF6-00-516B, not sure on quantity

the bolt with the washer is 9078-60-616

the under cover uses 9078-60-616.

the S5 front air damn uses 9973-50-512

the S4 front air dam uses 9974-00-516B

everything is available new still



Thanks for the info, I'll look into getting this stuff.



The S5 front air dam utilizes the same bolts on the outer part of the lip, 12 I believe, but the next row are 3 Phillips screws, the next 4 are long bolts that go though the lip, underpan and into the bumper support, and the other 9 bolts for the pan are the same. All these bolts contain washers under the head.
The wheel wells. along with the bolts/washers, utilize a push pin at the top and the other unique item is at the inside rear, an unusual looking large octagon plastic "push nut" that slides over the extended stud.

They are available from the dealer, try Tasca parts www.Tascaparts.com. Just ordered over $1100 in parts and have found them to be the least expensive and a great bunch of guys to work with.



Metric hardware is designated by shank size, NOT head size, so what our drunken Northerner is actually talking about is M5 and M6.
Pretty sure all the bolts will be 6mm x 1.0 and there are some screws also.



Damn drunken northerners!



I am 2 months sober, thank you very much! But yea, my bad. Also, I forgot to grab photos. Will try to get them for you tonight.



You're welcome, I guess.

Of course, you picked the two easiest months of the year to do it.
Making it through the nine months of your lunar winter will be the hard part.

30 minutes of sun a day (maybe), glaciers advancing on the back yard and you've already watched all of Breaking Bad and Game of Thrones...what does one do?



Yes, I find the lack of photos disturbing.



you son of a bitch.... Must remain positive and vigilant!



Being positive and vigilant is the best way to be.

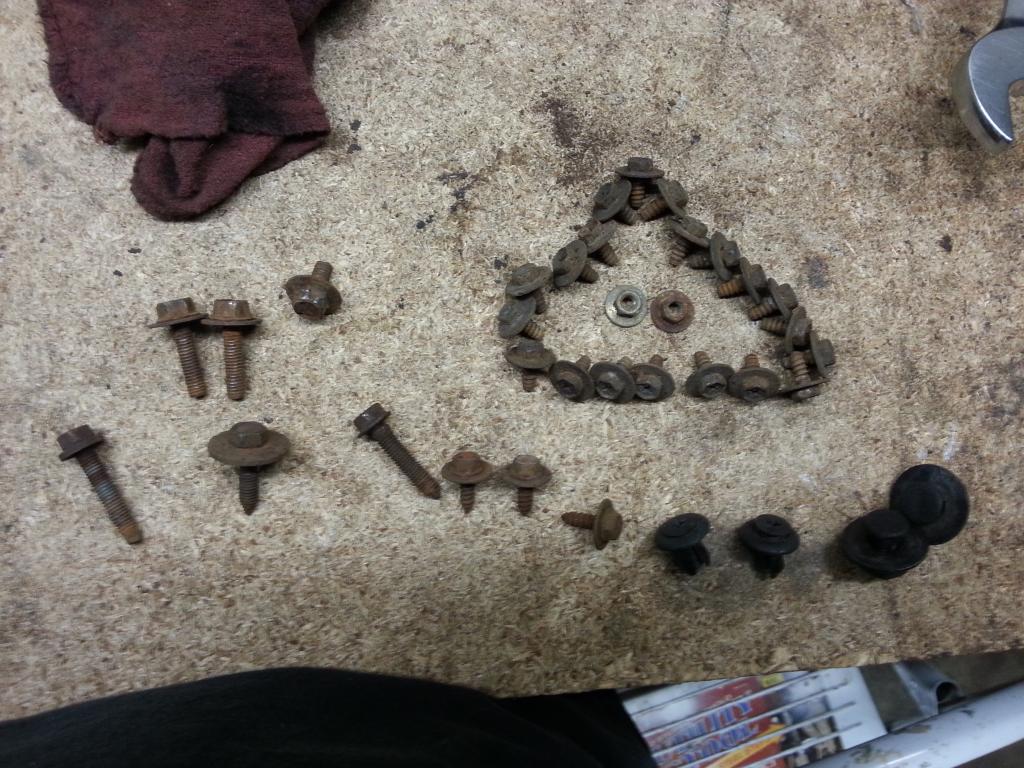

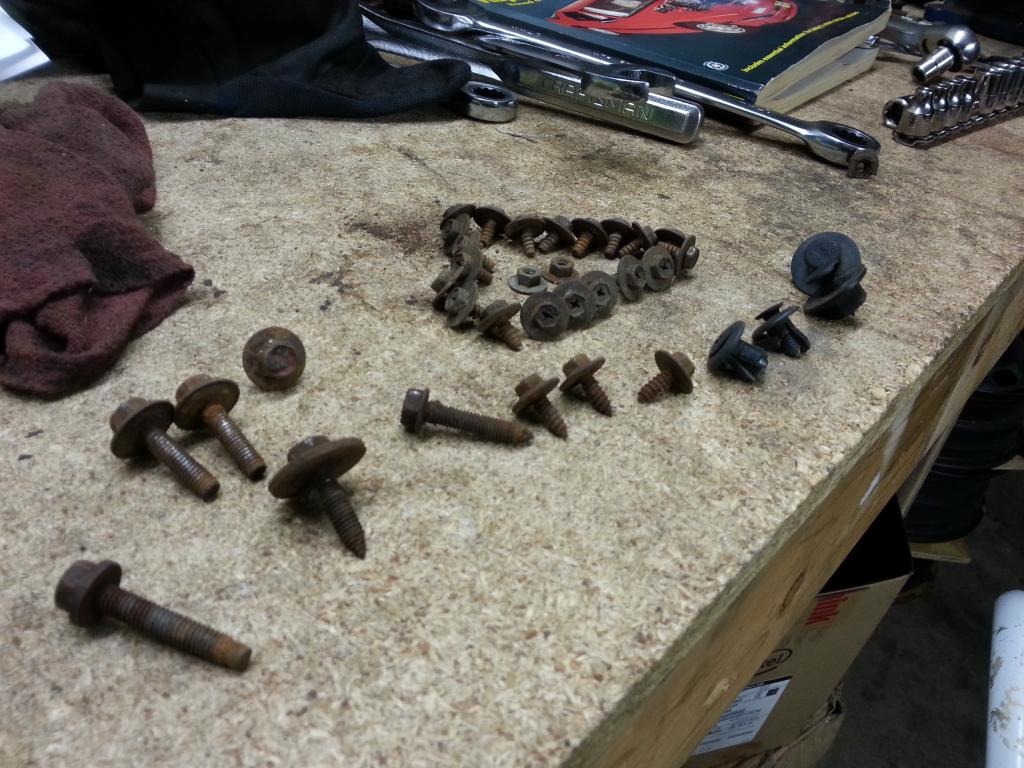

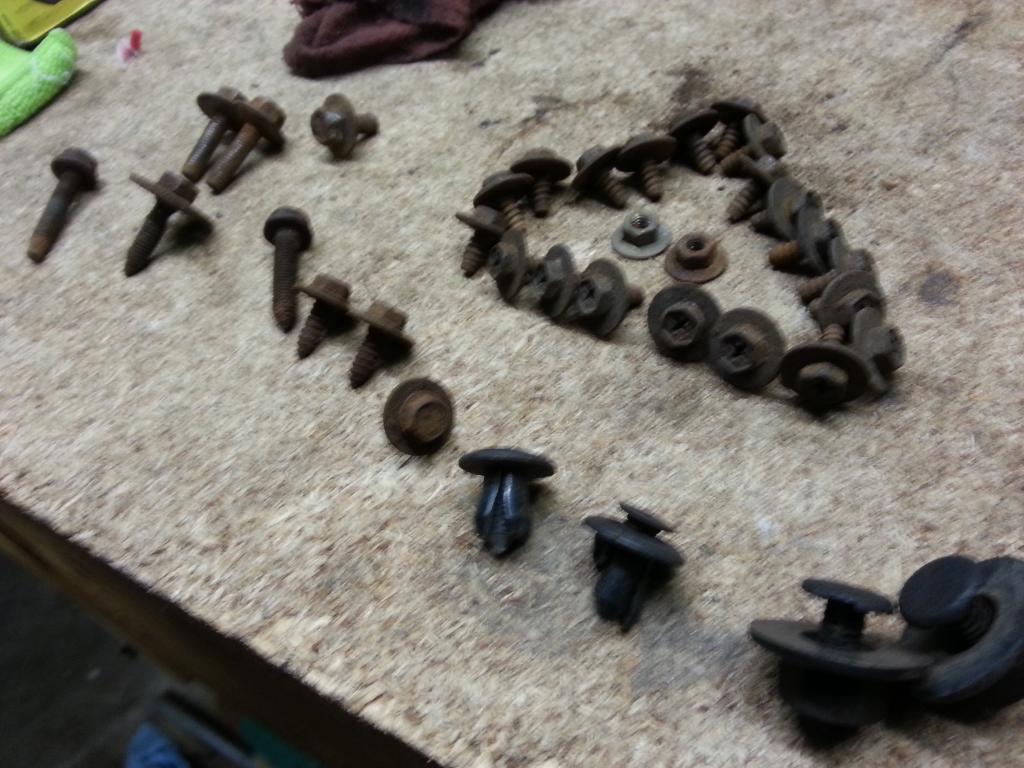

Here they are. These are from my old FC, so I do not know if this is all of it or not.



Awesome, that helps immensely.
