Everyone's Favorite Game... Name That Part!!
#1
Everyone's Favorite Game... Name That Part!!
Ok, I've got a few bits from S4's, Turbo and NA (vert), and am trying to figure out what they all are. To start:

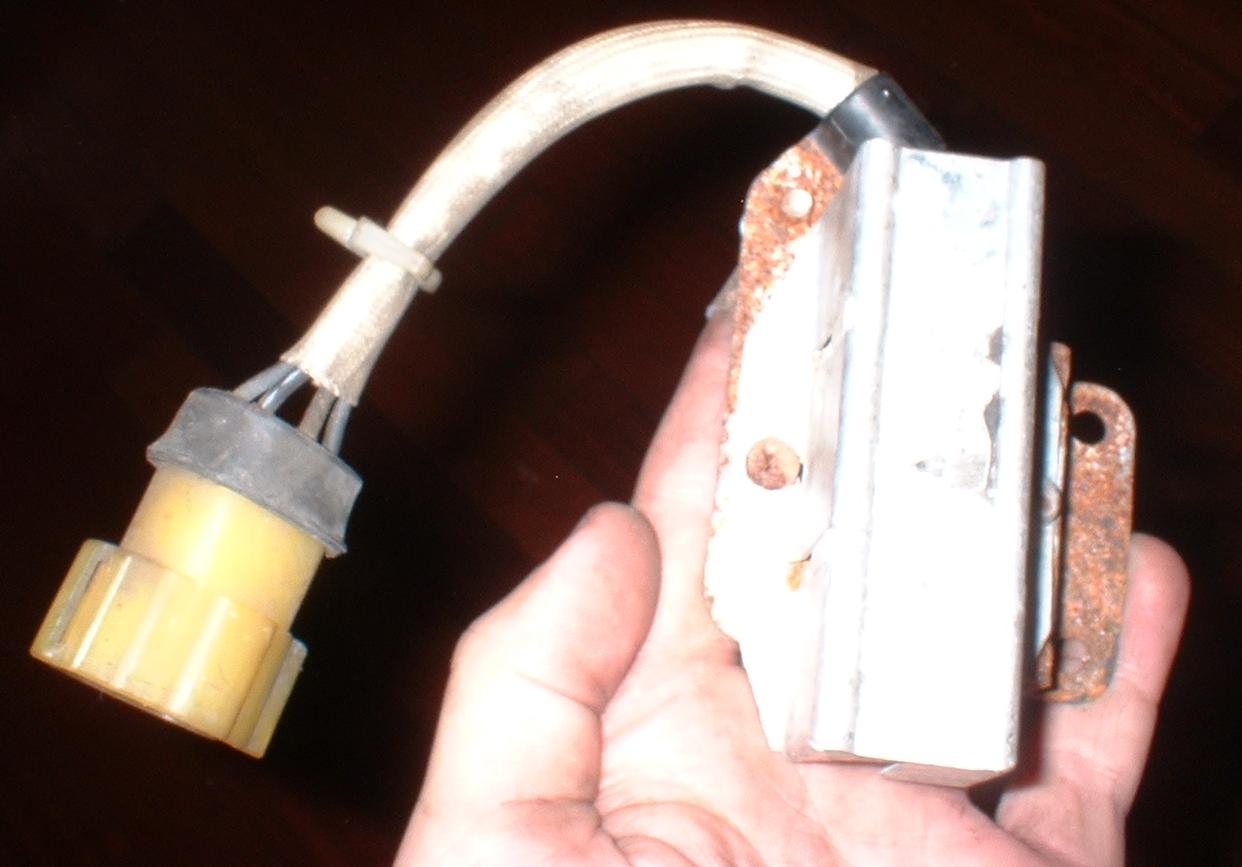

The first one is of a box that I think is a knock control box for an S4, although I really dont know. It was in a bunch of parts that I picked up, and the previous owner didnt really know what it was either

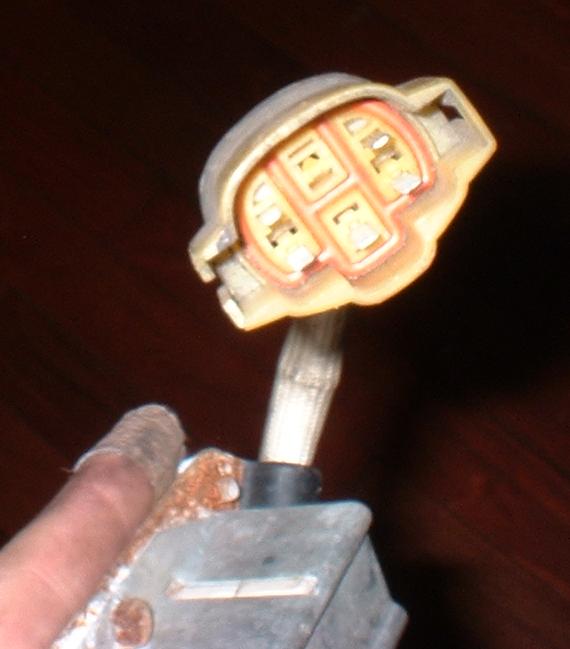

The second is a close-up of the connector of the previous pic

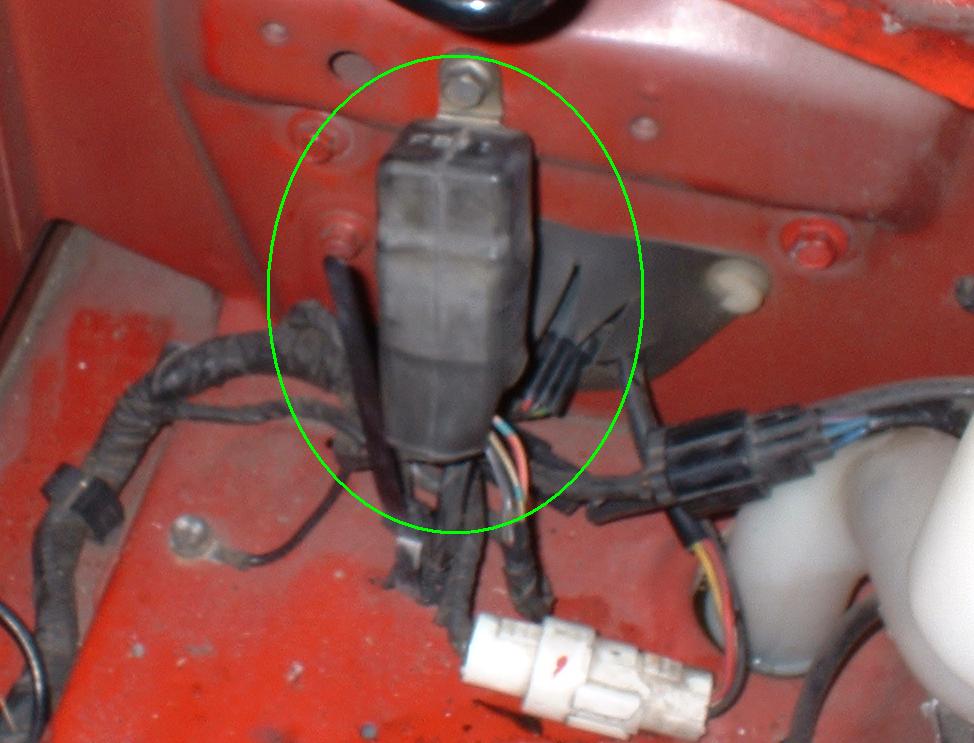

The third is of a relay thats in the engine bay behind the passenger-side headlight on my 88 'vert (NA). Its where the fuel pump resistor relay would reside in a TII

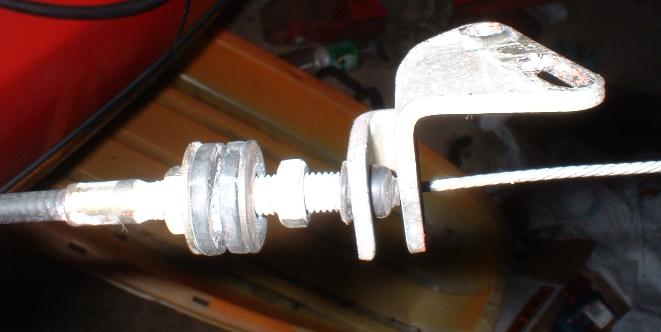

The fourth is to make sure I'm shoving the throttle cable in the bracket the right way. The bracket is off of my NA (the turbo engine was missing it), and I dremelled out space to bolt it onto the turbo UIM, but I dont know how the cable actually attaches (my friend took off the cable when removing my old NA engine and doesnt remember how it was attached)
Thanks!
The first one is of a box that I think is a knock control box for an S4, although I really dont know. It was in a bunch of parts that I picked up, and the previous owner didnt really know what it was either
The second is a close-up of the connector of the previous pic
The third is of a relay thats in the engine bay behind the passenger-side headlight on my 88 'vert (NA). Its where the fuel pump resistor relay would reside in a TII
The fourth is to make sure I'm shoving the throttle cable in the bracket the right way. The bracket is off of my NA (the turbo engine was missing it), and I dremelled out space to bolt it onto the turbo UIM, but I dont know how the cable actually attaches (my friend took off the cable when removing my old NA engine and doesnt remember how it was attached)
Thanks!
#2
my fc broke
Join Date: Feb 2003
Location: rohnert park,CA/ bay area
Posts: 2,231
Likes: 0
Received 0 Likes
on
0 Posts
first pic is a resistor box for low imp injectors. comes on S4's. second pic i think is a relay for headlights but not toally sure.. 3rd pic is a throttle cable with the bracket on it
#3
The fourth pic there was to see if i was putting it together correctly. IIRC, the harness/plugs on both the old NA engine and the turbo engine are high imp, so the box in the first two pics is junk to me (anyone want it? you pay shipping). The third pic, if thats a headlight relay, where would it be in a TII if the fuel pump resistor relay is in it's place?
