correct me if im missing something, i have no end play at all none what so ever. just finished putting my motor back together, its a s4 6port from an 88.

this is the right order? thrust washer,spacer, then slide thrust bearing over spacer, then thrust plate, second thrustwasher, courterweight, oil pump drive gear, cas gear,front pully, i torqued it to spec and i have no end play at all! im using the spacer that i had befor it is a "k" is there somthing im doing wrong?im waiting on a size "T" hope fully this will cure my prob? i also found out that the rear thrust bearing had dropped and gotten smashed when we put the front cover assembly back together but i have a spare.
any help would be greatly apprectiated



If you have zero, it is almost certainly not from the wrong size spacer. My guess is that something in the front stack is screwed up.



http://www.mazdatrix.com/faq/pulley.htm

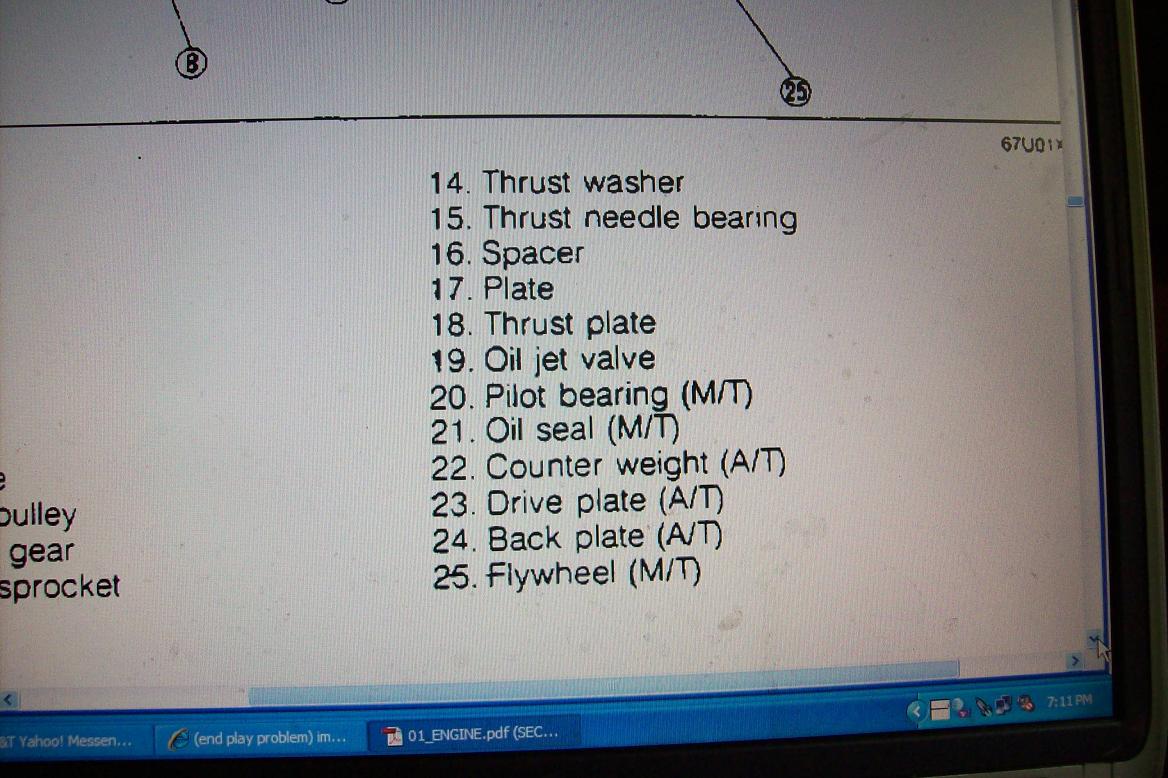

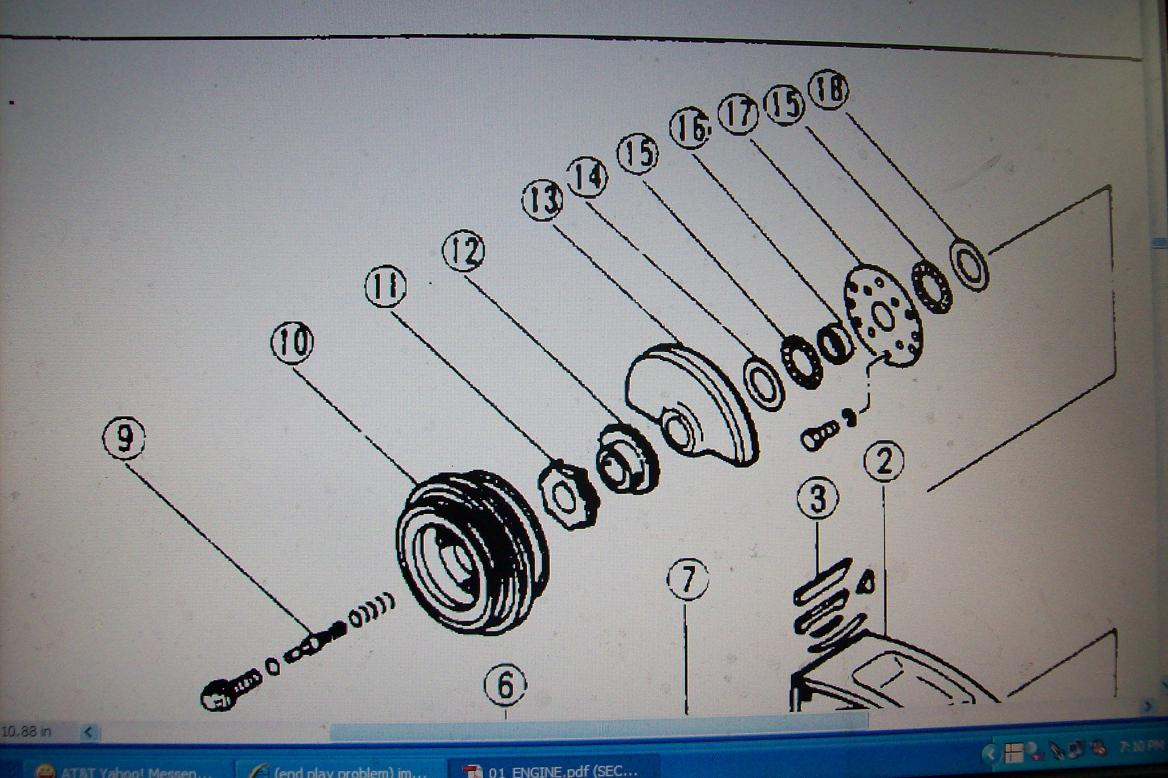

Is there any reason you always snap pics of your screen instead of easily pressing the print screen button and then pasting the image of your screen.

I see you helping people a lot And I just figure this might be easier if you didn't know.



well i checked everything imn the front stack as you mentioned, is all good, i have a freind helping me build it hes done 10 or 11 motors ported them all, and i tried the "S" size spacer today and i have endplay now.i went over everything over and over agian and found nothing else.
