emmisions seliniod wire ?
previous owner cut my wireharness and need to know which wires go to which seliniods i have:
black w/ white line and orange ring
black w white line
black w/ white line and orange ring
blue w/ black line
blue w/ white line
blue w/ yellow line
blue w/ red line
blue w/ red line and orange ring
blue w/ orange line
blue w yellow line and orange ring
thank you in advance
black w/ white line and orange ring
black w white line
black w/ white line and orange ring
blue w/ black line
blue w/ white line
blue w/ yellow line
blue w/ red line
blue w/ red line and orange ring
blue w/ orange line
blue w yellow line and orange ring
thank you in advance
12-03-08, 02:26 PM
#2
Senior Member
Thread Starter
iTrader: (1)
Join Date: Dec 2001
Location: Salt Lake City
Posts: 655
Likes: 0
Received 0 Likes
on
0 Posts
sorry it was late last night and should have said that it is an 88t2 that i am replacing all emissions stuff back onto it now i need to solder new wires onto the old ones that were cut then hook them up to the switching, egr,relief,press reg, twin scroll soleniods. i have the scematics for this in my service manual but cant really read that to good to tell what color the wires are
12-03-08, 09:16 PM
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

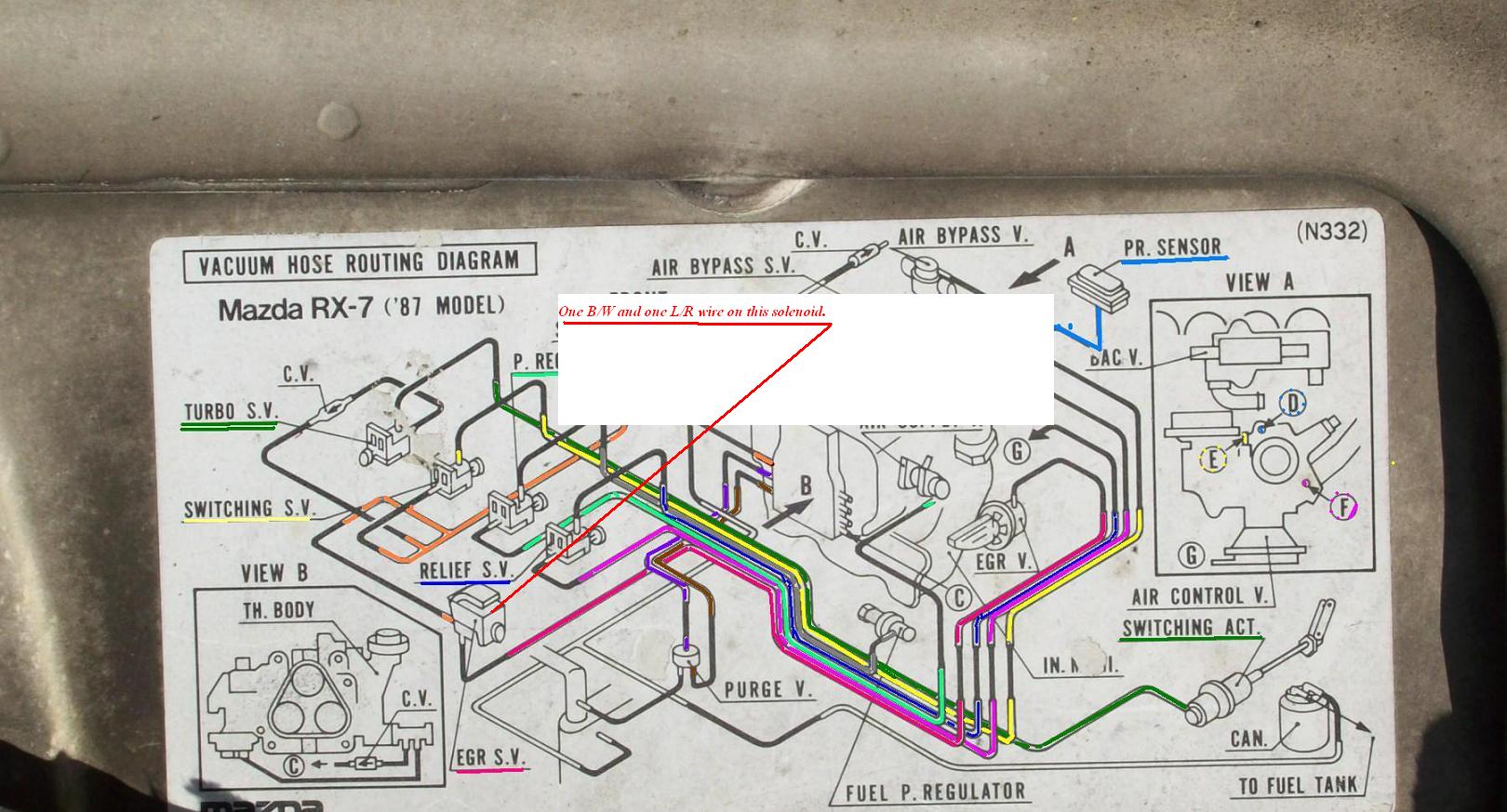

The FIRST jpg in my first post, shows the location of each solenoid on a series four Turbo car.

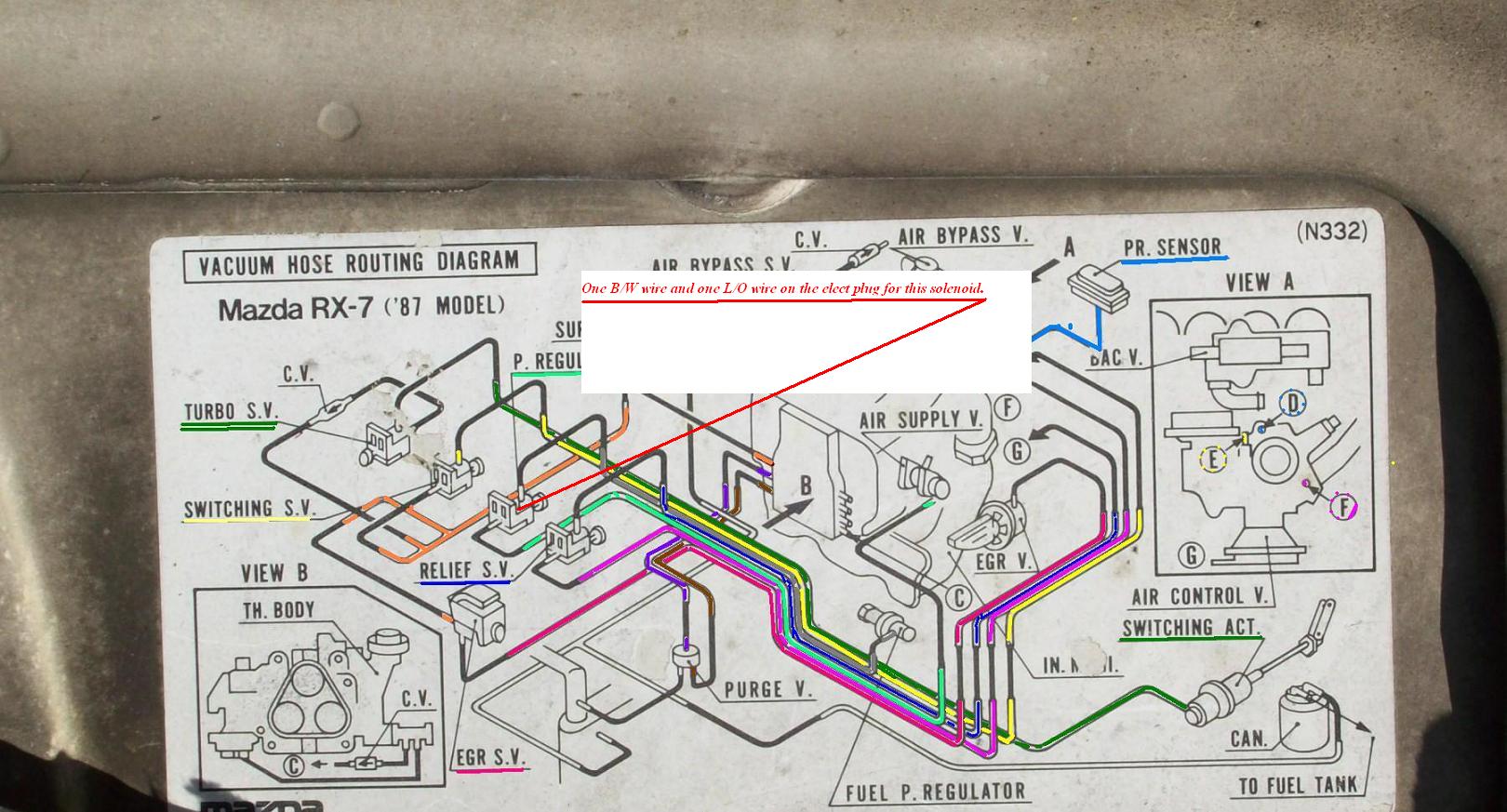

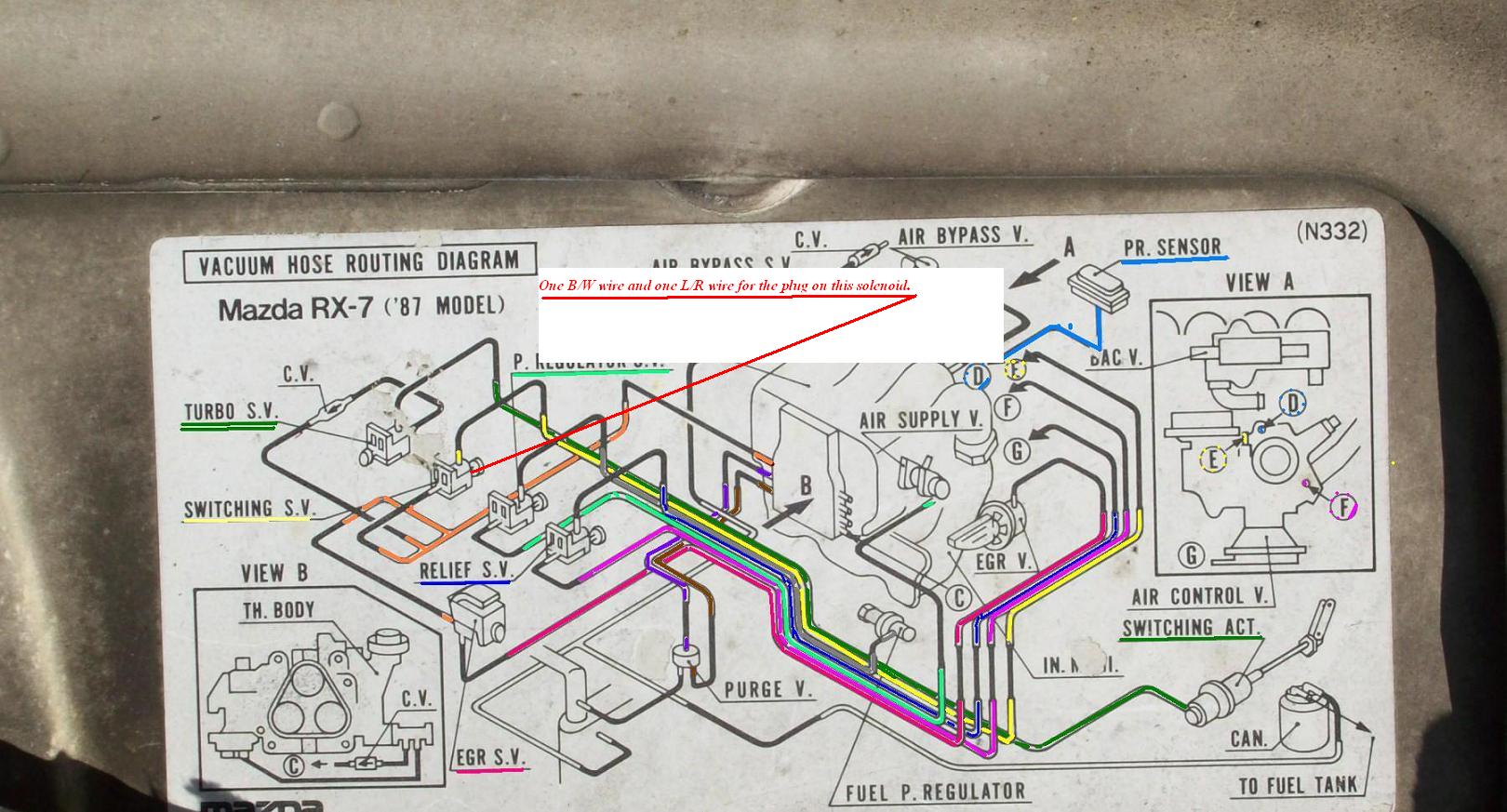

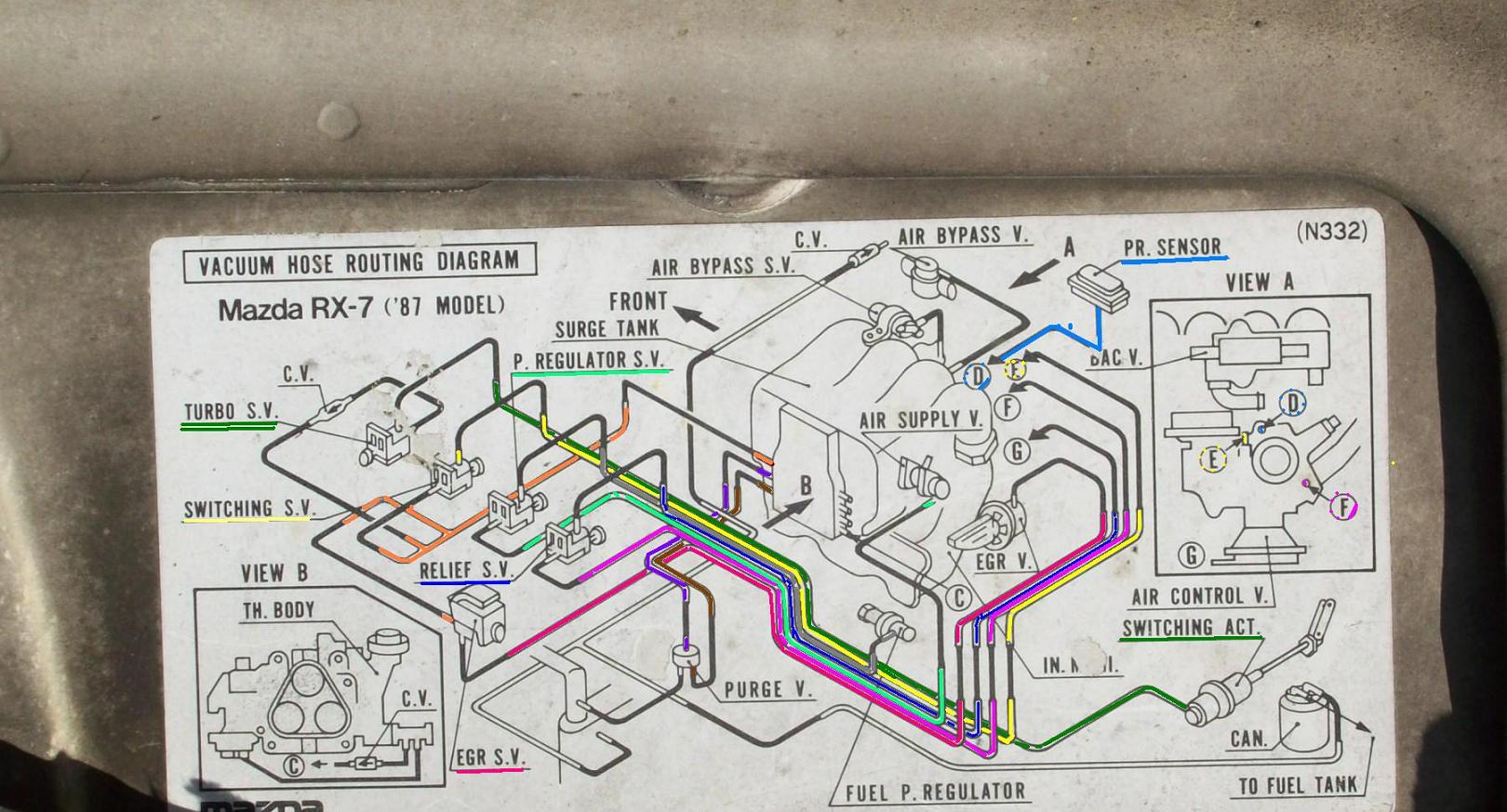

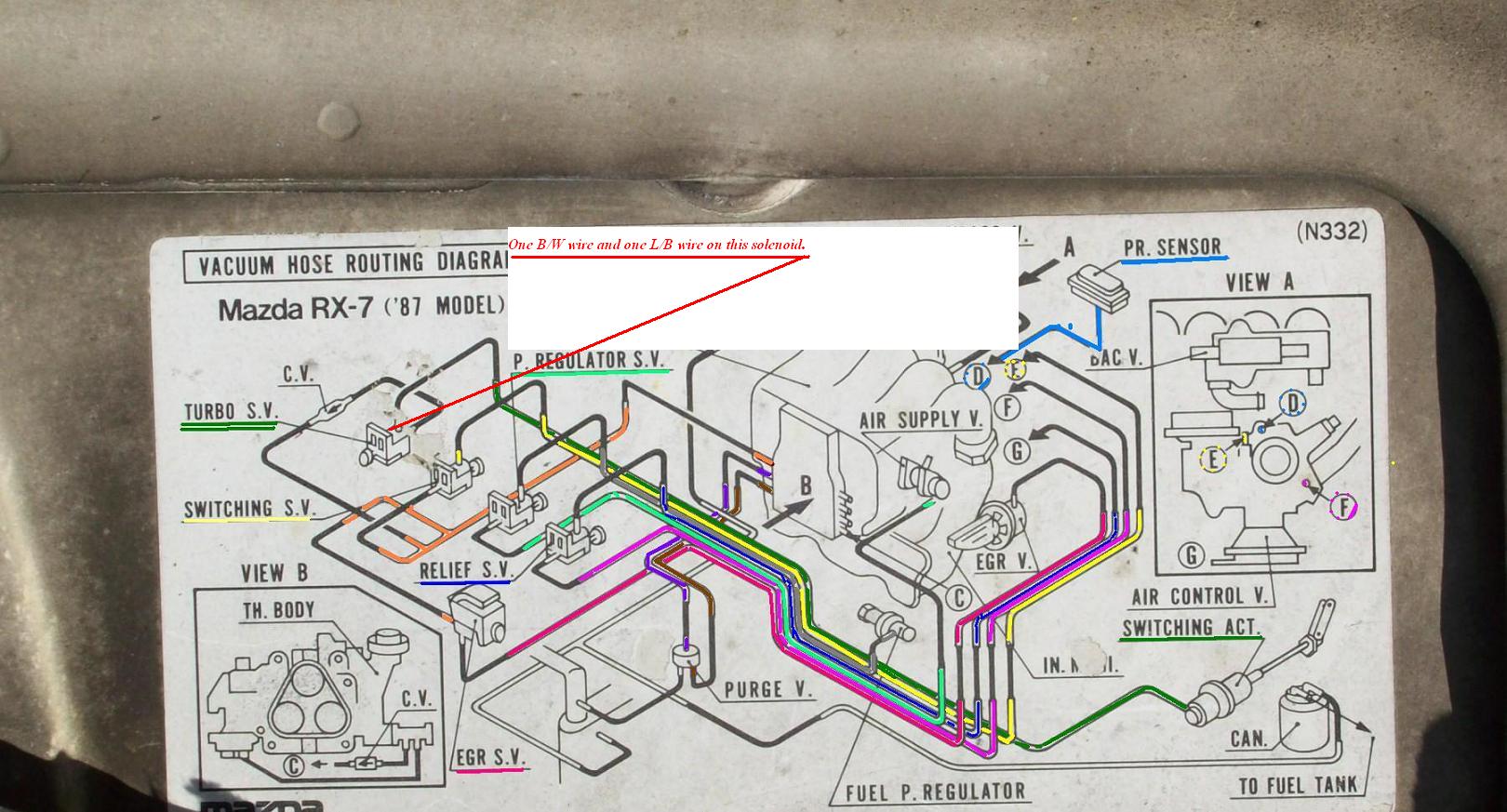

The SECOND jpg in my first post, shows the color of the wires on each solenoid.
Each and every solenoid has two wires. One of those wires is Black/White or black with a white stripe.
The other wire on each solenoid is of another color. THAT color is shown in the second jpg. I underlined each solenoid with a RED line in that second jpg.

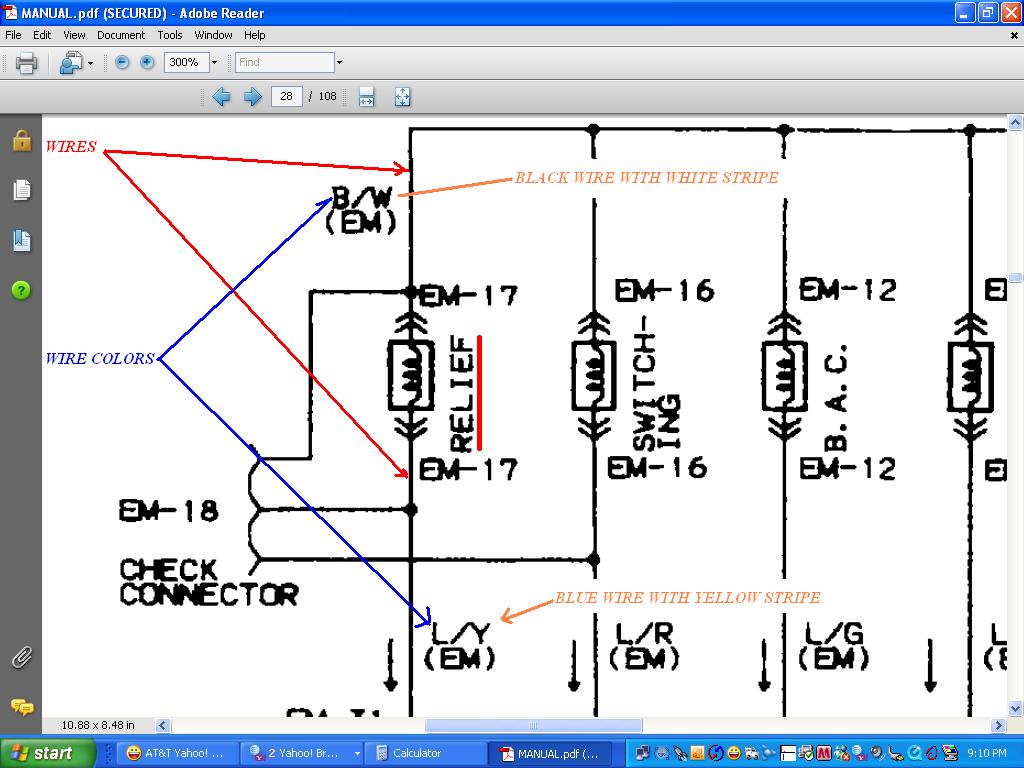

An example is the RELIEF solenoid underlined in RED. You see a *B/W* on the top side of the Relief solenoid. That is the black wire with white stripe. On the other side of the solenoid is L/Y which is a Blue wire with a Yellow stripe.
So the plug that goes on the Relief solenoid has a black wire with white stripe and another wire that is blue with a yellow stripe.
The other solenoid are designated in the same way.

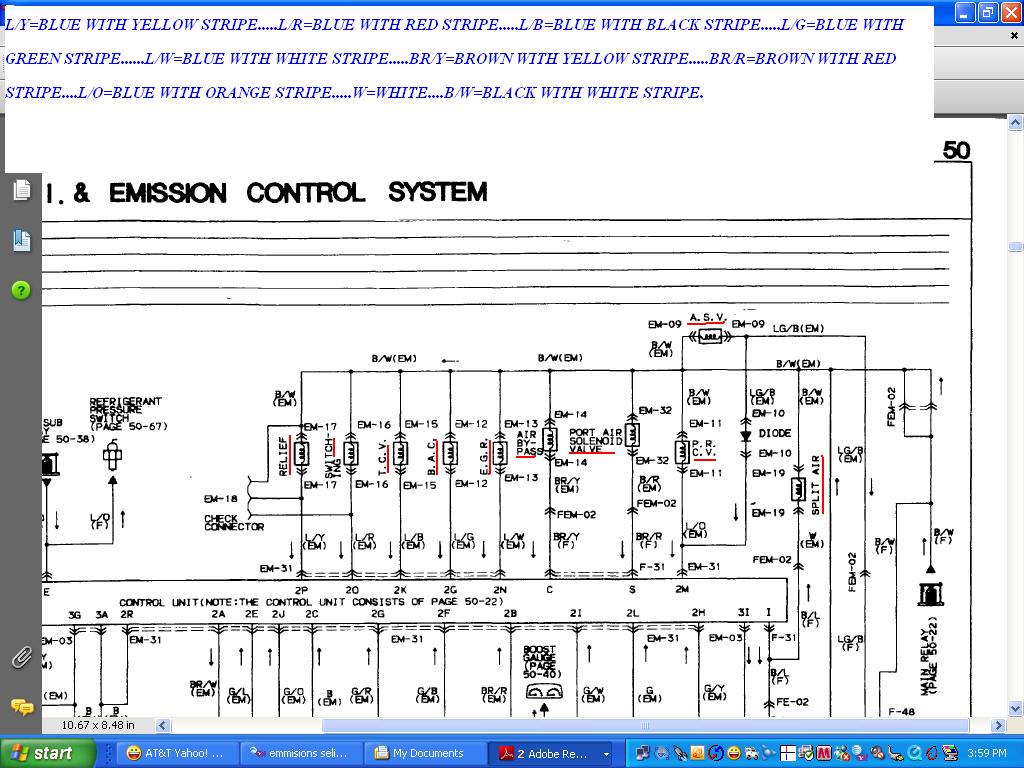

At the top of the second jpg I wrote words telling what each symbol represents. I wrote it in capital letters and all BLUE.
The SECOND jpg in my first post, shows the color of the wires on each solenoid.
Each and every solenoid has two wires. One of those wires is Black/White or black with a white stripe.
The other wire on each solenoid is of another color. THAT color is shown in the second jpg. I underlined each solenoid with a RED line in that second jpg.
An example is the RELIEF solenoid underlined in RED. You see a *B/W* on the top side of the Relief solenoid. That is the black wire with white stripe. On the other side of the solenoid is L/Y which is a Blue wire with a Yellow stripe.
So the plug that goes on the Relief solenoid has a black wire with white stripe and another wire that is blue with a yellow stripe.
The other solenoid are designated in the same way.
At the top of the second jpg I wrote words telling what each symbol represents. I wrote it in capital letters and all BLUE.
12-05-08, 08:32 AM
#6
Senior Member
Thread Starter
iTrader: (1)
Join Date: Dec 2001
Location: Salt Lake City
Posts: 655
Likes: 0
Received 0 Likes
on
0 Posts
thanks for the info hailers, just one more thing, i only have 3 black wires with white stripes and the 5 blues that are supposed to be there and 2 extras: blue w/ yellow stripe and orange ring around it and blue w/ red stripe and orange ring around it, what do you think these are for?
12-05-08, 09:20 AM
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Which wires go to which solenoid are in the attached jpg.
Why you don't have enough BLACK wire with White stripes is something I can't explain. They should be there.
L/O is blue with orange stripe.
L/W is blue with white stripe.
L/R is blue with red stripe.
L/B is blue with black stripe.
L/Y is blue with yellow stripe.
The letter L represents BLUE
RING colors mean nothing. Only the color of the wire and the color of the stripe on the wire. Done.
