electric industrial blower
#1
Let me Axe you a question
Thread Starter
Join Date: Dec 2005
Location: irmo, sc
Posts: 212
Likes: 0
Received 0 Likes
on
0 Posts
electric industrial blower
so i have a 88 se with 129k miles on it, i would just drop in a turbo rotary, but since i am not the true owner of the car i cant. my dad came up with an interesting idea that he wants to try off an idea my buddy gave me. his idea was taking a 32cc common yard blower and using it to create boost for a vw, which was previously done and worked. i am going to build kind of an electric supchercharger. ametektmd.com sells electric motors and blowers, the motors can range up to 15,000 rpms and the blowers run up to 39 cfm at a 12 volt current and 242 cfm if i can get 120 volts to run in my car. i can run even higher cfm if i can run a higher current in it, and the motor/blower setup does not get to bulky. i am not sure how effective that much boost will run but i am sure that it has to be more then a leaf blower. i am looking to make just a few psi has anyone tried this? i really need some input on this before i start spending hundreds on this electric charger system i want to do
I just found it an interesting idea that whenever i want i can change the boost level and run it at full boost at idle where the rotary lacks the most, no only that but the na's burn rich, so hopefully it will thin out the mix and will burn better at the lower end range and every 1psi put on the engine i heard you gain 9.5-10.5 hp. not only that you dont have to play with the serious heat from the exhuast, and you dont lose hp from the crank like a supercharger does. and the setup does not weigh a lot, the 10,000 rpm motor only weighed 5lbs.
I just found it an interesting idea that whenever i want i can change the boost level and run it at full boost at idle where the rotary lacks the most, no only that but the na's burn rich, so hopefully it will thin out the mix and will burn better at the lower end range and every 1psi put on the engine i heard you gain 9.5-10.5 hp. not only that you dont have to play with the serious heat from the exhuast, and you dont lose hp from the crank like a supercharger does. and the setup does not weigh a lot, the 10,000 rpm motor only weighed 5lbs.
Last edited by pyscho7; 03-20-06 at 09:47 AM.
#2
Former Moderator. RIP Icemark.
Well since non turbos can draw over 242 CFM, as proven countless times, in countless threads here, your yard blower would not work for any car for the following reasons:
#1 insufficent volumn of air
#2 insuficent pressure
#3 Insufficent power to supply enough current to push an electrical motor at the speeds to overcome #1 and #2
#4 Insufficent size of the blower's runners to not be a restriction even when the blower is off.
So, anyone telling you that he has made something like that work, is probably smoking crack and has no clue about flow dynamics on a automotive intake system.
Thread closed, won't work on paper, well alone in a car, and has been tried and covered countless times.
#1 insufficent volumn of air
#2 insuficent pressure
#3 Insufficent power to supply enough current to push an electrical motor at the speeds to overcome #1 and #2
#4 Insufficent size of the blower's runners to not be a restriction even when the blower is off.
So, anyone telling you that he has made something like that work, is probably smoking crack and has no clue about flow dynamics on a automotive intake system.
Thread closed, won't work on paper, well alone in a car, and has been tried and covered countless times.
#4
Former Moderator. RIP Icemark.
BTW, the only effective Electric super charger system, uses three 70 amp electric motors, to move one single blower at high enough pressure and volumn to provide up to 1 PSI on a automotive intake.
Not sure what the amperage draw of your motor is, but I would suspect less than even 7 amps at 120 volts as most household wall recepticals are rated a maximum of 10 amps.
<edit... just to see the other responses I am gonna re-open this thread

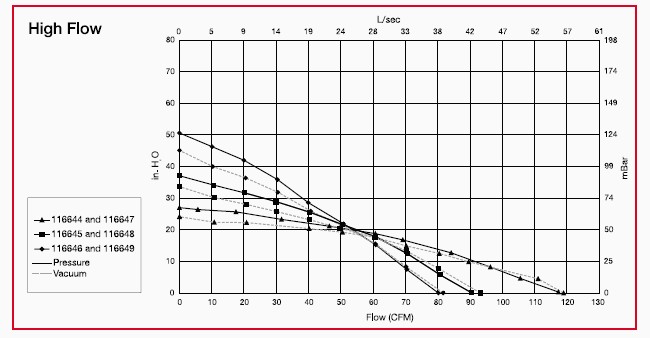

Just to see, lets look at the high voltage flow through blowers from the company you mention... lets look at the highest flow 120volt flow through they have...
Whooops it sure goes flat fast... not even enough CFM to boost a car at idle, well alone needing 250 watts to do it...
Not sure what the amperage draw of your motor is, but I would suspect less than even 7 amps at 120 volts as most household wall recepticals are rated a maximum of 10 amps.
<edit... just to see the other responses I am gonna re-open this thread
Just to see, lets look at the high voltage flow through blowers from the company you mention... lets look at the highest flow 120volt flow through they have...
Whooops it sure goes flat fast... not even enough CFM to boost a car at idle, well alone needing 250 watts to do it...
Last edited by Icemark; 03-20-06 at 10:34 AM.
#5
Icemark is correct to a degree... the electric supercharger system I believe he is talking about is the Eram. It has been out for a while but is not popular simply because it is a $400 system that yields very little gains. I have however seen a blower motor hooked up to an intake of a civic dynoed and it yielded another 7hp give or take which in my mind is not bad. This is just too expensive for what you get if you can even get it to work. Stick with regular bolt ons or toss a 45 shot of nitrous in there thats of course if you cant afford a TII swap.
Check google for eram it may come up
I did it for you http://www.electricsupercharger.com/
Check google for eram it may come up
I did it for you http://www.electricsupercharger.com/
Last edited by Xbladr; 03-20-06 at 10:34 AM.
#6
Former Moderator. RIP Icemark.
Originally Posted by Xbladr
Icemark is correct to a degree... the electric supercharger system I believe he is talking about is the Eram. It has been out for a while but is not popular simply because it is a $400 system that yields very little gains. I have however seen a blower motor hooked up to an intake of a civic dynoed and it yielded another 7hp give or take which in my mind is not bad. This is just too expensive for what you get if you can even get it to work. Stick with regular bolt ons or toss a 45 shot of nitrous in there thats of course if you cant afford a TII swap.
Check google for eram it may come up
I did it for you http://www.electricsupercharger.com/
Check google for eram it may come up
I did it for you http://www.electricsupercharger.com/
I wouldn't consider only 1 PSI max being useful for anything
Think it was the Boosthead.com one, with their base model producing around 455 CFM at around 6 PSI
Last edited by Icemark; 03-20-06 at 10:56 AM.
#7
I live in the lounge...
Join Date: Aug 2004
Location: lathrup, MI
Posts: 2,000
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Xbladr
Icemark is correct to a degree... the electric supercharger system I believe he is talking about is the Eram. It has been out for a while but is not popular simply because it is a $400 system that yields very little gains. I have however seen a blower motor hooked up to an intake of a civic dynoed and it yielded another 7hp give or take which in my mind is not bad. This is just too expensive for what you get if you can even get it to work. Stick with regular bolt ons or toss a 45 shot of nitrous in there thats of course if you cant afford a TII swap.
Check google for eram it may come up
I did it for you http://www.electricsupercharger.com/
Check google for eram it may come up
I did it for you http://www.electricsupercharger.com/
Trending Topics
#8
I think I'm addicted
Originally Posted by Xbladr
Icemark is correct to a degree... the electric supercharger system I believe he is talking about is the Eram. It has been out for a while but is not popular simply because it is a $400 system that yields very little gains. I have however seen a blower motor hooked up to an intake of a civic dynoed and it yielded another 7hp give or take which in my mind is not bad. This is just too expensive for what you get if you can even get it to work. Stick with regular bolt ons or toss a 45 shot of nitrous in there thats of course if you cant afford a TII swap.
Check google for eram it may come up
I did it for you http://www.electricsupercharger.com/
Check google for eram it may come up
I did it for you http://www.electricsupercharger.com/
they unhooked the intake filter, and jammed in the blower?
yes in the video it did yield about 7-10hp. and it did it again for a truck to make sure...
but i don't see how u can mount such a big blower in the car.
#9
Senior Member
iTrader: (8)
Join Date: Nov 2003
Location: Green Bay
Posts: 533
Likes: 0
Received 0 Likes
on
0 Posts
there is the thomas knight electric supercharger kit. it makes about 6 psi @ 355 or so cfm, cost $1300. it uses 3 modified car starter motors and 2 additional batteries to run and a boosted alternator to keep the charge. it can be used in 15sec bursts. and fits in just about any car. but $1600 or so after install and batteries and whatnot.
#10
Let me Axe you a question
Thread Starter
Join Date: Dec 2005
Location: irmo, sc
Posts: 212
Likes: 0
Received 0 Likes
on
0 Posts
well damn that just shot down my fun idea, guess im not going to be running it off the electrical system. the amps was the one thing that had me leanin towards it wasnt a very thought out plan. oh well i guess i can spend my money on something else like computer tuning and exhaust
#11
Sharp Claws
iTrader: (30)
if you want to try it for fun get a gas powered blower and try that, boot the electric motor idea out the window because of the current draw and lack of CFM. the gas powered blower may not be workable for a full time solution but you could maybe do a few runs down the block.
#12
Sharp Claws
iTrader: (30)
Originally Posted by Cybaster
you mean the CPracing (some say not the CP racing we know of ) video with a gas yard blower hooked up to a civic EP3?
they unhooked the intake filter, and jammed in the blower?
yes in the video it did yield about 7-10hp. and it did it again for a truck to make sure...
but i don't see how u can mount such a big blower in the car.
they unhooked the intake filter, and jammed in the blower?
yes in the video it did yield about 7-10hp. and it did it again for a truck to make sure...
but i don't see how u can mount such a big blower in the car.
in SC you only need wheels and a windshield for your car to be legal on the roads, lol
