Earthing Probs
I have some real wierd issues with a 1991 TII Cab ( jap spec )
when you try and start the car - all the relays click like mad and it wont run
ontop off all this the lights dont move up or down
someone has suggested a bad earth
SO ..........
does anyone know where all the earthing points are on these cars
i have looked EVERYWHERE and cant seem to find a list of them
any one on here have any idea ( and maybe some pics )
Thanks
Stu
( i know that the battery is one , there is one under the IC on the back right bolt - if looking from the front - there has to be more that 2 ??!! )
when you try and start the car - all the relays click like mad and it wont run
ontop off all this the lights dont move up or down
someone has suggested a bad earth
SO ..........
does anyone know where all the earthing points are on these cars
i have looked EVERYWHERE and cant seem to find a list of them
any one on here have any idea ( and maybe some pics )
Thanks
Stu
( i know that the battery is one , there is one under the IC on the back right bolt - if looking from the front - there has to be more that 2 ??!! )
#2
Rotary Freak
iTrader: (16)
check the battery- sounds like it could be weak
if that doesnt work try putting more earth in the car. get a metal ( conductive ) shovel and dig up a small amount of fresh dirt. make sure the dirt is fresh. it should smell earthy. take a handful of the dirt and make a small pile on the negative side of the battery to increase it's electronegativity.
if that doesnt work try putting more earth in the car. get a metal ( conductive ) shovel and dig up a small amount of fresh dirt. make sure the dirt is fresh. it should smell earthy. take a handful of the dirt and make a small pile on the negative side of the battery to increase it's electronegativity.
#3
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
It really just sounds like the battery earth/gnd is not making good contact, either AT the negative post OR maybe where it terminates at the LONG starter bolt. That bolt might be loose. The other place the negative cable on the battery connects is just below the left strut tower (USA version anyway).

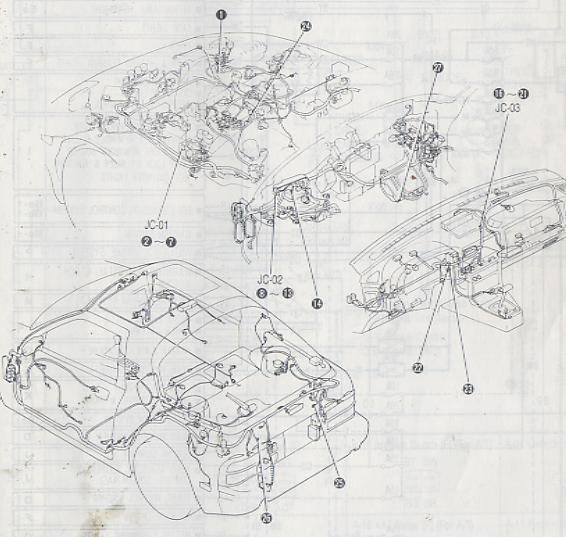

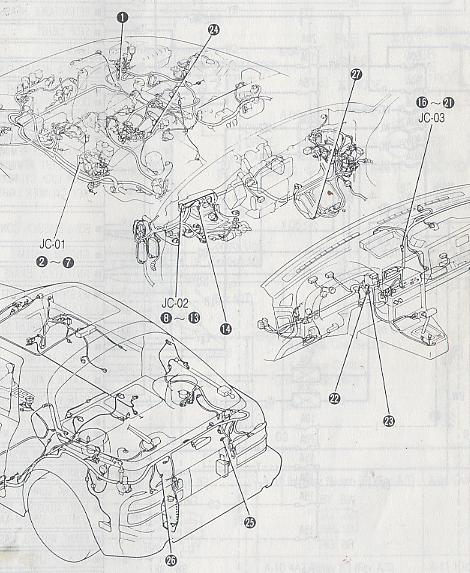

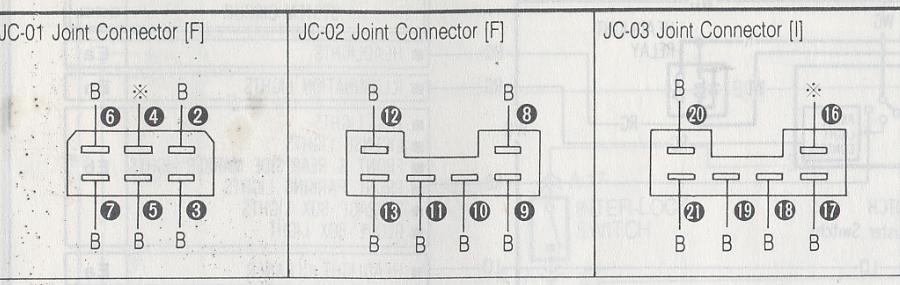

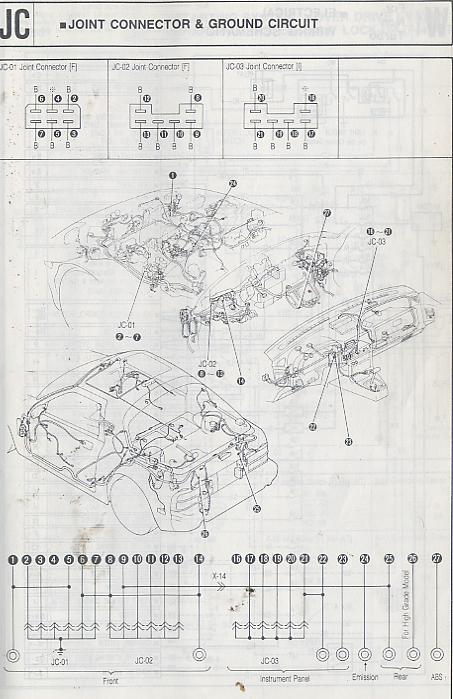

In the online and free for a download FSM, there is a page that shows all the gnds. I posted it in a jpg once upon a time.
THe attached jpgs I'm sure will be unreadable but it'll give you an idea.
In the online and free for a download FSM, there is a page that shows all the gnds. I posted it in a jpg once upon a time.
THe attached jpgs I'm sure will be unreadable but it'll give you an idea.
#5
Taste great, more filling
iTrader: (1)
Join Date: Feb 2005
Location: Dallas, TX
Posts: 2,012
Likes: 0
Received 0 Likes
on
0 Posts
Or if the starter doesn't engage, then all you'll hear is the starter solenoid kicking. Mine does this. If I hit it 2 or 3 times in a row, it'll usually turn over. If it did work fine and now nothing, I would bet this is it.
#6
Senior Member
Thread Starter
Join Date: Jan 2003
Location: UK
Posts: 282
Likes: 0
Received 0 Likes
on
0 Posts
car cranks just fine to be honest
its just that all the realys are going made ( AC realy , one under the air box , sounds like the BAC aswell and prob a few others )
i have put a HUGE cable from the neg terminal to the place where the fuse box bolts to the strut wall - still doing the clicking - so need to add a few more
if it doesnt work - then i can rule it out
thanks for the help so far - if i get it working - i will try and get some pics up to help others
ta
stu / grinder
Note : i have the FSM but couldnt find anything to do with grounds ??
its just that all the realys are going made ( AC realy , one under the air box , sounds like the BAC aswell and prob a few others )
i have put a HUGE cable from the neg terminal to the place where the fuse box bolts to the strut wall - still doing the clicking - so need to add a few more
if it doesnt work - then i can rule it out
thanks for the help so far - if i get it working - i will try and get some pics up to help others
ta
stu / grinder
Note : i have the FSM but couldnt find anything to do with grounds ??
#7
Senior Member
Thread Starter
Join Date: Jan 2003
Location: UK
Posts: 282
Likes: 0
Received 0 Likes
on
0 Posts
thats a superb grounding link - cant really make out from the pics where they are - but its a very very good read
thanks for the images aswell - do you have any decent sized one - or where i can download them - like i said - i dont have them in my FSM
Stu
thanks for the images aswell - do you have any decent sized one - or where i can download them - like i said - i dont have them in my FSM
Stu
