Dug these pictures out of my 13BT engine, thought you guys would like it
Dug these pictures out of my 13BT engine, thought you guys would like it
These are a few pictures of a rebuild I recently completed. The engine was running rough. Compression was strong on the front and down by 30% on the rear so I reluctantly opened her up.

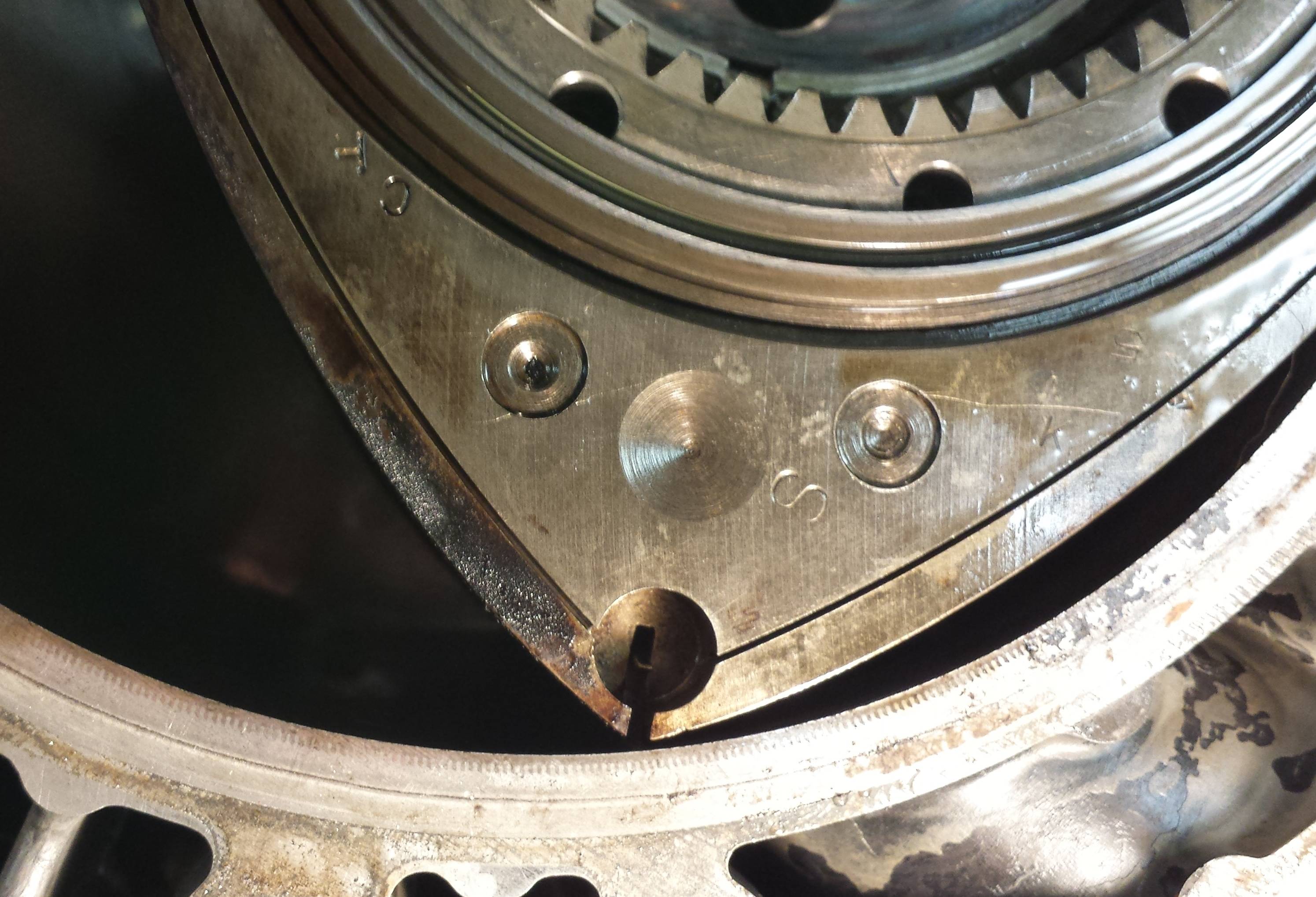

One of these corners is not like the others...

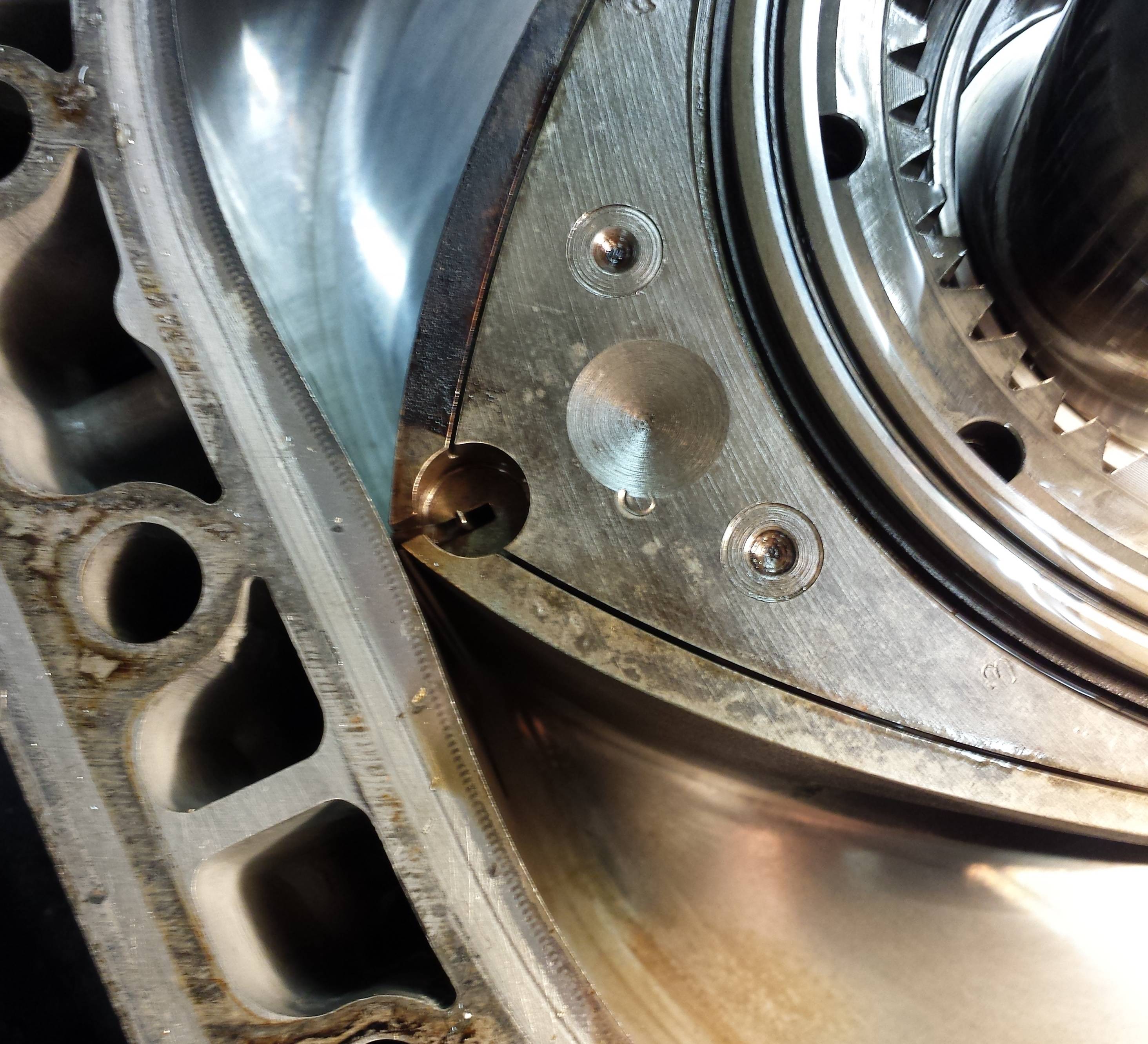

This is what good sealing looks like:

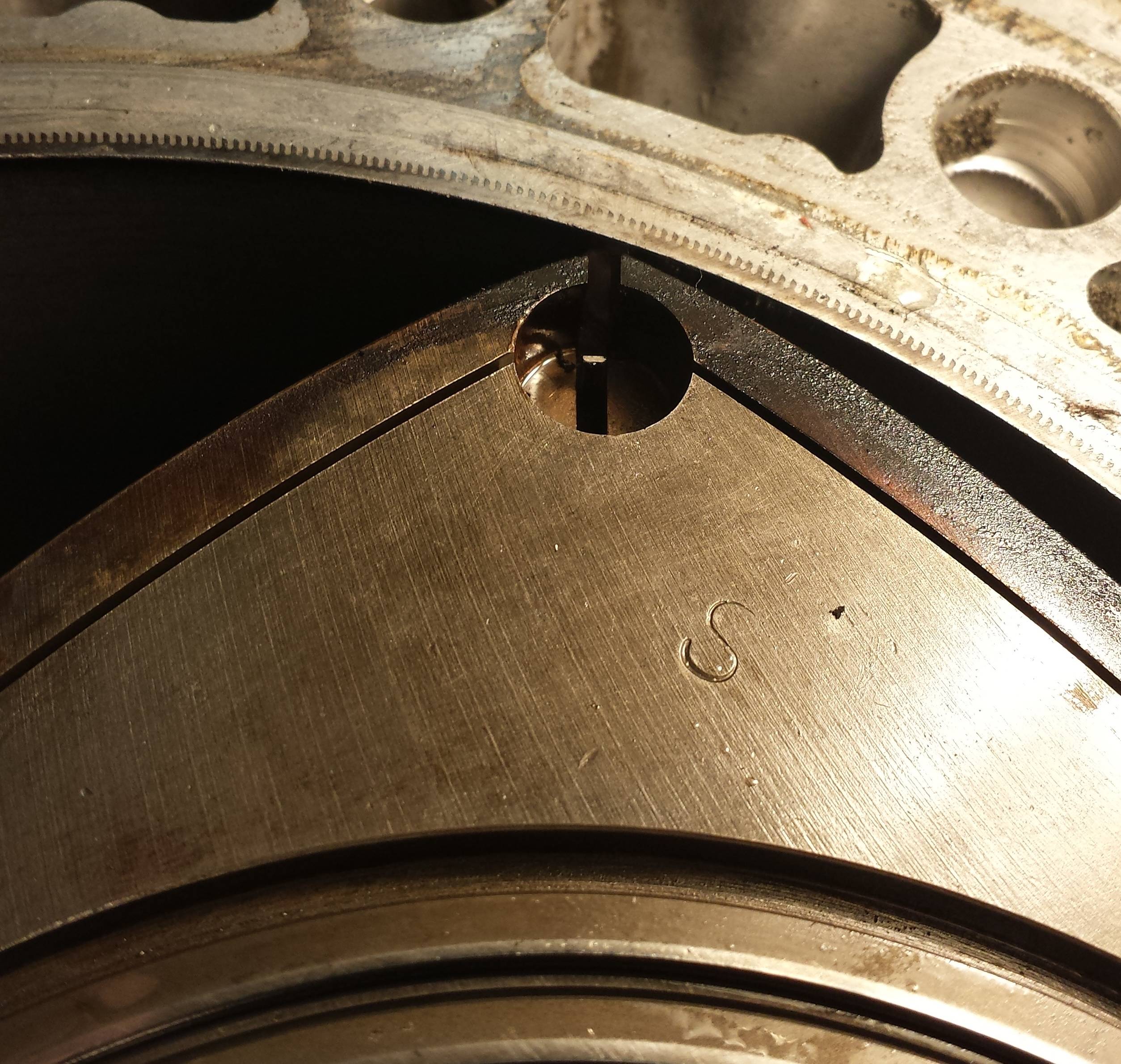

And this is what a sticking corner seal look like:

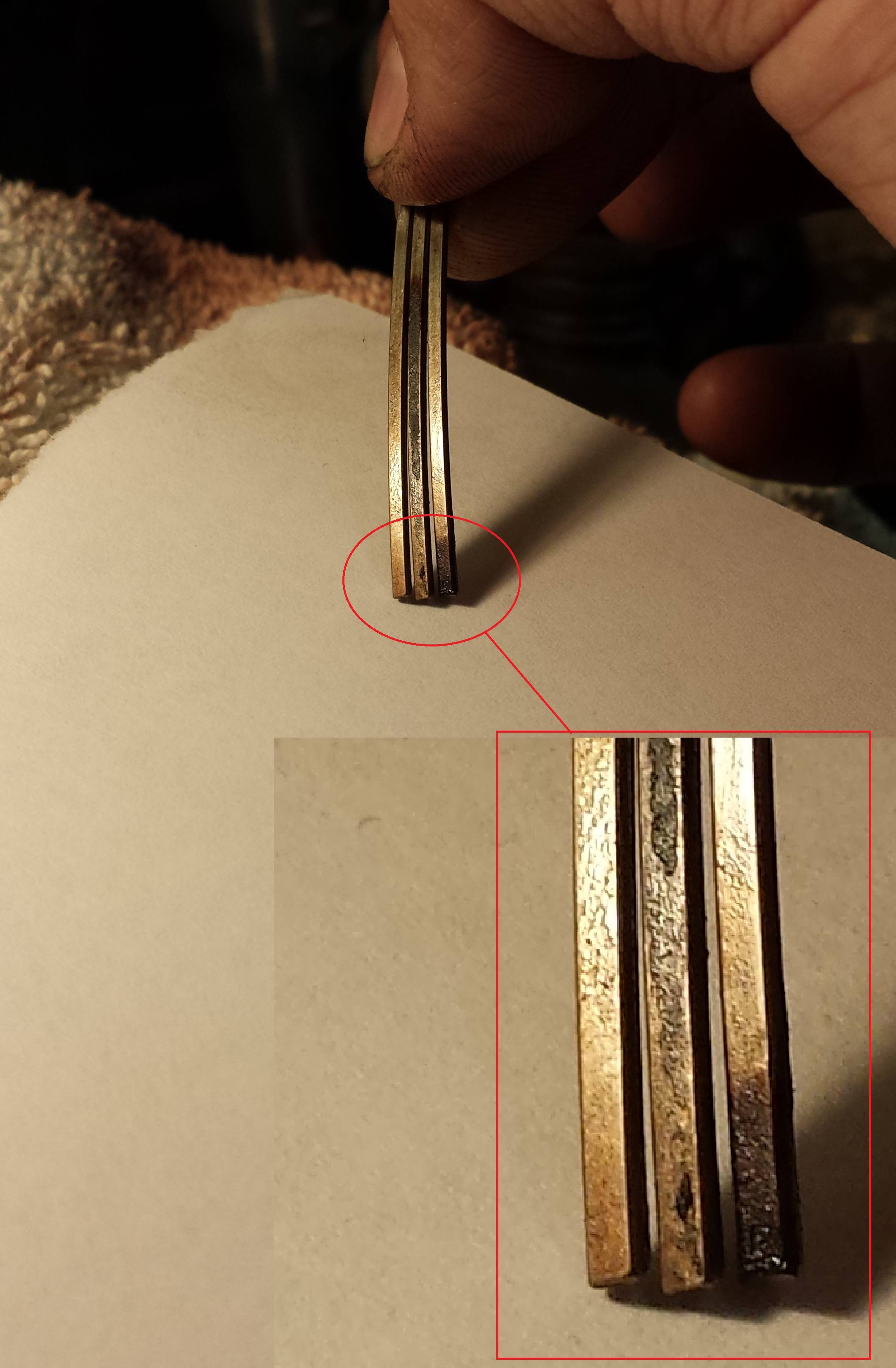

Guess which apex seal spring came from the slot by the sticky corner seal:
One of these corners is not like the others...
This is what good sealing looks like:
And this is what a sticking corner seal look like:
Guess which apex seal spring came from the slot by the sticky corner seal:
