does anyone have a picture of the kick panel fuse box? s5

I looked in the FAQ's but the picture link doesn't work and it only shows s4. Its a 1990 NA. Any help is appreciated.
Reply
Old Jul 23, 2012 | 09:11 PM
  #2
misterstyx69's Avatar
Retired Moderator, RIP
Tenured Member: 20 Years
iTrader: (142)

Joined: Sep 2005
Posts: 25,581
Likes: 136
From: Smiths Falls.(near Ottawa!.Mapquest IT!)
s5 is basically the same.The only difference is the engine bay fuse block has a 100 amp fuse instead of a 80.
what exactly are you looking for?
Reply
Old Jul 24, 2012 | 01:58 PM
  #3
HAILERS2's Avatar
Rotary Freak

Joined: Jul 2008
Posts: 1,660
Likes: 2
From: FORT WORTH TEXAS
B

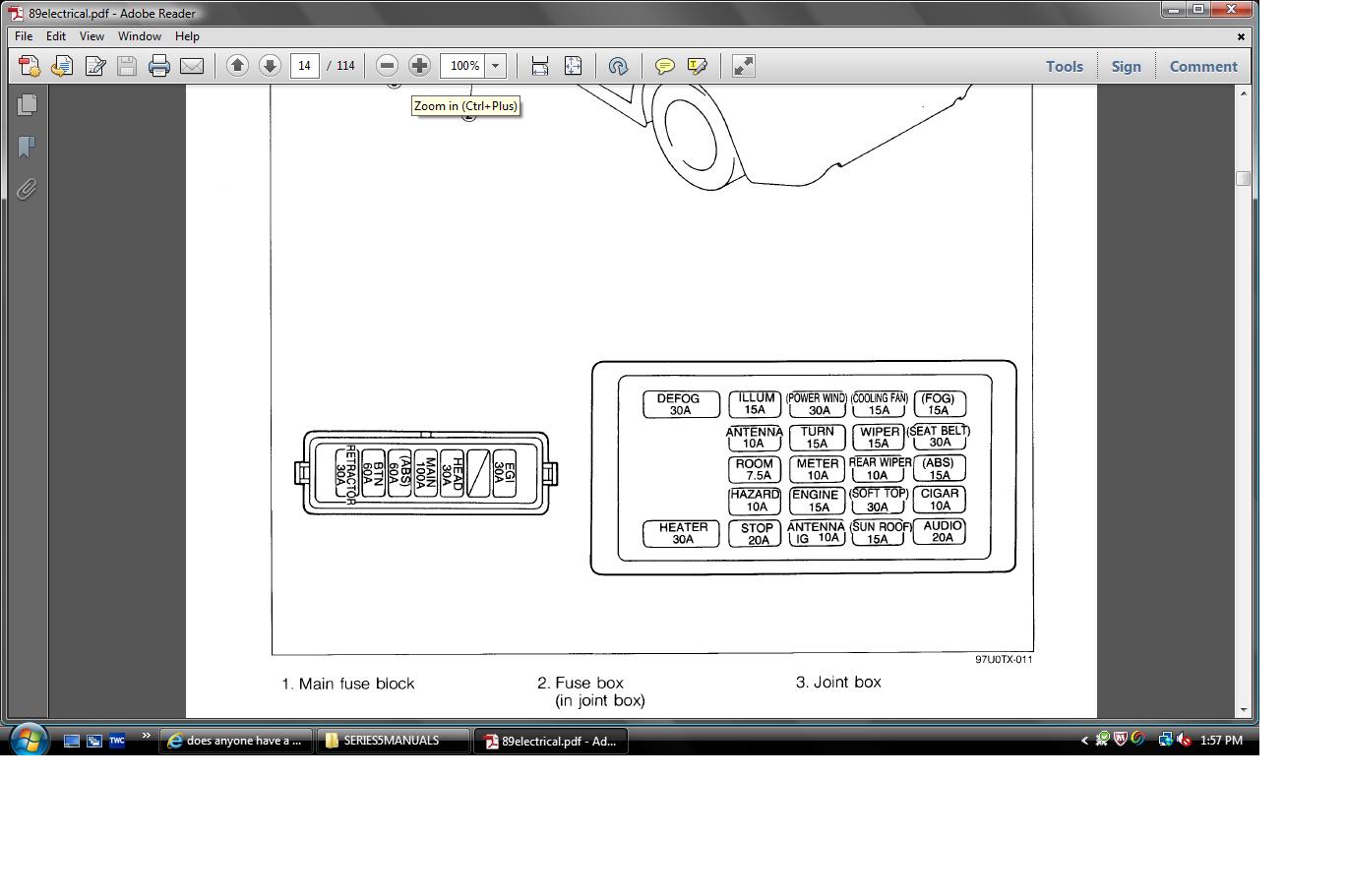

Attached Thumbnails does anyone have a picture of the kick panel fuse box? s5-afuseb0xseriesfive.jpg
