hi guys!

simple question...

are there ANY differences with the PLUGS themself between the jdm, usdm, eudm ecus?

i have to know this because i want to order an extension harness for my 87TII and need to know if the JDM harness will plug between my eudm harness/ecu

big thx for answers



If you don't get a straight answer, I'll scan the three plugs of a USA ECU so you can match the dimensions with your EU plugs. I can write down the dimensions of each plug if needed.

I know it's just the plugs themselves your interested in and not how the plugs are wired for different versions. Talking just series four, ECU plugs.



that would be great !!!!!!!!!!!!!

i think if the usdm and eudm plugs are the same, also the japanes plugs should be the same...
maybe anybody here on the forum who can do the same like hailers with a J-Spec ecu?

then i would also do this for my EUDM ecus...

maybe its something for the archive, also have a shop where you can get this harnesses for the FC series 4 and 5 (when the plugs are the same )

exactly

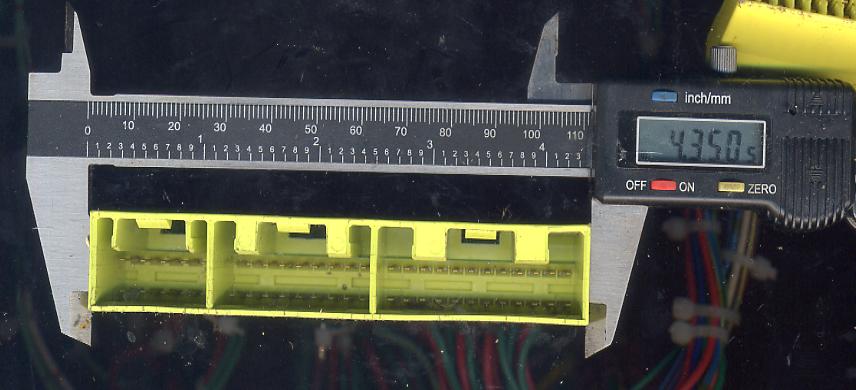

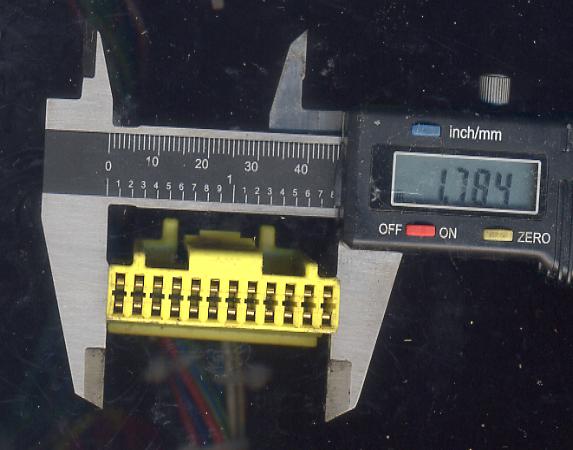

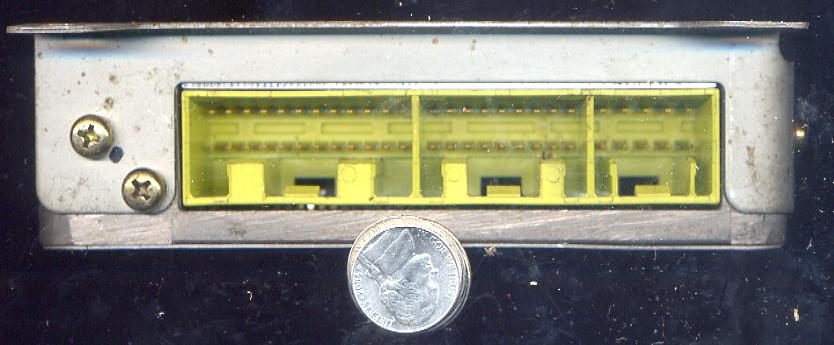

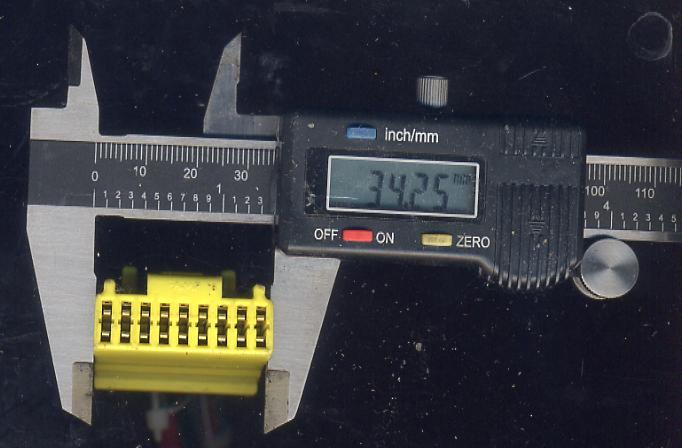

I'd bet the farm that the JDM and USA plugs are exactly the same. It's the EU that I'd have doubts about. Talking series four. Jpgs attached.



They are all the same.
Zenki versus Kouki is different.


-Ted



big thx guys!!!!

they really loke like my plugs in my car... wil check that at the weekend and post pics

thx for the fast help
