differences in s4 and s5 turbo

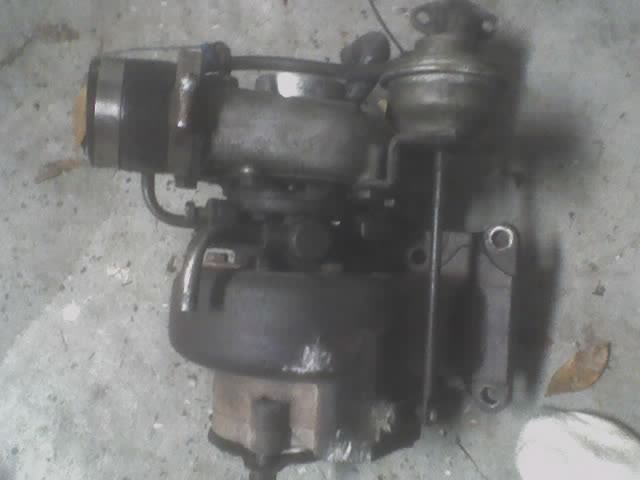

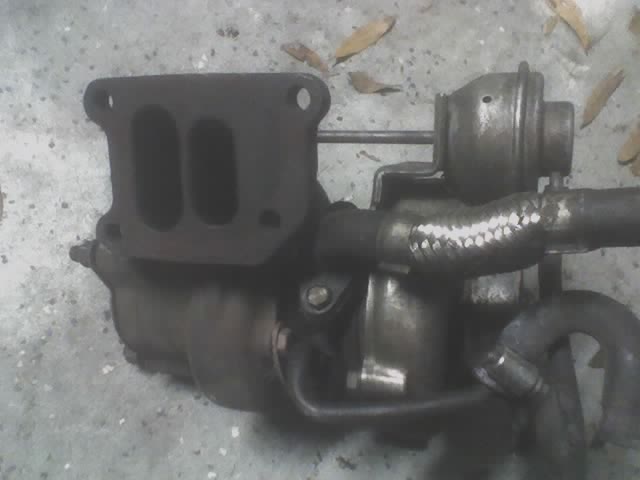

i was just wondering what the cosmetic differences of the s4 and s5 turbos are. I am not sure if my current turbo is an s4 or s5. any pics will help as well. here are pics of my turbo
Attached Thumbnails differences in s4 and s5 turbo-turbooo.jpg   differences in s4 and s5 turbo-turboo.jpg
fc3sfreek is offline
Reply Like
Old 03-11-06, 12:59 AM
  #2
my fc broke


1SxyRXy's Avatar

Join Date: Feb 2003
Location: rohnert park,CA/ bay area
Posts: 2,231
Likes: 0
Received 0 Likes on 0 Posts
s5 bigger no twin scroll. looks like you have an s5
1SxyRXy is offline
Reply Like
Old 03-11-06, 01:01 AM
  #3
Lives on the Forum


RETed's Avatar

Join Date: Feb 2001
Location: n
Posts: 26,664
Likes: 0
Received 16 Likes on 15 Posts
It's an S4.

http://fc3spro.com/TECH/FAQ/ZVK/zvk.html
Bottom of page...


-Ted
RETed is offline
Reply Like
Old 03-11-06, 01:25 AM
  #4
Rotary Enthusiast


rick_tj's Avatar

Join Date: Mar 2005
Location: Ontario
Posts: 940
Likes: 0
Received 0 Likes on 0 Posts
Yeah, its an S4. You can tell by the mis-matched exhaust ports on the hotside.
rick_tj is offline
Reply Like
Old 03-11-06, 04:44 AM
  #5
Moderator

iTrader: (5)

Funkspectrum's Avatar

Join Date: May 2003
Location: Santa Rosa, CA
Posts: 4,682
Received 17 Likes on 14 Posts
S4 just to reiterate the obviousness of this answer
Funkspectrum is offline
Reply Like
Old 03-11-06, 05:51 AM
  #6
MODERATOR


iTrader: (137)

Alex Rodriguez's Avatar

Join Date: Jan 2005
Location: Houston Texas
Posts: 6,441
Received 9 Likes on 8 Posts
omee look in the back where the wastegate is at if it has 1 port its an s4 if it has 2 its an s5

damn lil cousin clean that turbo or sell it to me
Alex Rodriguez is offline
Reply Like
