Cosmo PIN connector into S5 TII harness
#1
Cosmo PIN connector into S5 TII harness
Alright, I'm down to the TPS. I need to move my car within the next few days and this is the last thing I need to do. I don't have the time for a standalone right now because of other financial reasons but I will get one in a month or two.
I need to know which 3 or 4 wires from the S5 TII TPS pins do I splice with the 4 Cosmo TPS pins.
I know the TPS has one power, one ground, and two signal wires (narrow, full). But there isn't much information on the Cosmo TPS. I've tried searching and there's too much misinformation on the Cosmo TPS. I read the Cosmo is the same as the FD, then I read the Cosmo is the same but colors are labelled differently, and etc...
I know people have done this. Can anyone chime in and help?

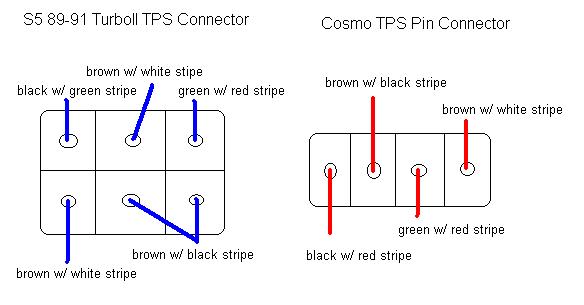

I drew out the S5 and the Cosmo TPS pin connectors.
I need to know which 3 or 4 wires from the S5 TII TPS pins do I splice with the 4 Cosmo TPS pins.
I know the TPS has one power, one ground, and two signal wires (narrow, full). But there isn't much information on the Cosmo TPS. I've tried searching and there's too much misinformation on the Cosmo TPS. I read the Cosmo is the same as the FD, then I read the Cosmo is the same but colors are labelled differently, and etc...
I know people have done this. Can anyone chime in and help?
I drew out the S5 and the Cosmo TPS pin connectors.
#2
Senior Member
Join Date: Mar 2001
Location: NJ
Posts: 379
Likes: 0
Received 0 Likes
on
0 Posts
https://www.rx7club.com/showthread.p...ghlight=fd+tps
That should answer your question . If i doesn't when i get home tomorrow i can dig up the information , i have it written down somewhere .
That should answer your question . If i doesn't when i get home tomorrow i can dig up the information , i have it written down somewhere .
#3
Senior Member
Join Date: Mar 2001
Location: NJ
Posts: 379
Likes: 0
Received 0 Likes
on
0 Posts
Hailers answered this question in a thread with pictures , i've been trying to find it for a while now but i haven't had any luck . I will keep looking b/c thats where i got my information from .
It wasnt hailers im still looking though , if anything when i get home tomorrow i'll pm you with what i think is accurate .
It wasnt hailers im still looking though , if anything when i get home tomorrow i'll pm you with what i think is accurate .
