Coolant Flow and S4 NA Center Iron Compatability
Quick question for the rotary experts around these parts. I just bought a fairly low mileage S4 NA motor that I am building for a turbo. I am keeping the stock rotors and housings and replacing the 6 port front and rear iron with turbo 4 ports.

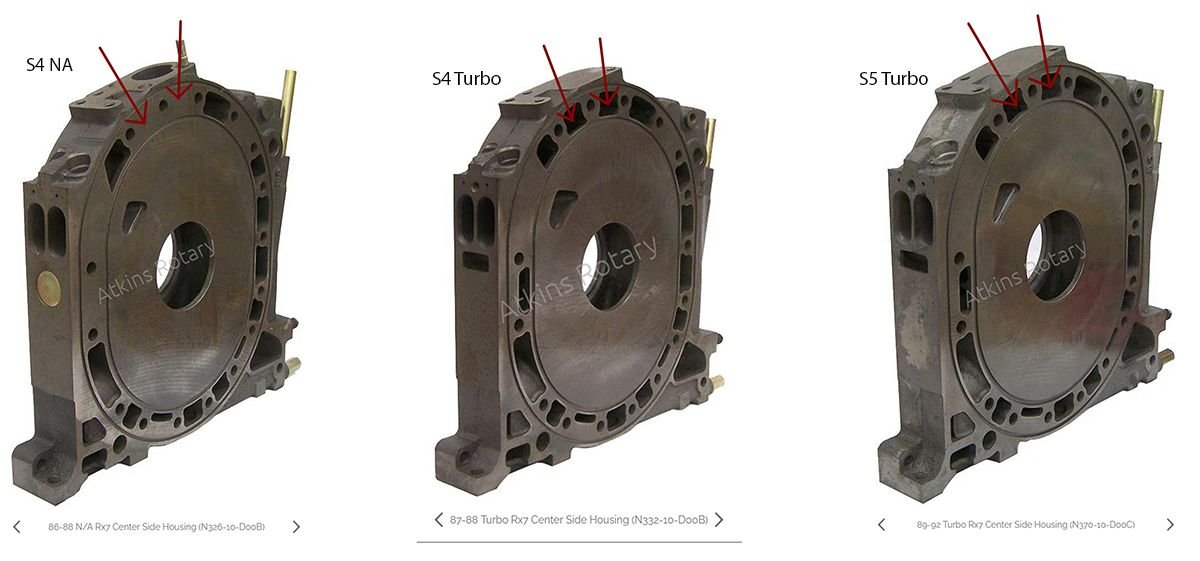

My question is regarding the center iron and its compatibility with a turbo setup. I have read that you can use the NA center iron on a turbo motor if you enlarge the port correctly and drill & tap an extra hole for the manifold. This sounds reasonable to me aside from the weird S4 NA canter iron with the EGR cavity that blocks 2 of the main coolant passages near the top on the irons (red arrows in the picture). Since it is only in the intake area, it should be a cooler part of the motor, but I still feel it would reduce the cooling capabilities of my motor.
Has anyone ever had any experience running a S4 NA center iron in a turbo, and if so did you have issues with coolant temps?
My question is regarding the center iron and its compatibility with a turbo setup. I have read that you can use the NA center iron on a turbo motor if you enlarge the port correctly and drill & tap an extra hole for the manifold. This sounds reasonable to me aside from the weird S4 NA canter iron with the EGR cavity that blocks 2 of the main coolant passages near the top on the irons (red arrows in the picture). Since it is only in the intake area, it should be a cooler part of the motor, but I still feel it would reduce the cooling capabilities of my motor.
Has anyone ever had any experience running a S4 NA center iron in a turbo, and if so did you have issues with coolant temps?
#2
Rotary Freak
I don't have the answer to your question, but I'm also interested in finding out.
Secondary question though in case someone who has tried it sees this; Assuming you don't need EGR functionality, could you block off the port up top and the one on bottom (IIRC) and then drill out the coolant passage areas and grind to match the TII version?
Secondary question though in case someone who has tried it sees this; Assuming you don't need EGR functionality, could you block off the port up top and the one on bottom (IIRC) and then drill out the coolant passage areas and grind to match the TII version?
#3
Full Member
I was in the opposite boat as you, but FWIW here's my experience. I was rebuilding my S4 NA and I found a chip in the coolant seal groove on the center iron. The only iron that was available was a S5 Turbo center iron so my engine is all S4 parts except for the S5 turbo center iron. I noticed the difference in coolant passages too, but I figured that the extra cooling wouldn't hurt my case.
I understand that you might have diminished cooling so I get your concern, but as far as compatibility to whether it will run, you will have no issues. That being said, there are plenty of turbo-NA engines that still use the stock NA irons with the blocked coolant packages from factory. As long as you have good tuning and a good cooling system, I don't think you'll have any cooling issues on the street. Harding racing is another issue though.
I understand that you might have diminished cooling so I get your concern, but as far as compatibility to whether it will run, you will have no issues. That being said, there are plenty of turbo-NA engines that still use the stock NA irons with the blocked coolant packages from factory. As long as you have good tuning and a good cooling system, I don't think you'll have any cooling issues on the street. Harding racing is another issue though.
#4
Full Member
Thread Starter
iTrader: (3)
Join Date: Jul 2012
Location: Kansas
Posts: 126
Likes: 0
Received 0 Likes
on
0 Posts
I was in the opposite boat as you, but FWIW here's my experience. I was rebuilding my S4 NA and I found a chip in the coolant seal groove on the center iron. The only iron that was available was a S5 Turbo center iron so my engine is all S4 parts except for the S5 turbo center iron. I noticed the difference in coolant passages too, but I figured that the extra cooling wouldn't hurt my case.
I understand that you might have diminished cooling so I get your concern, but as far as compatibility to whether it will run, you will have no issues. That being said, there are plenty of turbo-NA engines that still use the stock NA irons with the blocked coolant packages from factory. As long as you have good tuning and a good cooling system, I don't think you'll have any cooling issues on the street. Harding racing is another issue though.
I understand that you might have diminished cooling so I get your concern, but as far as compatibility to whether it will run, you will have no issues. That being said, there are plenty of turbo-NA engines that still use the stock NA irons with the blocked coolant packages from factory. As long as you have good tuning and a good cooling system, I don't think you'll have any cooling issues on the street. Harding racing is another issue though.
I don't have the answer to your question, but I'm also interested in finding out.
Secondary question though in case someone who has tried it sees this; Assuming you don't need EGR functionality, could you block off the port up top and the one on bottom (IIRC) and then drill out the coolant passage areas and grind to match the TII version?
Secondary question though in case someone who has tried it sees this; Assuming you don't need EGR functionality, could you block off the port up top and the one on bottom (IIRC) and then drill out the coolant passage areas and grind to match the TII version?
