Which color wire connects to this valve??
09-08-10, 04:54 AM
#1
Which color wire connects to this valve??
I need help in determining the color of the connector that connects to the Air Supply Valve on an S4 T2. Its located on the back of the UIM and is not to be mistaken with the Air Bypass Solenoid Valve located on top of the manifold. I only ask because there are two connectors in the same area that match the plug. I'm pretty sure that one is for the air bypass solenoid valve, but it broke so I just deleted it. But now I'm just not sure which color wire it is. Someone please help.

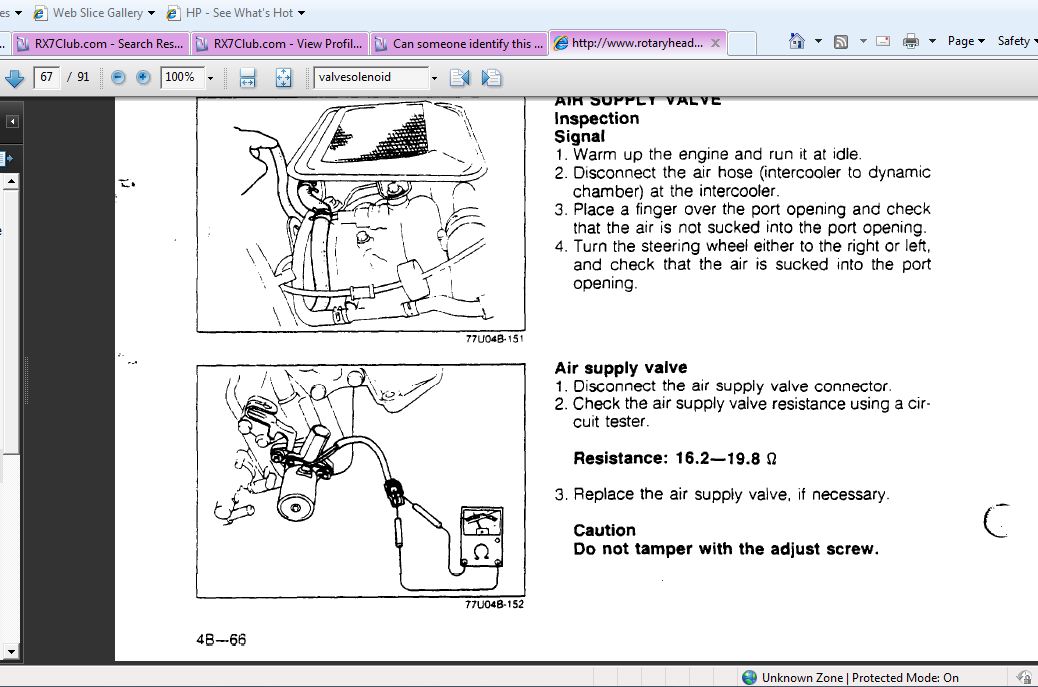

I've attached a picture to be even more clear.
I've attached a picture to be even more clear.
